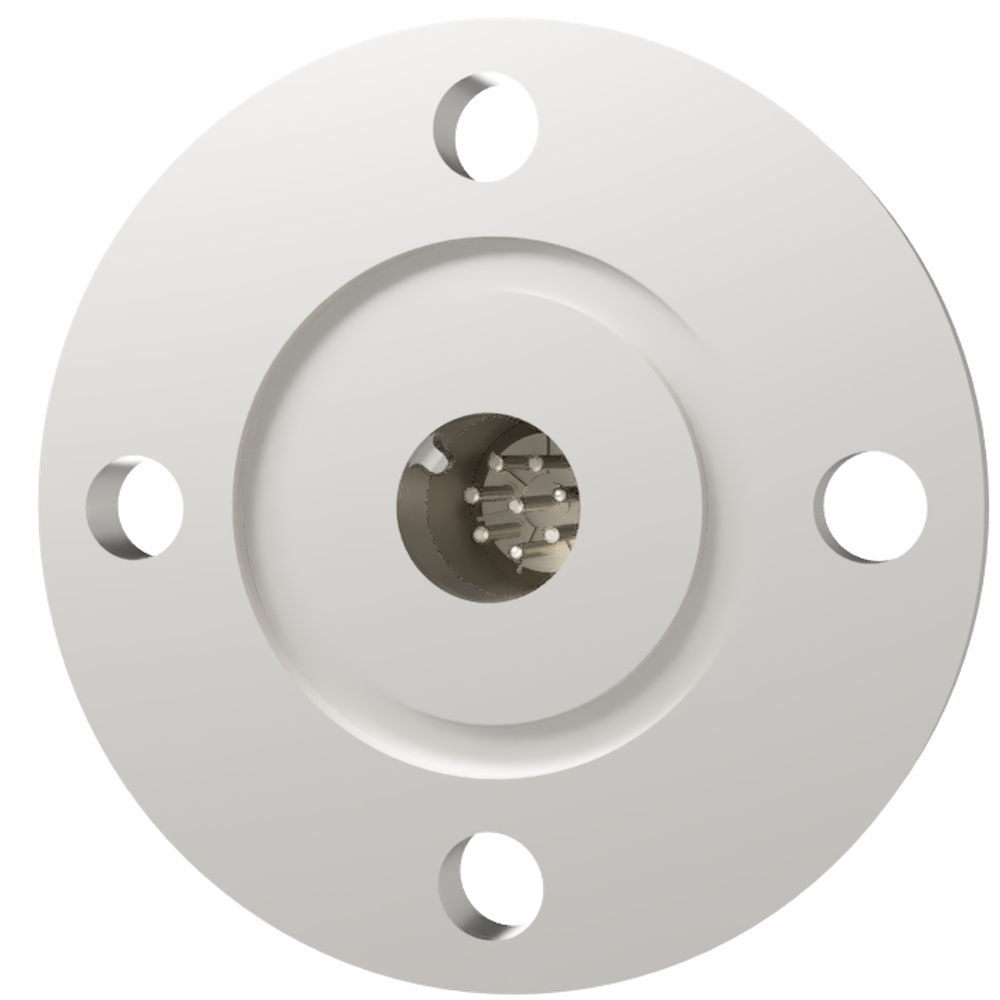

K thermocouple BURNDY 2-pair current induction terminal 4PIN VG25 flange Guided

K熱電対 BURNDY 2対 電流導入端子4PIN VG25 フランジ ガイド付き

Mouse over the image to enlarge it

K熱電対 BURNDY 2対 電流導入端子4PIN VG25 フランジ ガイド付き
share the productshare the product
Facebook
LINE
Twitter
Product code :40931 Model:G25TCK2WP4GA

▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.

▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning request, please click here.

Basic Information
The number of electrode 4
Pairs of Thermocouple 2
type K Thermocouple / cable termina
Electric current / 1 pc. 20 A
Total current/1 terminal Milli
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Chromel ® / alumel ® / oxygen-
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
40931
G25TCK2WP4GA
- - - 25 90 8 45 Only flanged terminal
K熱電対 BURNDY 2対 電流導入端子4PIN VG25 フランジ ガイド付き admin.label.item.size_image
NW/KF ICF VF VG A B D The contents of goods
- - - 25 90 8 45 Only flanged terminal
K thermocouple BURNDY 2-pair current induction terminal 4PIN VG25 flange Guided
Product code :40931    Model:G25TCK2WP4GA
Contact Us

Filter by model

フランジ

商品内容

K熱電対 BURNDY 2対 電流導入端子4PIN VG25 フランジ ガイド付き admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***TCK2WP4G 1個
真空側PEEKインサート 16320 VSPI8GA 1個
大気側プラグ 10016 ASP8 1個
アルメル ソケットコンタクト 15759 SVC16ALA 4本
クロメル ソケットコンタクト 15758 SVC16CHA 4本
ソケットコンタクト 10147 SVC16 10本/1組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
NW16 → N16
NW25 → N25
NW40 → N40
ICF34 → C34
ICF70 → C70
熱電対タイプのアセンブリ方法は以下の画像をクリックしてください。
熱電対_アセンブリ方法
