Connecting parts Thermocouple K type (combination)

Connecting parts Thermocouple K type (combination)

▼Thermocouple K type Atmosphere side plug + Socket contact + Cable
For combination type K type thermocouple 1 pair + compensating conductor for atmospheric side for current induction 2PIN ASSY item
Ready to use immediately after arrival due to preassembled.
For thermocouple: glass coating, for copper electrode: polyethylene coating
Length: 1000, 2500, 5000

▼ Options
We can change the coating and the length of the cable. We can also perform assembly processing on supplied cables. Please contact us by clicking the "Inquiry" button on the right side of this page.

Click here to request precision cleaning.

see next
Basic Information
type Thermocouple type K
Withstand voltage: DC 300 V
Electric current / 1 pc. 7 A
Wire / cable diameter (K type) 0.5sq (current introd
Cable sheathing (K type) glass (current lead)
shell Aluminum alloy
Insulator Glass filled phenolic resin (U
Maximum temperature 60℃
The lowest temperature -20℃
Vacuum and Air For the atmosphere
RoHS2 corresponding ○
Inquiry for this subcategory

We have 6 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

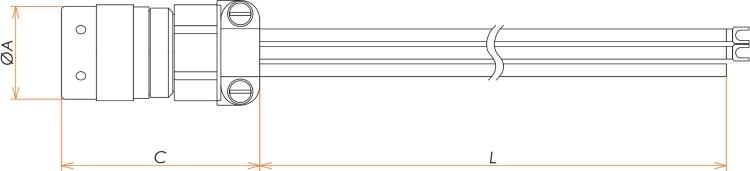

 A C L The number of electrode Pairs of Thermocouple
Stock & Delivery
front.product.price
front.product.tax_included2
14581
ACMG1000X/4
21.4 49 1000 2 1
16725
ACMG2500X/4
21.4 49 2500 2 1
15742
ACMG5000X/4
21.4 49 5000 2 1
14582
ACMG1000X/8
24.7 51 1000 4 2
16726
ACMG2500X/8
24.7 51 2500 4 2
15746
ACMG5000X/8
24.7 51 5000 4 2
A C L The number of electrode Pairs of Thermocouple
To detail page Contact Us

Filter by model

stock status

L

The number of electrode

Pairs of Thermocouple

接続部品 熱電対 Kタイプ(コンビ) 大気側プラグ+ソケットコンタクト+ケーブル admin.label.item.catalog_image

ピン配列
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
