Calcium Fluoride (CaF2) Product List Viewport
Subcategory 1Matter (1 ~1 )
-
Flange material SUS 304 window Calcium fluoride Maximum temperature 200℃ The lowest temperature -100℃ RoHS2 corresponding ○
Products 3Matter (1 ~3 )
- Displayed results
- Display switching
-
Product code :27359
Model:ICF34VPCFA▼ Viewport Calcium fluoride (CaF2)
Borosilicate glass/Duran®: for visual inspection inside the chamber
Materials such as quartz and sapphire are available for optical use
※Please note that calcium fluoride windows are easily scratched
▼ The following types are standardized
Flanges: NW/KF, ICF, JIS-VF, JIS-VG, CeFiX®, Sanitary
Window materials are Borosilicate glass, Borosilicate glass Sapphire (Al2O3),.
Fused silica (SiO2),.
Synthetic Quartz ( SiO2),.
Magnesium Fluoride (MgF2),.
Calcium Fluoride (CaF2),
Barium Fluoride(BaF2)
Germanium (Ge),.
Zinc Selenide (ZnSe),.
lead glass as standard products.
Non-magnetic flanges (titanium, SUS316L) are also available.
Viewports that can be opened and closed (list) are also available.
▼Options (ICF flange only)
Viewport cover (List)
Viewport Shutter(List)
▼Custom-made products are also available.
We can change the window material and flange size. AR coating is also available. Please contact us by clicking the "Inquiry" button on the right side of the page.
※When requesting AR coating, please let us know the wavelength used, and if laser resistance is required, please let us know the details of the laser to be used.Flange material SUS 304 window Calcium fluoride Maximum temperature 200℃ The lowest temperature -100℃ RoHS2 corresponding ○ ICF 34 A 34 H 14.7 T (glass thickness) 2 V (effective diameter) 10.9 -

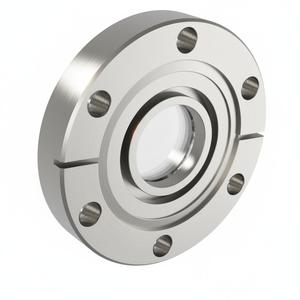

Product code :26467
Model:ICF70VPCFA▼ Viewport Calcium fluoride (CaF2)
Borosilicate glass/Duran®: for visual inspection inside the chamber
Materials such as quartz and sapphire are available for optical use
※Please note that calcium fluoride windows are easily scratched
▼ The following types are standardized
Flanges: NW/KF, ICF, JIS-VF, JIS-VG, CeFiX®, Sanitary
Window materials are Borosilicate glass, Borosilicate glass Sapphire (Al2O3),.
Fused silica (SiO2),.
Synthetic Quartz ( SiO2),.
Magnesium Fluoride (MgF2),.
Calcium Fluoride (CaF2),
Barium Fluoride(BaF2)
Germanium (Ge),.
Zinc Selenide (ZnSe),.
lead glass as standard products.
Non-magnetic flanges (titanium, SUS316L) are also available.
Viewports that can be opened and closed (list) are also available.
▼Options (ICF flange only)
Viewport cover (List)
Viewport Shutter(List)
▼Custom-made products are also available.
We can change the window material and flange size. AR coating is also available. Please contact us by clicking the "Inquiry" button on the right side of the page.
※When requesting AR coating, please let us know the wavelength used, and if laser resistance is required, please let us know the details of the laser to be used.Flange material SUS 304 window Calcium fluoride Maximum temperature 200℃ The lowest temperature -100℃ RoHS2 corresponding ○ ICF 70 A 70 H 12.7 T (glass thickness) 2.5 V (effective diameter) 22.9 -

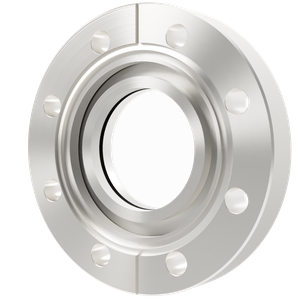

Product code :22864
Model:ICF114VPCFA▼ Viewport Calcium fluoride (CaF2)
Borosilicate glass/Duran®: for visual inspection inside the chamber
Materials such as quartz and sapphire are available for optical use
※Please note that calcium fluoride windows are easily scratched
▼ The following types are standardized
Flanges: NW/KF, ICF, JIS-VF, JIS-VG, CeFiX®, Sanitary
Window materials are Borosilicate glass, Borosilicate glass Sapphire (Al2O3),.
Fused silica (SiO2),.
Synthetic Quartz ( SiO2),.
Magnesium Fluoride (MgF2),.
Calcium Fluoride (CaF2),
Barium Fluoride(BaF2)
Germanium (Ge),.
Zinc Selenide (ZnSe),.
lead glass as standard products.
Non-magnetic flanges (titanium, SUS316L) are also available.
Viewports that can be opened and closed (list) are also available.
▼Options (ICF flange only)
Viewport cover (List)
Viewport Shutter(List)
▼Custom-made products are also available.
We can change the window material and flange size. AR coating is also available. Please contact us by clicking the "Inquiry" button on the right side of the page.
※When requesting AR coating, please let us know the wavelength used, and if laser resistance is required, please let us know the details of the laser to be used.Flange material SUS 304 window Calcium fluoride Maximum temperature 200℃ The lowest temperature -100℃ RoHS2 corresponding ○ ICF 114 A 114 H 17.5 T (glass thickness) 3.8 V (effective diameter) 47.5
