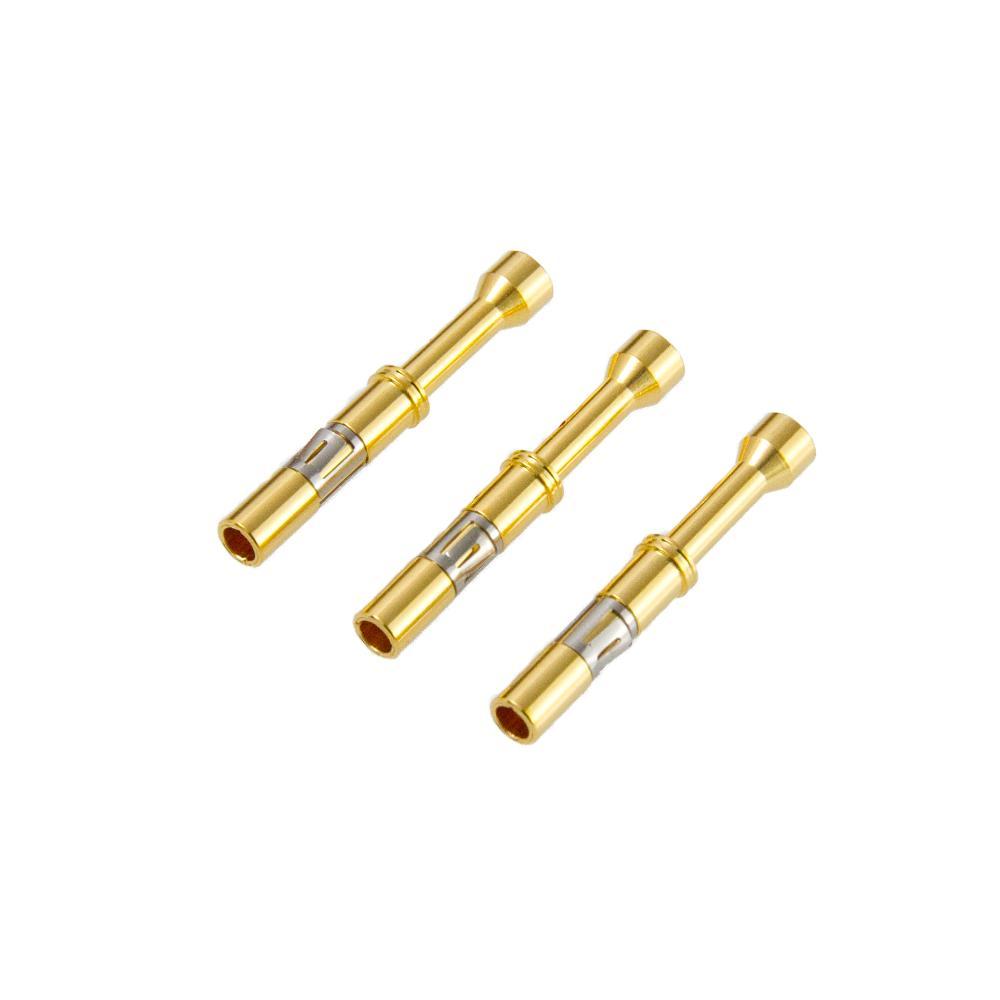

Connection parts crimp type 10 pieces for socket contact φ1.6

接続部品 ソケットコンタクト φ1.6 用 圧着タイプ 10本入

Mouse over the image to enlarge it

接続部品 ソケットコンタクト φ1.6 用 圧着タイプ 10本入
share the productshare the product
Facebook
LINE
Twitter
Product code :10147 Model:SVC16

▼ Socket Contacts/Pin Contacts
For connecting electrodes and cables
A wide range of lineup for various electrode diameters
Starting with "S" : Female contacts
Starting with "P" : Male contacts (crimp type only)
SVC*, PVC*: For both vacuum and atmospheric side
SAC*: For atmospheric side

▼The following types are standardized
Crimp type
Push-on type
Push-on type ・Barrel type

▼Options
Crimping and assembly of cables are available upon request. Please contact us from the "Inquiry" button on the right side of the page.
Crimping tools etc. are here.

For precision cleaning requests, click here.

Basic Information
Classification Peripheral components
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A B C shape type Applicable wire size Electric current / 1 pc. Quantity contact screw Maximum temperature The lowest temperature
Stock & Delivery
front.product.price
front.product.tax_included2
10147
SVC16
- - - socket Crimp 0.8 MAX.(#20) 11 A 10 Beryllium copper + gold-plated - 250℃ -196℃
接続部品 ソケットコンタクト φ1.6 用 圧着タイプ 10本入 admin.label.item.size_image
A B C shape type Applicable wire size Electric current / 1 pc. Quantity contact screw Maximum temperature The lowest temperature
- - - socket Crimp 0.8 MAX.(#20) 11 A 10 Beryllium copper + gold-plated - 250℃ -196℃
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147    Model:SVC16
