Feedthrough thermocouple type K BURNDY® Combinatio

Feedthrough thermocouple type K BURNDY® Combinatio

▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.

▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning request, please click here.

see next
Basic Information
The number of electrode 4
Pairs of Thermocouple 2
type K Thermocouple / cable termina
Electric current / 1 pc. 20 A
Total current/1 terminal Milli
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Chromel ® / alumel ® / oxygen-
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this subcategory

We have 24 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

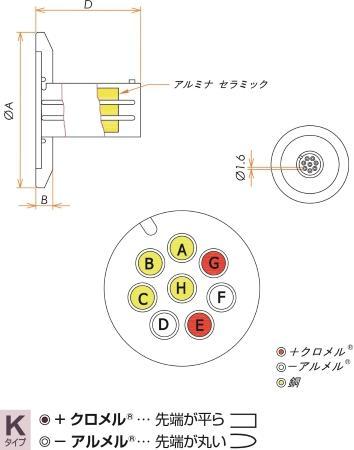

 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
14686
N25TCK2WP4G
25 - - - 40 6 39 Only flanged terminal
stock
5 1-2 Business Days
When out of stock
Answered later
160,700JPY (with tax 176,770JPY)
16454
N25TCK2WP4GUT1A
25 - - - 40 6 39 Assembled set
stock
5 1-2 Business Days
When out of stock
Answered later
228,000JPY (with tax 250,800JPY)
14687
N40TCK2WP4G
40 - - - 55 6 39 Only flanged terminal
stock
11 1-2 Business Days
When out of stock
Answered later
161,000JPY (with tax 177,100JPY)
16455
N40TCK2WP4GUT1A
40 - - - 55 6 39 Assembled set
stock
11 1-2 Business Days
When out of stock
Answered later
228,300JPY (with tax 251,130JPY)
40917
C34TCK2WP4GA
- 34 - - 34 7.5 44.5 Only flanged terminal
stock
4 1-2 Business Days
When out of stock
21 Business Days
161,300JPY (with tax 177,430JPY)
40918
C34TCK2WP4GUT1B
- 34 - - 34 7.5 44.5 Assembled set
stock
4 1-2 Business Days
When out of stock
21 Business Days
228,600JPY (with tax 251,460JPY)
40919
C70TCK2WP4GA
- 70 - - 70 12 49 Only flanged terminal
stock
4 1-2 Business Days
When out of stock
21 Business Days
162,100JPY (with tax 178,310JPY)
40920
C70TCK2WP4GUT1B
- 70 - - 70 12 49 Assembled set
stock
4 1-2 Business Days
When out of stock
21 Business Days
229,400JPY (with tax 252,340JPY)
40921
F20TCK2WP4GA
- - 20 - 80 8 45 Only flanged terminal
When out of stock
21 Business Days
192,200JPY (with tax 211,420JPY)
40922
F20TCK2WP4GUT1B
- - 20 - 80 8 45 Assembled set
When out of stock
21 Business Days
259,500JPY (with tax 285,450JPY)
40923
F25TCK2WP4GA
- - 25 - 90 8 45 Only flanged terminal
When out of stock
21 Business Days
192,500JPY (with tax 211,750JPY)
40924
F25TCK2WP4GUT1B
- - 25 - 90 8 45 Assembled set
When out of stock
21 Business Days
259,800JPY (with tax 285,780JPY)
40925
F40TCK2WP4GA
- - 40 - 105 10 47 Only flanged terminal
When out of stock
21 Business Days
193,100JPY (with tax 212,410JPY)
40926
F40TCK2WP4GUT1B
- - 40 - 105 10 47 Only flanged terminal
When out of stock
21 Business Days
260,400JPY (with tax 286,440JPY)
40927
F50TCK2WP4GA
- - 50 - 120 10 47 Only flanged terminal
When out of stock
Answered later
193,700JPY (with tax 213,070JPY)
40928
F50TCK2WP4GUT1B
- - 50 - 120 10 47 Assembled set
When out of stock
Answered later
261,000JPY (with tax 287,100JPY)
40929
G20TCK2WP4GA
- - - 20 80 8 45 Only flanged terminal
When out of stock
21 Business Days
192,200JPY (with tax 211,420JPY)
40930
G20TCK2WP4GUT1B
- - - 20 80 8 45 Assembled set
When out of stock
21 Business Days
259,500JPY (with tax 285,450JPY)
40931
G25TCK2WP4GA
- - - 25 90 8 45 Only flanged terminal
When out of stock
Answered later
192,500JPY (with tax 211,750JPY)
40932
G25TCK2WP4GUT1B
- - - 25 90 8 45 Assembled set
When out of stock
Answered later
259,800JPY (with tax 285,780JPY)
40933
G40TCK2WP4GA
- - - 40 105 10 47 Only flanged terminal
When out of stock
21 Business Days
193,100JPY (with tax 212,410JPY)
40934
G40TCK2WP4GUT1B
- - - 40 105 10 47 Assembled set
When out of stock
21 Business Days
260,400JPY (with tax 286,440JPY)
40935
G50TCK2WP4GA
- - - 50 120 10 47 Only flanged terminal
When out of stock
21 Business Days
193,700JPY (with tax 213,070JPY)
40936
G50TCK2WP4GUT1B
- - - 50 120 10 47 Assembled set
When out of stock
21 Business Days
261,000JPY (with tax 287,100JPY)
NW/KF ICF VF VG A B D The contents of goods
To detail page Contact Us

Filter by model

stock status

Flange

The contents of goods

フィードスルー 熱電対 Kタイプ BURNDY®コンビネーション 2対-4PIN admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***TCK2WP4G 1個
真空側PEEKインサート 16320 VSPI8GA 1個
大気側プラグ 10016 ASP8 1個
アルメル ソケットコンタクト 15759 SVC16ALA 4本
クロメル ソケットコンタクト 15758 SVC16CHA 4本
ソケットコンタクト 10147 SVC16 10本/1組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
