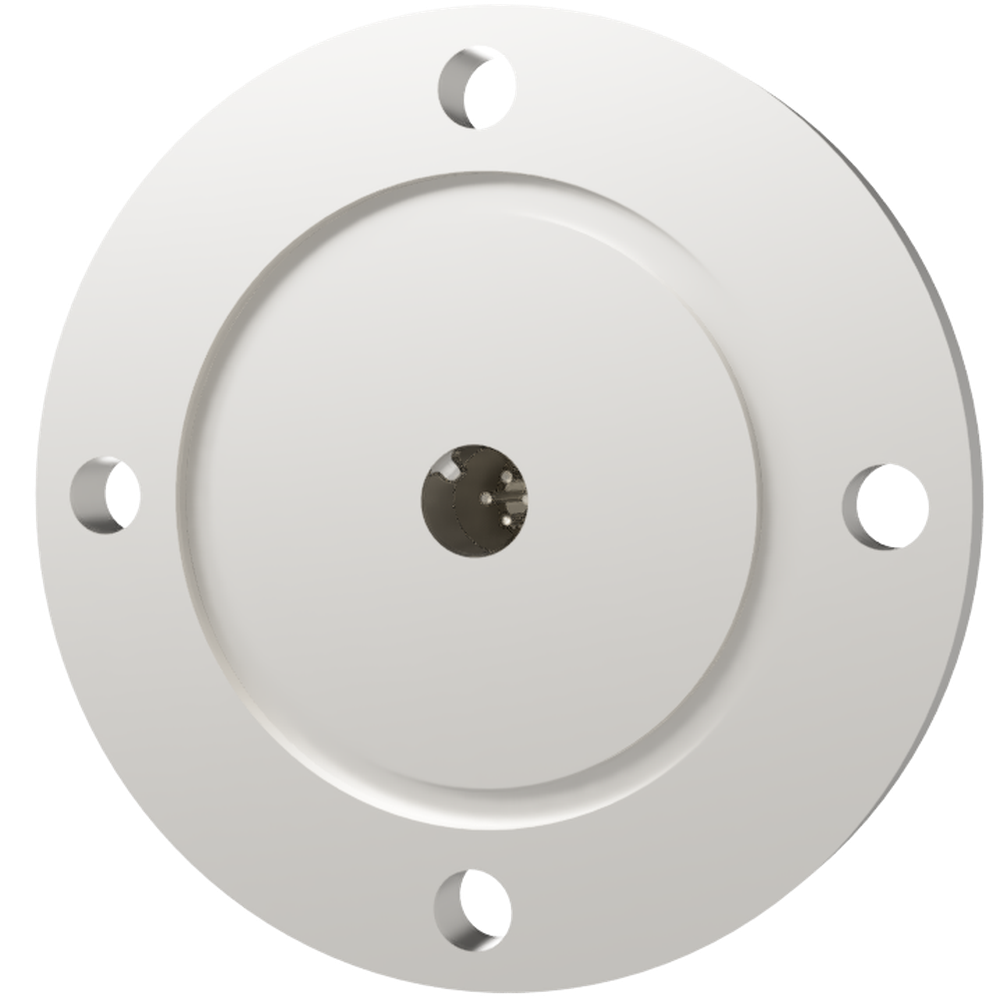

K Thermocouple BURNDY 1 Pair Current Induction Terminal 2PIN VG50 Flange Guided

K熱電対 BURNDY 1対 電流導入端子2PIN VG50 フランジ ガイド付き

Mouse over the image to enlarge it

K熱電対 BURNDY 1対 電流導入端子2PIN VG50 フランジ ガイド付き
share the productshare the product
Facebook
LINE
Twitter
Product code :40911 Model:G50TCK1WP2GA

▼ Thermocouple BURNDY K type 1 pair + current induction terminal 2PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/for the atmospheric side)
*Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.

▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning request, please click here.

Basic Information
The number of electrode 2
Pairs of Thermocouple 1
type K Thermocouple / cable termina
Electric current / 1 pc. 20 A
Total current/1 terminal Milli
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Chromel ® / alumel ® / oxygen-
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
40911
G50TCK1WP2GA
- - - 50 120 10 47 Only flanged terminal
K熱電対 BURNDY 1対 電流導入端子2PIN VG50 フランジ ガイド付き admin.label.item.size_image
NW/KF ICF VF VG A B D The contents of goods
- - - 50 120 10 47 Only flanged terminal
K Thermocouple BURNDY 1 Pair Current Induction Terminal 2PIN VG50 Flange Guided
Product code :40911    Model:G50TCK1WP2GA
Contact Us

Filter by model

フランジ

商品内容

K熱電対 BURNDY 1対 電流導入端子2PIN VG50 フランジ ガイド付き admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***TCK1WP2G 1個
真空側PEEKインサート 16319 VSPI4GA 1個
大気側プラグ 10013 ASP4 1個
アルメル ソケットコンタクト 15759 SVC16ALA 2本
クロメル ソケットコンタクト 15758 SVC16CHA 2本
ソケットコンタクト 10147 SVC16 10本/1組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
NW16 → N16
NW25 → N25
NW40 → N40
ICF34 → C34
ICF70 → C70
熱電対タイプのアセンブリ方法は以下の画像をクリックしてください。
熱電対_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Connection parts crimp type 10 pieces for socket contact φ1.6
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147
Model:SVC16
Connection piece vacuum side PEEK® insulating insert BURNDY® for 4 PIN
Connection piece vacuum side PEEK® insulating insert BURNDY® for 4 PIN
Product code :16319
Model:VSPI4GA
Connection parts atmosphere side plug BURNDY 4 for PIN
Connection parts atmosphere side plug BURNDY 4 for PIN
Product code :10013
Model:ASP4
Connecting parts Atmosphere side Plug for thermocouple K type OMEGA™.
Connecting parts Atmosphere side Plug for thermocouple K type OMEGA™.
Product code :60187
Model:ASP-TCK1
EXTRACTION TOOL for Φ1.6
EXTRACTION TOOL for Φ1.6
Product code :14914
Model:EXT16
Crimp Tool AWG #12 - #28
Crimp Tool AWG #12 - #28
Product code :10052
Model:CT2313
Vacuum side K thermocouple polyimide coated bare wire tip welding for φ0.32 L=1000
Vacuum side K thermocouple polyimide coated bare wire tip welding for φ0.32 L=1000
Product code :13126
Model:VK3K1000/XXA
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Product code :17840
Model:VMK1000/XXA
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Product code :14487
Model:VMP1000/XX
Connection piece vacuum side K thermocouple wire tip welding φ0.32 L = 1000
Connection piece vacuum side K thermocouple wire tip welding φ0.32 L = 1000
Product code :14519
Model:VK3B1000/XX
