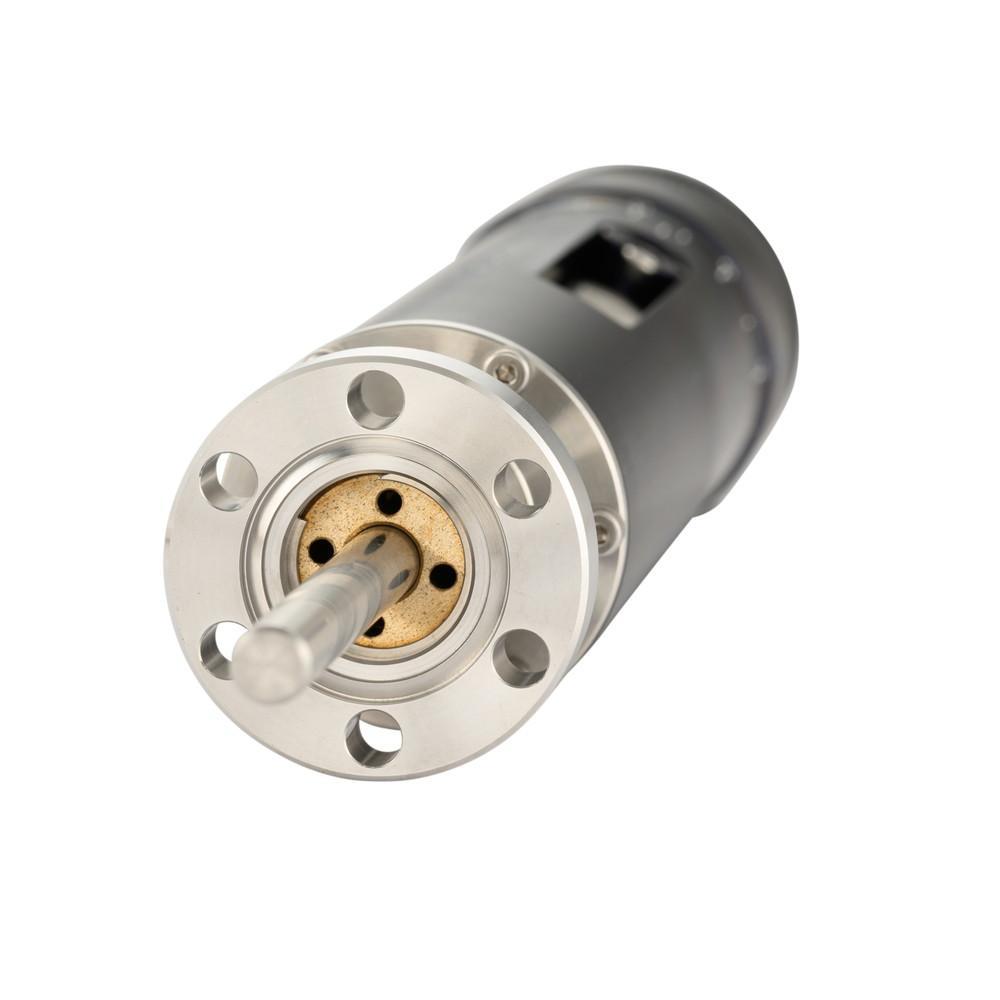

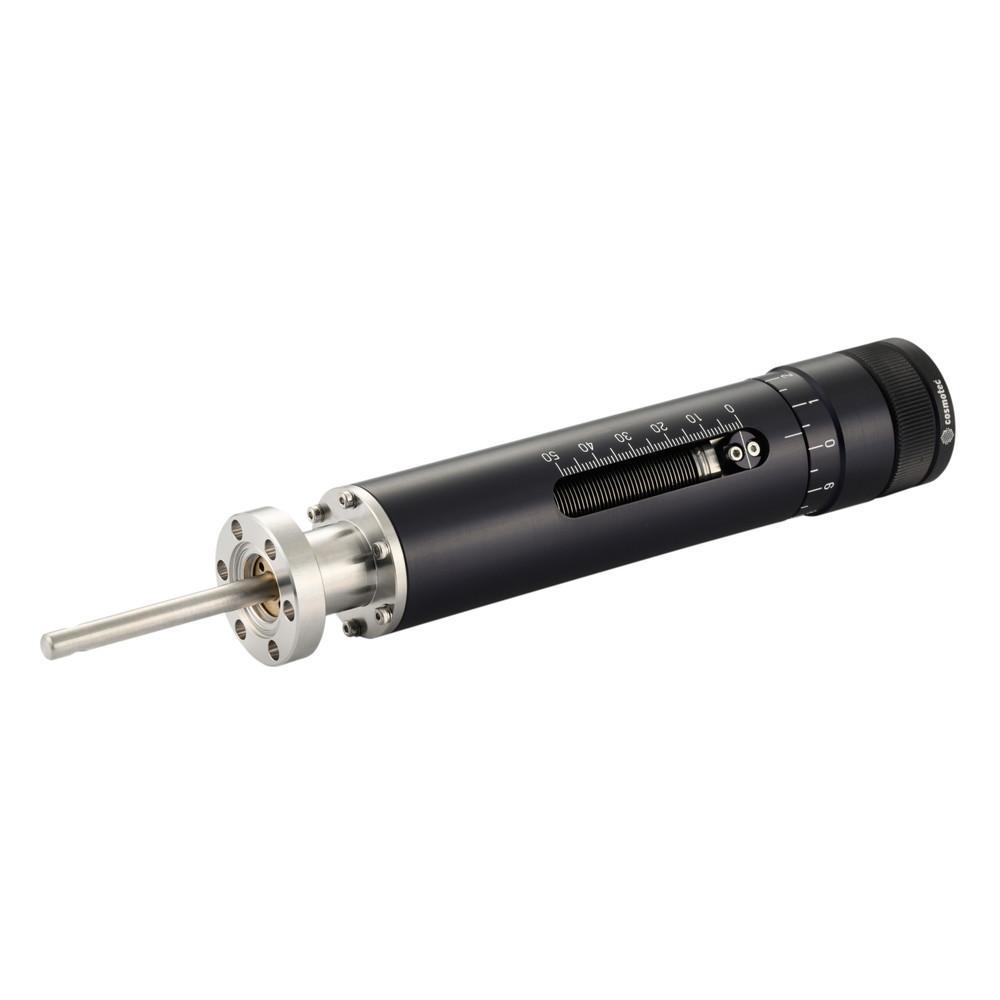

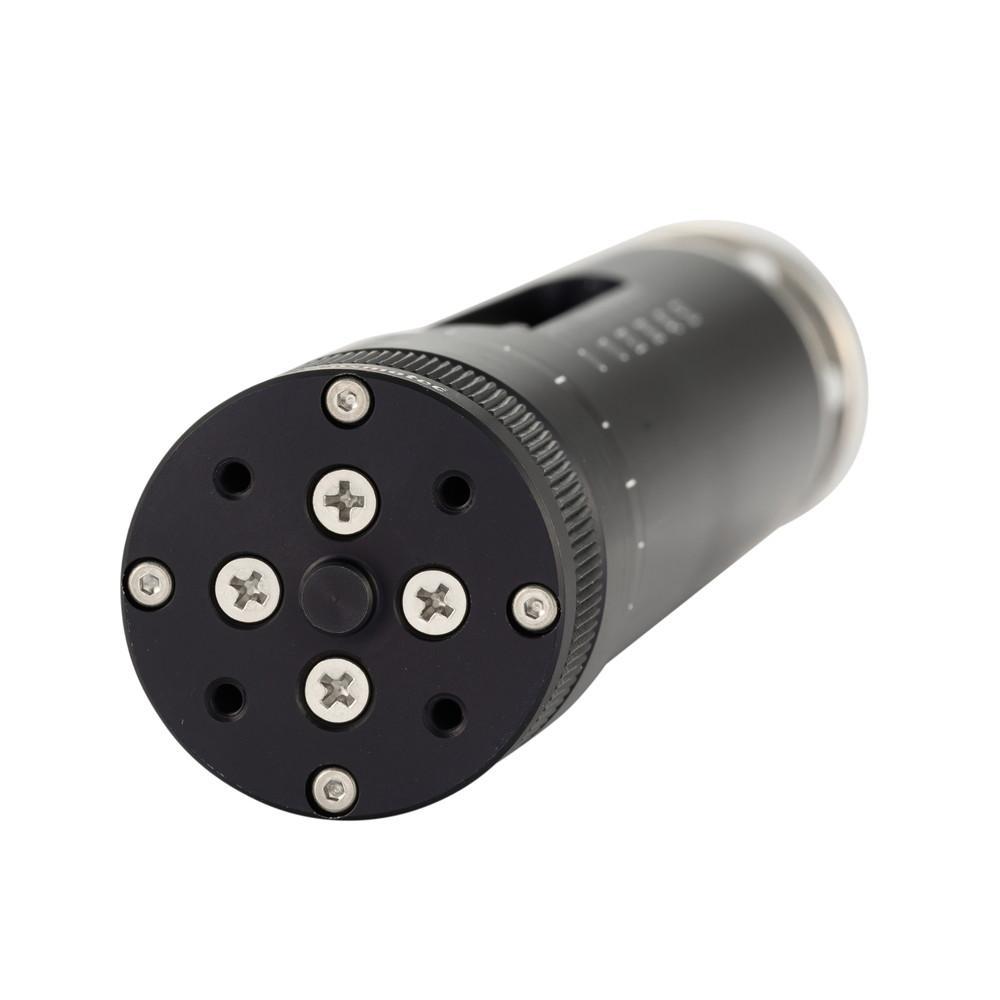

ICF34 straight line introduction machine Stroke: 50mm

ICF34 直線導入機 ストローク：50mm

Mouse over the image to enlarge it

ICF34 直線導入機 ストローク：50mm
share the productshare the product
Facebook
LINE
Twitter
Product code :27582 Model:ICF34LMF50A

▼Straight line feeder
Bellows seal system
Flange (ICF): 34, 70
Minimum scale (mm): 0.05
Bake heat resistance: 200°C
Life expectancy: 10,000 cycles
Motor compatible products are also available.

▼Rotary feeder
Bellows seal or magnetic coupling are available.
Flange (ICF): 34, 70
Minimum graduation: ICF34 = 0.5°, ICF70 = 1°.
Bake heat resistance: 200°C

▼Linear and rotary feeder (transfer rod)
Bellows seal or magnetic coupling are available.
Flange (ICF): 34, 70
Bake heat resistance: 200°C

▼Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

For precision cleaning requests, please click here.

Basic Information
Maximum temperature 120℃
Leak rate <1.3x10-11Pa･㎥/sec
Flange material SUS 304
RoHS2 corresponding ○
441,100 JPY (with tax 485,210JPY)
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 ICF C L1 L2 stroke Feed rate Classification operation Maximum permissible thrust way
Stock & Delivery
front.product.price
front.product.tax_included2
27582
ICF34LMF50A
34 6 50～75 184 50 mm 1mm/Rev Manual Straight line only 12kg bellows
When out of stock
Answered later
441,100JPY (with tax 485,210JPY)
ICF34 直線導入機 ストローク：50mm admin.label.item.size_image
ICF C L1 L2 stroke Feed rate Classification operation Maximum permissible thrust way
34 6 50～75 184 50 mm 1mm/Rev Manual Straight line only 12kg bellows
ICF34 straight line introduction machine Stroke: 50mm
Product code :27582    Model:ICF34LMF50A
441,100JPY (with tax 485,210JPY)
