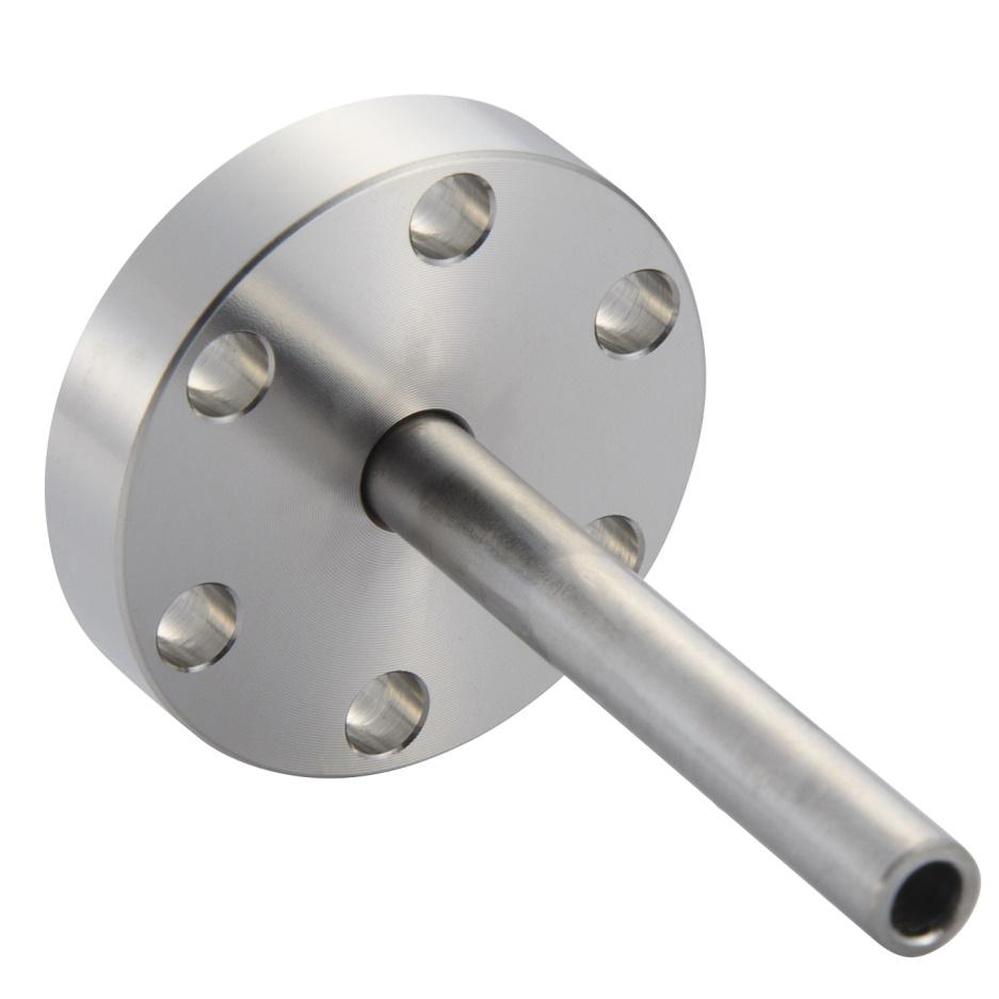

ICF34+1/4" Tube Adapter

ICF34+1/4インチ チューブアダプタ

Mouse over the image to enlarge it

ICF34+1/4インチ チューブアダプタ
share the productshare the product
Facebook
LINE
Twitter
Product code :20064 Model:ICF34TA1/4

▼ICF Inch Tube Adapters
A wide range of highly versatile inch tubes are available.
Tube diameter (inch): 1/16, 1/8, 1/4, 3/8, 1/2, 3/4
Flange size (ICF): 34, 70
Millimeter tube is here.
Click here for 2 tubes.

▼The following types of tube adapters are standardized (list)
Tubing: inch, mm
Fittings: Swagelok®, VCR®, V®-Lok, UJR®, VCO®, tapered thread, parallel thread, NPT
Flange: ICF, NW/KF, JIS-VF, JIS-VG
Flange-typed: 1 port, 2 ports
Nipple-typed: 1 port, 2 ports (angle, straight)
Tubes with penetrating vacuum side are also available (tubes, with joints at both ends, with joints on one side, with penetrating vacuum on one side, etc.)
We also offer radial port flanges with multiple adapters extending from a single flange.

▼Custom-made products are also available.
We can also accommodate changes in length, fittings, and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Joint standard Tube end
Flange material SUS 304
Tubes / Pipes SUS 304
RoHS2 corresponding ○
13,400 JPY (with tax 14,740JPY)
stock
34
1-2 Business Days
When out of stock
21 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 ICF Tube / Fitting Size A C D L
Stock & Delivery
front.product.price
front.product.tax_included2
20064
ICF34TA1/4
34 1/4 inch 34 6.35 4.35 50
stock
34 1-2 Business Days
When out of stock
21 Business Days
13,400JPY (with tax 14,740JPY)
ICF34+1/4インチ チューブアダプタ admin.label.item.size_image
ICF Tube / Fitting Size A C D L
34 1/4 inch 34 6.35 4.35 50
ICF34+1/4" Tube Adapter
Product code :20064    Model:ICF34TA1/4
13,400JPY (with tax 14,740JPY)
