Feedthrough Multi-Pin/Thermocouple Hybrid (Bionet Lock Type) Product List Feedthrough
Category 2Matter
Products 97Matter (41 ~60 )
- Displayed results
- Display switching
-
Product code :40927
Model:F50TCK2WP4GA▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VF 50 A 120 B 10 D 47 The contents of goods Only flanged terminal -
Product code :40928
Model:F50TCK2WP4GUT1B▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VF 50 A 120 B 10 D 47 The contents of goods Assembled set -

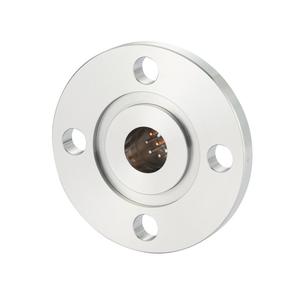

Product code :40929
Model:G20TCK2WP4GA▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 20 A 80 B 8 D 45 The contents of goods Only flanged terminal -
Product code :40930
Model:G20TCK2WP4GUT1B▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 20 A 80 B 8 D 45 The contents of goods Assembled set
-
Product code :40931
Model:G25TCK2WP4GA▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 25 A 90 B 8 D 45 The contents of goods Only flanged terminal -
Product code :40932
Model:G25TCK2WP4GUT1B▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 25 A 90 B 8 D 45 The contents of goods Assembled set -
Product code :40933
Model:G40TCK2WP4GA▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 40 A 105 B 10 D 47 The contents of goods Only flanged terminal -
Product code :40934
Model:G40TCK2WP4GUT1B▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 40 A 105 B 10 D 47 The contents of goods Assembled set
-
Product code :40935
Model:G50TCK2WP4GA▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 50 A 120 B 10 D 47 The contents of goods Only flanged terminal -
Product code :40936
Model:G50TCK2WP4GUT1B▼ Thermocouple BURNDY K type 2 pairs + current induction terminal 4PIN
Mates with bayonet locking plug
K type (Chromel®Almel®) thermocouple terminals for temperature measurement
Copper electrode: 20A compatible
Power induction and thermal measurement in one port
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services (pre-assembled products: for vacuum side/For Atmospheric side)
※Thermocouple electrodes are designed for thermal measurement, so there is no reference data for withstand current value.
▼The following types are standardized
K type 1 pair / 2PIN current introduction terminal
K type 2 pair / current introduction terminal 4PIN
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can also accept a combination of multiple different types of terminals, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning request, please click here.The number of electrode 4 Pairs of Thermocouple 2 type K Thermocouple / cable termina Electric current / 1 pc. 20 A Total current/1 terminal Milli Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ VG 50 A 120 B 10 D 47 The contents of goods Assembled set -
Product code :11934
Model:N40TCK1/5KV55AK Thermocouple OMEGA 1 pair / 5kV - 55A ICF34 Flange
Please click here to request a precision cleaning service.The number of terminals 1 The number of electrode 2 Pairs of Thermocouple 1 type K Thermocouple / cable termina Electric current / 1 pc. 55 A Withstand voltage: DC 5 kV Connection type OMEGA™ electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve SUS 304 Insulator Alumina ceramic Maximum temperature 300℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 A 55 B 6 C 130 D 80 E 84.7 F 57.75 G 109.7 -
Product code :11823
Model:C34TCK1/5KV55AK Thermocouple OMEGA 1 pair / 5kV - 55A ICF34 Flange
Please click here to request a precision cleaning service.The number of terminals 1 The number of electrode 2 Pairs of Thermocouple 1 type K Thermocouple / cable termina Electric current / 1 pc. 55 A Withstand voltage: DC 5 kV Connection type OMEGA™ electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve SUS 304 Insulator Alumina ceramic Maximum temperature 300℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ ICF 34 A 34 B 7.5 C 119.3 D 90.7 E 74 F 68.45 G 99
-
Product code :11914
Model:C70TCK1/5KV55AK Thermocouple OMEGA 1 pair / 5kV - 55A ICF34 Flange
Please click here to request a precision cleaning service.The number of terminals 1 The number of electrode 2 Pairs of Thermocouple 1 type K Thermocouple / cable termina Electric current / 1 pc. 55 A Withstand voltage: DC 5 kV Connection type OMEGA™ electrode Chromel ® / alumel ® / oxygen- Flange material SUS 304 sleeve SUS 304 Insulator Alumina ceramic Maximum temperature 300℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ ICF 70 A 70 B 12.7 C 130.5 D 79.5 E 85.2 F 57.25 G 110.2 -
Product code :11396
Model:N40MB42G▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Only flanged terminal The number of electrode 8(4+4) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A -
Product code :18927
Model:N40MB42GUT1A▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Assembled set The number of electrode 8(4+4) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A -
Product code :11397
Model:N40MB82G▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Only flanged terminal The number of electrode 16(8+8) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A
-
Product code :18928
Model:N40MB82GUT1A▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Assembled set The number of electrode 16(8+8) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A -
Product code :18908
Model:N40MB842G▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Only flanged terminal The number of electrode 12(8+4) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A -
Product code :18930
Model:N40MB842GUT1A▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type High current A 55 B 41.2 D1 38 D2 38 The contents of goods Assembled set The number of electrode 12(8+4) Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A -
Product code :18910
Model:N40MB8TCK4G▼Multi-pin BURNDY® guided multiple terminals
Hybrid feedthroughs combining multiple terminals
Multiple terminals can be used for different applications.
Terminals: Multi-pin high current type, K thermocouple, T thermocouple
Separate power induction and thermal measurement on a single port.
▼Custom-made products are also available.
Combination of multiple and different types of terminals, change of flange size, and mounting on special flanges are also available.
Please contact us from the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Withstand voltage: DC 500 V Insulation resistance value 10⁹ ohm frequency 10 MHz Connection type BURNDY Flange material SUS 304 sleeve Kovar ® Insulator Alumina ceramic Maximum temperature 450℃ The lowest temperature -196℃ Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec RoHS2 corresponding ○ NW/KF 40 type K thermocouple/High current A 55 B 41.2 D1 38 D2 38 The contents of goods Only flanged terminal The number of electrode 8 Pairs of Thermocouple 4 Electric current / 1 pc. 10 A Total current/1 terminal 33.1 A
