Feedthrough coaxial MHV type　Product List Feedthrough 

Products　111Matter (21 ~40 )

Displayed results
Display switching

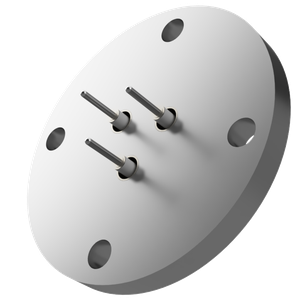

  • 同軸 MHV-R 3個付き VF40 フランジ
    Coaxial MHV-R with 3 pcs VF40 flange
    Product code :11679
    Model:F40MR3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 21
    D 26
    P.C.D 24
    The number of electrode 3
    90,000JPY (with tax 99,000JPY)
    Inquiry for this product

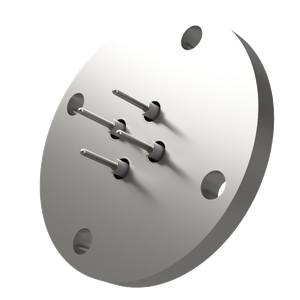

  • 同軸 MHV-R 4個付き VF40 フランジ
    Coaxial MHV-R with 4 VF40 flanges
    Product code :10855
    Model:F40MR4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 21
    D 26
    P.C.D 24
    The number of electrode 4
    111,900JPY (with tax 123,090JPY)
    Inquiry for this product
  • 同軸 MHV-R 1個付き VG20 フランジ
    Coaxial MHV-R with 1 piece VG20 flange
    Product code :11680
    Model:G20MR1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 20
    A 80
    B 8
    C 21
    D 26
    The number of electrode 1
    34,300JPY (with tax 37,730JPY)
    Inquiry for this product
  • 同軸 MHV-R 1個付き VG25 フランジ
    Coaxial MHV-R with 1 piece VG25 flange
    Product code :10977
    Model:G25MR1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 25
    A 90
    B 8
    C 21
    D 26
    The number of electrode 1
    35,100JPY (with tax 38,610JPY)
    Inquiry for this product
  • 同軸 MHV-R 2個付き VG25 フランジ
    Coaxial MHV-R with 2 pcs VG25 flange
    Product code :11681
    Model:G25MR2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 25
    A 90
    B 8
    C 21
    D 26
    P.C.D 24
    The number of electrode 2
    64,800JPY (with tax 71,280JPY)
    Inquiry for this product
  • 同軸 MHV-R 1個付き VG40 フランジ
    Coaxial MHV-R with 1 piece VG40 flange
    Product code :11682
    Model:G40MR1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 21
    D 26
    The number of electrode 1
    36,100JPY (with tax 39,710JPY)
    Inquiry for this product
  • 同軸 MHV-R 2個付き VG40 フランジ
    Coaxial MHV-R with 2 pcs VG40 flange
    Product code :11683
    Model:G40MR2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 21
    D 26
    P.C.D 24
    The number of electrode 2
    65,800JPY (with tax 72,380JPY)
    Inquiry for this product
  • 同軸 MHV-R 3個付き VG40 フランジ
    Coaxial MHV-R with 3 pcs VG40 flange
    Product code :11684
    Model:G40MR3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 21
    D 26
    P.C.D 24
    The number of electrode 3
    90,000JPY (with tax 99,000JPY)
    Inquiry for this product
  • 同軸 MHV-R 4個付き VG40 フランジ
    Coaxial MHV-R with 4 pcs VG40 flange
    Product code :11685
    Model:G40MR4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    Vacuum side is electrode, atmospheric side only MHV connector connection
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Floating shield single-sided plug mating
    Gland shield plugging on both sides
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 21
    D 26
    P.C.D 24
    The number of electrode 4
    111,900JPY (with tax 123,090JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き NW/KF16 フランジ
    Coaxial MHV-R-F with 1 NW/KF16 flange
    Product code :11055
    Model:N16MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 16
    A 30
    B 4.8
    C 12.5
    D 34.5
    The number of electrode 1
    61,500JPY (with tax 67,650JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き NW/KF25 フランジ
    Coaxial MHV-R-F with 1 NW/KF25 flange
    Product code :11089
    Model:N25MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 25
    A 40
    B 6
    C 20
    D 27
    The number of electrode 1
    61,700JPY (with tax 67,870JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き NW/KF40 フランジ
    Coaxial MHV-R-F with 1 NW/KF40 flange
    Product code :11166
    Model:N40MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 40
    A 55
    B 6
    C 20
    D 27
    The number of electrode 1
    62,000JPY (with tax 68,200JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 2個付き NW/KF40 フランジ
    Coaxial MHV-R-F with 2 pcs NW/KF40 flange
    Product code :11167
    Model:N40MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 40
    A 55
    B 6
    C 20
    D 27
    P.C.D 20
    The number of electrode 2
    120,000JPY (with tax 132,000JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 3個付き NW/KF40 フランジ
    Coaxial MHV-R-F with 3 pcs NW/KF40 flange
    Product code :11989
    Model:N40MRF3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 40
    A 55
    B 6
    C 20
    D 27
    P.C.D 21
    The number of electrode 3
    170,200JPY (with tax 187,220JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き NW/KF50 フランジ
    Coaxial MHV-R-F with 1 NW/KF50 flange
    Product code :41067
    Model:N50MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 50
    A 75
    B 6
    C 20
    D 27
    The number of electrode 1
    62,500JPY (with tax 68,750JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 2個付き NW/KF50 フランジ
    Coaxial MHV-R-F with 2 pcs NW/KF50 flange
    Product code :41068
    Model:N50MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 50
    A 75
    B 6
    C 20
    D 27
    P.C.D 20
    The number of electrode 2
    120,500JPY (with tax 132,550JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 3個付き NW/KF50 フランジ
    Coaxial MHV-R-F with 3 pcs NW/KF50 flange
    Product code :41069
    Model:N50MRF3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 50
    A 75
    B 6
    C 20
    D 27
    P.C.D 21
    The number of electrode 3
    170,700JPY (with tax 187,770JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 4個付き NW/KF50 フランジ
    Coaxial MHV-R-F with 4 pcs NW/KF50 flange
    Product code :18596
    Model:N50MRF4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 50
    A 75
    B 6
    C 20
    D 27
    P.C.D 28
    The number of electrode 4
    220,600JPY (with tax 242,660JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き ICF34 フランジ
    Coaxial MHV-R-F with 1 ICF34 Flange
    Product code :10631
    Model:C34MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    ICF 34
    A 34
    B 7.5
    C 8.9
    D 38.1
    The number of electrode 1
    62,500JPY (with tax 68,750JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き ICF70 フランジ
    Coaxial MHV-R-F with 1 ICF70 flange
    Product code :10714
    Model:C70MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    ICF 70
    A 70
    B 12.7
    C 20.5
    D 26.5
    The number of electrode 1
    63,700JPY (with tax 70,070JPY)
    Inquiry for this product

stock status

Filter by specification
products： 111Matter

Flange

type

Connection type

type

Classification

The number of electrode

Electric current / 1 pc.

Withstand voltage: DC

frequency

Please customers by all means contact us we can not find your favorite product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください！

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
