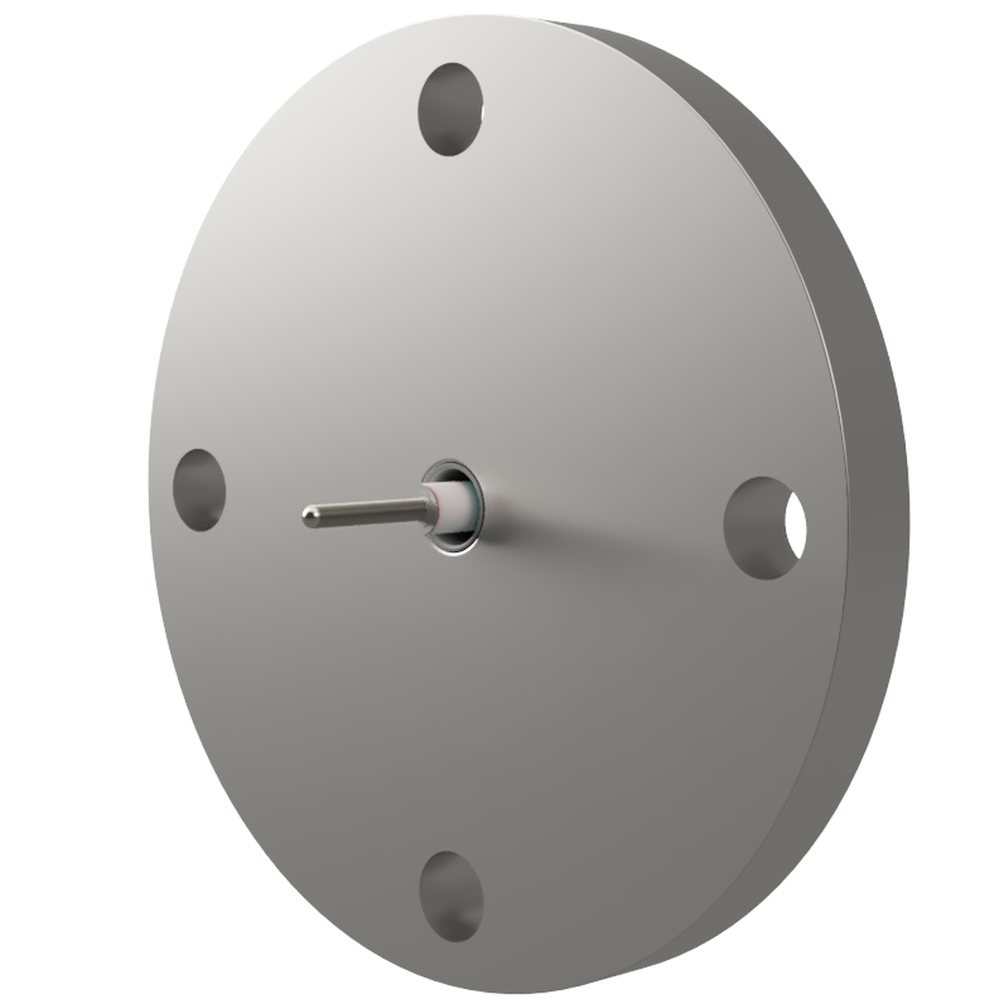

Coaxial MHV-R with 1 VF20 flange

同軸 MHV-R 1個付き VF20 フランジ

Mouse over the image to enlarge it

同軸 MHV-R 1個付き VF20 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11674 Model:F20MR1

Miniature High Voltage
▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
Vacuum side is electrode, atmospheric side only MHV connector connection
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield single-sided plug mating
Gland shield plugging on both sides
Floating shield plugging on both sides

▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type MHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
34,300 JPY (with tax 37,730JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11674
F20MR1
- - 20 - 80 8 21 26 - 1
When out of stock
30 Business Days
34,300JPY (with tax 37,730JPY)
同軸 MHV-R 1個付き VF20 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 20 - 80 8 21 26 - 1
Coaxial MHV-R with 1 VF20 flange
Product code :11674    Model:F20MR1
34,300JPY (with tax 37,730JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 MHV-R 1個付き VF20 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
