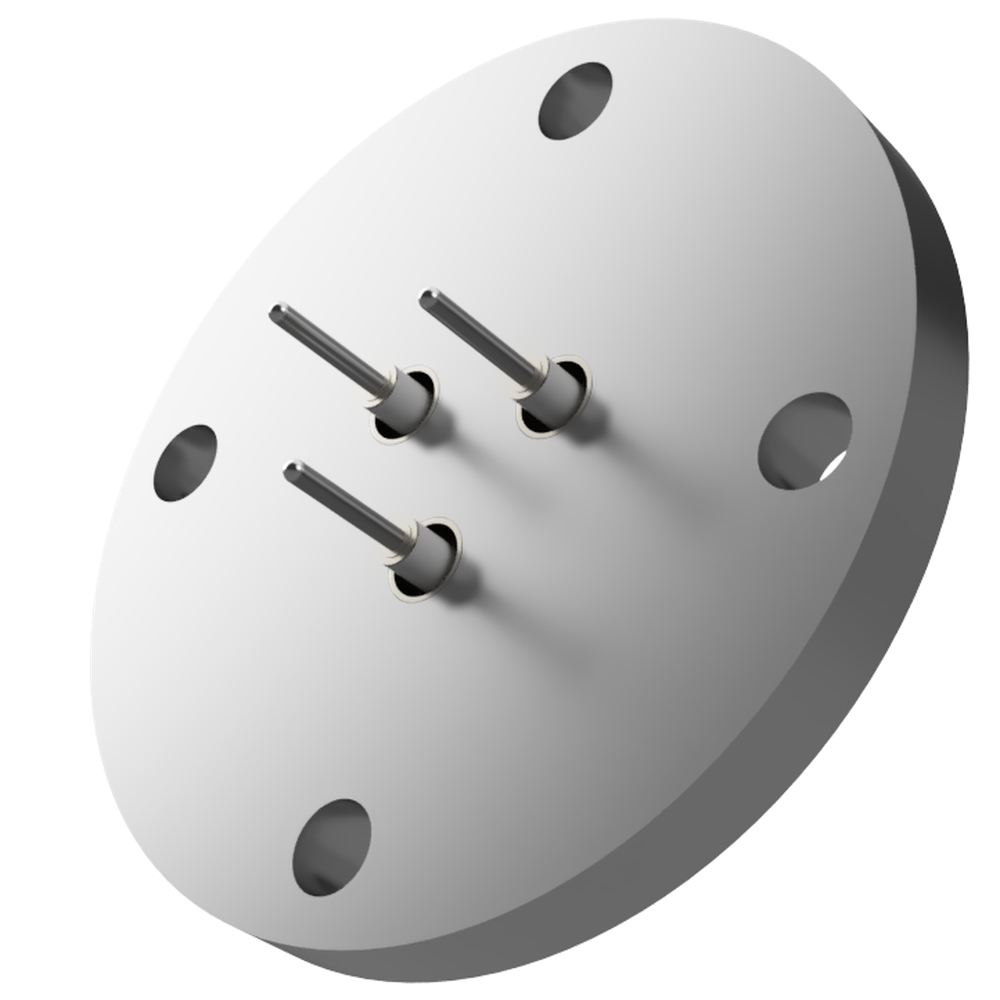

Coaxial MHV-R with 3 pcs VF40 flange

同軸 MHV-R 3個付き VF40 フランジ

Mouse over the image to enlarge it

同軸 MHV-R 3個付き VF40 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11679 Model:F40MR3

Miniature High Voltage
▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
Vacuum side is electrode, atmospheric side only MHV connector connection
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield single-sided plug mating
Gland shield plugging on both sides
Floating shield plugging on both sides

▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type MHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
90,000 JPY (with tax 99,000JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11679
F40MR3
- - 40 - 105 10 21 26 24 3
When out of stock
30 Business Days
90,000JPY (with tax 99,000JPY)
同軸 MHV-R 3個付き VF40 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 40 - 105 10 21 26 24 3
Coaxial MHV-R with 3 pcs VF40 flange
Product code :11679    Model:F40MR3
90,000JPY (with tax 99,000JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 MHV-R 3個付き VF40 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
