  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Multi-pin
  4. Peripheral connection parts
  5. MS (MIL-C-5015)
  6. Connection part Atmosphere side with plug + polyethylene sheathed cable MS 6PIN L=2500

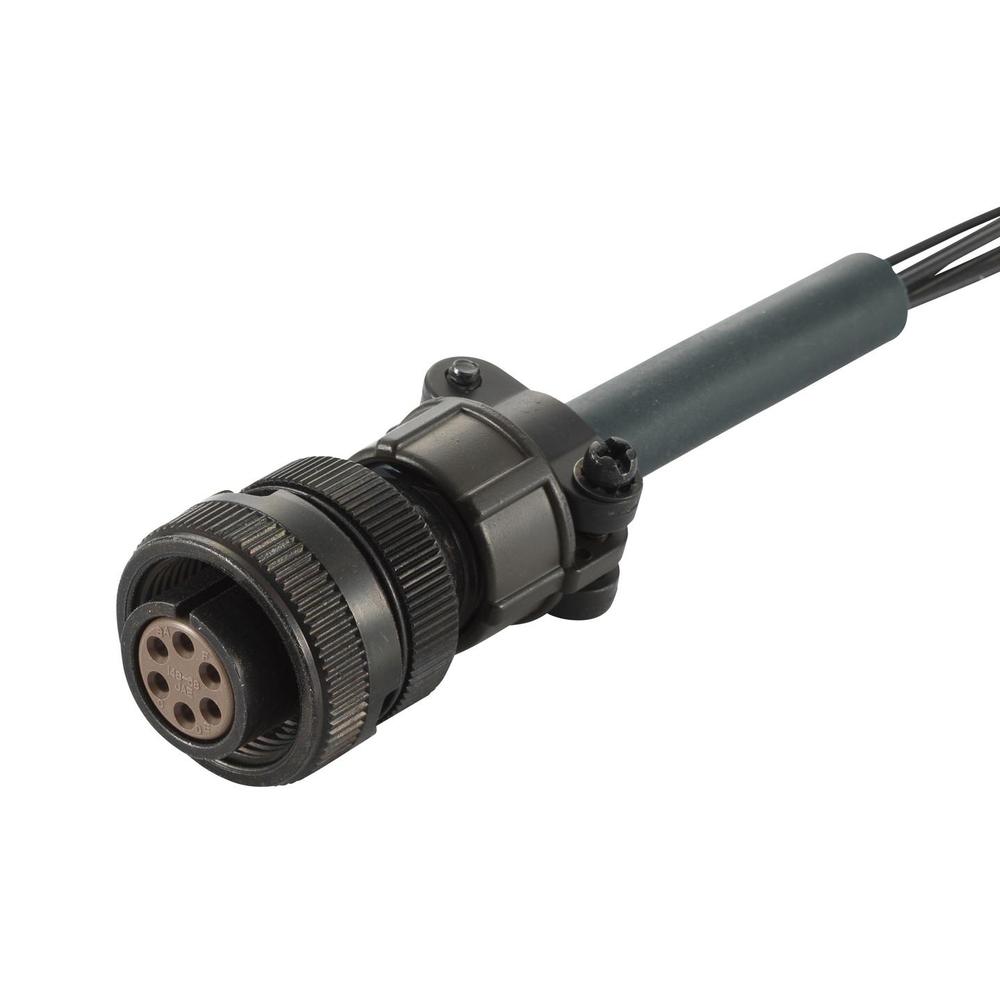

Connection part Atmosphere side with plug + polyethylene sheathed cable MS 6PIN L=2500

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 MS 6PIN L=2500

Mouse over the image to enlarge it

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 MS 6PIN L=2500
share the productshare the product
Facebook
LINE
Twitter
Product code :16777 Model:AMMV2500X/6

▼Air side plug with cable for MS (MIL-C-5015) type
Signal cable ASSY for atmospheric side (with solder)
Ready to use after arrival due to preassembled
Polyethylene sheathed cable
Length: 1000, 2500, 5000
Number of PINs supported: 4, 6, 10, 14, 19, 24, 37

▼ Options
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.
Click here for the cable only.
Plug only is here.

For precision cleaning, click here.

Basic Information
Withstand voltage: DC 2.8 kV (reference)
Fixed voltage/temp 150 V / 125 ℃
Withstand voltage (AC) 2000 V
Electric current / 1 pc. 12A
AWG # 20
contact Copper Alloy + Silver Plating
Cable sheathing polyethylene
conductor Soft copper wire
shell Aluminum alloy
Bush Synthetic rubber
Insulator Synthetic resins
Maximum temperature 125℃
The lowest temperature -20℃
Vacuum and Air For the atmosphere
RoHS2 corresponding ○
18,300 JPY (with tax 20,130JPY)
When out of stock
11 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A B C D E L The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
16777
AMMV2500X/6
28.6 27.6 54.8 108 24.6 2500 6
When out of stock
11 Business Days
18,300JPY (with tax 20,130JPY)
接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 MS 6PIN L=2500 admin.label.item.size_image
A B C D E L The number of electrode
28.6 27.6 54.8 108 24.6 2500 6
Connection part Atmosphere side with plug + polyethylene sheathed cable MS 6PIN L=2500
Product code :16777    Model:AMMV2500X/6
18,300JPY (with tax 20,130JPY)
Contact Us

Filter by model

L（長さ）

電極数

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 MS 6PIN L=2500 admin.label.item.catalog_image
MSタイプのアセンブリ方法は以下の画像をクリックしてください。
MSタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
