Connecting parts Atmosphere-side cable
▼Cable for Atmospheric side
Signal cable for atmospheric side
Polyethylene sheathed
Suitable for connection of multi-pin terminals
Length: 1000, 2500, 5000
▼ Option
Assembly products with connecting parts (socket contacts, plugs, etc.) are also available.
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.
Click here to request precision cleaning.
| Basic Information | |
|---|---|
| Withstand voltage: DC | 2.8 kV (reference) |
| Fixed voltage/temp | 150 V / 125 ℃ |
| Withstand voltage (AC) | 2000 V |
| Electric current / 1 pc. | 12A |
| AWG # | 20 |
| Cable sheathing | polyethylene |
| conductor | Soft copper wire |
| Maximum temperature | 125℃ |
| The lowest temperature | -20℃ |
| Conductor resistance (20 ° C. · | 38.3Ω/km |
| Vacuum and Air | For the atmosphere |
| RoHS2 corresponding | ○ |
We have 6 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |
L | contact | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|
| 1000 | - |
stock
1452
1-2 Business Days
When out of stock
11 Business Days
|
300JPY
(with tax 330JPY)
|
|
| 2500 | - |
stock
28
1-2 Business Days
When out of stock
11 Business Days
|
800JPY
(with tax 880JPY)
|
|
| 5000 | - |
stock
8
1-2 Business Days
When out of stock
11 Business Days
|
1,500JPY
(with tax 1,650JPY)
|
|

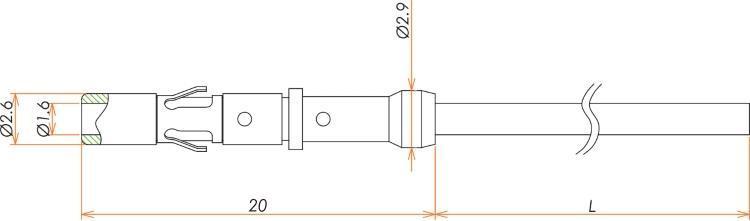

| 1000 | Beryllium copper + gold-plated |
stock
28
1-2 Business Days
When out of stock
11 Business Days
|
1,600JPY
(with tax 1,760JPY)
|
|
| 2500 | Beryllium copper + gold-plated |
When out of stock
11 Business Days
|
2,000JPY
(with tax 2,200JPY)
|
|
| 5000 | Beryllium copper + gold-plated |
stock
10
1-2 Business Days
When out of stock
11 Business Days
|
2,800JPY
(with tax 3,080JPY)
|
| L | contact |
|---|---|
Connection parts
Product code :10147
Model:SVC16
Model:SVC16
7,100JPY
(with tax 7,810JPY)
