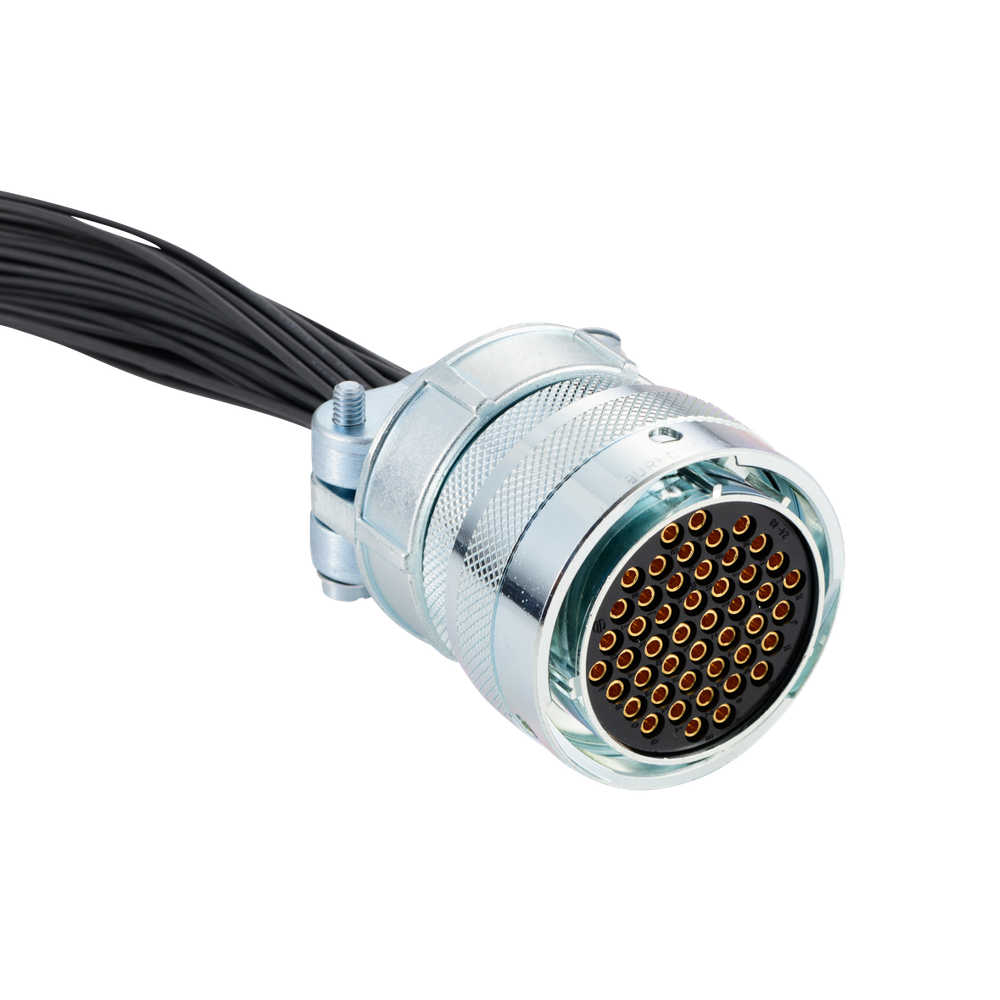

Connecting components Atmosphere side Plug + Polyethylene sheathed cable included BURNDY 48PIN L=2500

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 48PIN L=2500

Mouse over the image to enlarge it

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 48PIN L=2500
share the productshare the product
Facebook
LINE
Twitter
Product code :16768 Model:AMBV2500X/48PI

▼Cable with plug on the atmospheric side for BURNDY®
Signal cable ASSY for atmospheric side
Ready to use after arrival due to preassembled
Polyethylene sheathed cable
Length: 1000, 2500, 5000
Number of PINs: 4, 8, 12, 19, 22, 30, 48

▼ Options
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.
Click here for the cable only.
Plug only is here.

For precision cleaning, click here.

Basic Information
Withstand voltage: DC 2.8 kV (reference)
Fixed voltage/temp 150 V / 125 ℃
Withstand voltage (AC) 2000 V
Electric current / 1 pc. 12A
AWG # 20
contact Copper alloy + gold-plated
Cable sheathing polyethylene
conductor Soft copper wire
shell Aluminum alloy
Insulator Glass filled phenolic resin (U
Maximum temperature 125℃
The lowest temperature -20℃
Vacuum and Air For the atmosphere
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A B C L The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
16768
AMBV2500X/48PI
44 42.9 59 2500 48
接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 48PIN L=2500 admin.label.item.size_image
A B C L The number of electrode
44 42.9 59 2500 48
Connecting componentsAtmospheresidePlug+Polyethylene sheathedcableincludedBURNDY48PIN L=2500
Product code :16768    Model:AMBV2500X/48PI
Contact Us

Filter by model

L（長さ）

電極数

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 48PIN L=2500 admin.label.item.catalog_image
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
