  6. Connecting components Atmosphere side Plug + Polyethylene covered cable BURNDY 8PIN L=5000

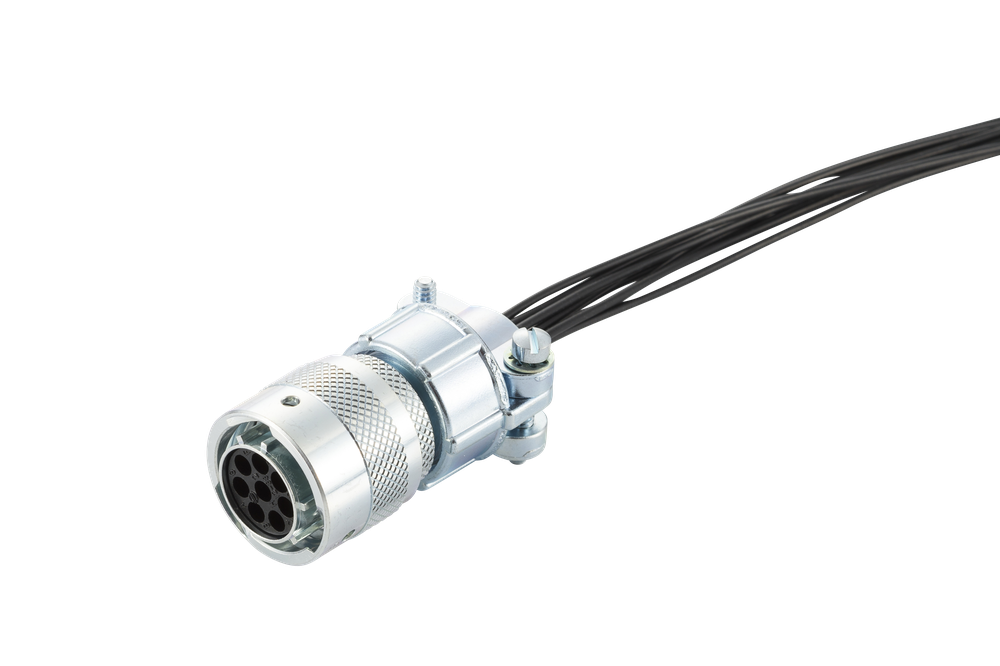

Connecting components Atmosphere side Plug + Polyethylene covered cable BURNDY 8PIN L=5000

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 8PIN L=5000

Mouse over the image to enlarge it

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 8PIN L=5000
share the productshare the product
Facebook
LINE
Twitter
Product code :15486 Model:AMBV5000X/8PI

▼Cable with plug on the atmospheric side for BURNDY®
Signal cable ASSY for atmospheric side
Ready to use after arrival due to preassembled
Polyethylene sheathed cable
Length: 1000, 2500, 5000
Number of PINs: 4, 8, 12, 19, 22, 30, 48

▼ Options
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.
Click here for the cable only.
Plug only is here.

For precision cleaning, click here.

Basic Information
Withstand voltage: DC 2.8 kV (reference)
Fixed voltage/temp 150 V / 125 ℃
Withstand voltage (AC) 2000 V
Electric current / 1 pc. 12A
AWG # 20
contact Copper alloy + gold-plated
Cable sheathing polyethylene
conductor Soft copper wire
shell Aluminum alloy
Insulator Glass filled phenolic resin (U
Maximum temperature 125℃
The lowest temperature -20℃
Vacuum and Air For the atmosphere
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A B C L The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
15486
AMBV5000X/8PI
24.7 27 51 5000 8
接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 8PIN L=5000 admin.label.item.size_image
A B C L The number of electrode
24.7 27 51 5000 8
Connecting components Atmosphere side Plug + Polyethylene covered cable BURNDY 8PIN L=5000
Product code :15486    Model:AMBV5000X/8PI
Contact Us

Filter by model

L（長さ）

電極数

接続部品 大気側 プラグ+ポリエチレン被覆ケーブル付 BURNDY 8PIN L=5000 admin.label.item.catalog_image
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
