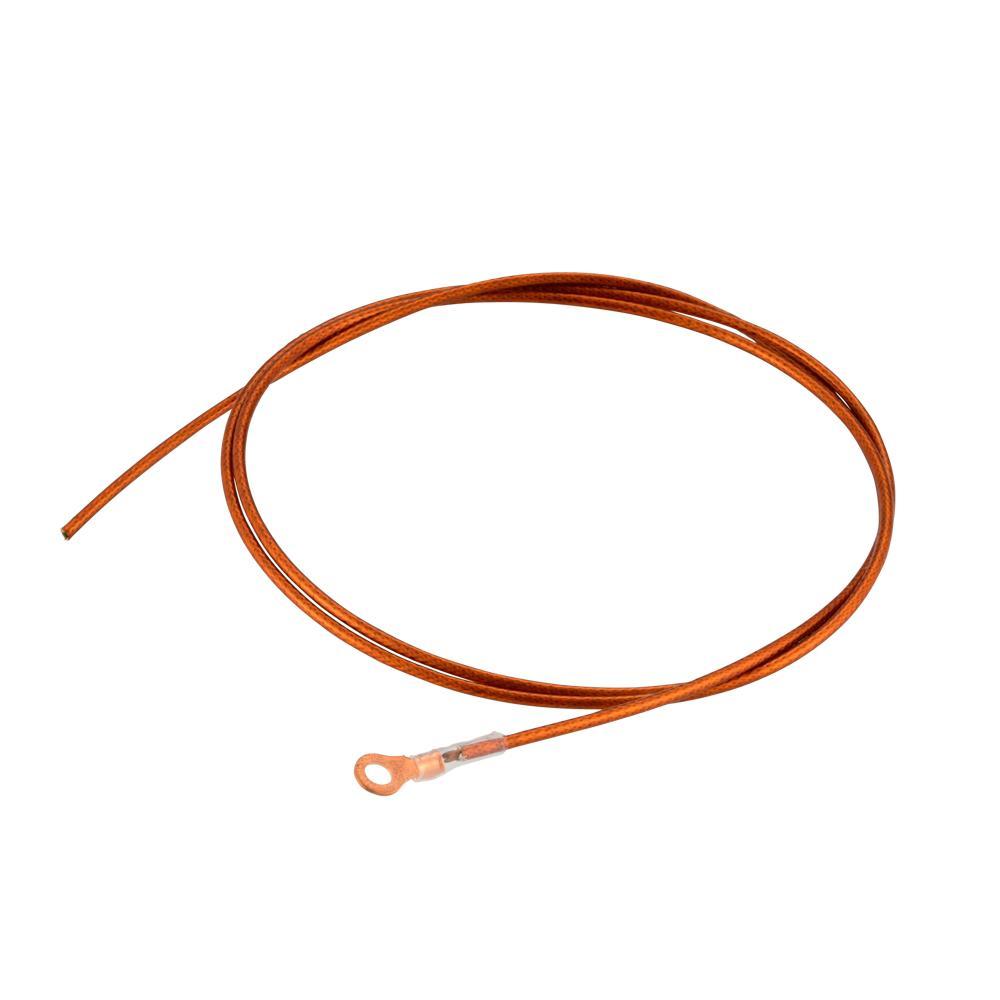

Connecting part Vacuum side M2 Crimp terminal with polyimide sheathed cable L=1000

接続部品 真空側 ポリイミド被覆ケーブル付き M2圧着端子 L=1000

Mouse over the image to enlarge it

接続部品 真空側 ポリイミド被覆ケーブル付き M2圧着端子 L=1000
share the productshare the product
Facebook
LINE
Twitter
Product code :18850 Model:VCK1000X/RT2

▼Vacuum side cable
Can be used in ultra-high vacuum environments
Available in three types: polyimide, Kapton®, and PEEK® coated
Lengths: 1000, 2500, 5000
Polyimide coating: Dipped directly onto the conductor, no adhesive is used to reduce outgassing. Also, no gap between conductor and insulation prevents virtual leakage, making this cable suitable for UHV environments.
PEEK: Often used in radiation-resistant environments
Silver wire: Pure silver, which is more conductive and softer than copper, is used for flexible wiring in a vacuum environment.
Copper wire: Stronger than silver wire

Options
ASSY products with connecting parts (socket contacts, inserts, etc.) are also available.
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.

Click here to request precision cleaning.

Basic Information
Vacuum and Air For vacuum
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 L AWG # Electric current / 1 pc. Cable sheathing conductor Bending radius Conductor resistance (20 ° C. · Withstand voltage: DC Maximum temperature terminal processing
Stock & Delivery
front.product.price
front.product.tax_included2
18850
VCK1000X/RT2
1000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 250℃ One side: M2 crimp terminal On
L AWG # Electric current / 1 pc. Cable sheathing conductor Bending radius Conductor resistance (20 ° C. · Withstand voltage: DC Maximum temperature terminal processing
1000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 250℃ One side: M2 crimp terminal On
Connecting part Vacuum side M2 Crimp terminal with polyimide sheathed cable L=1000
Product code :18850    Model:VCK1000X/RT2
