Connection parts vacuum-side cable

Connection parts vacuum-side cable

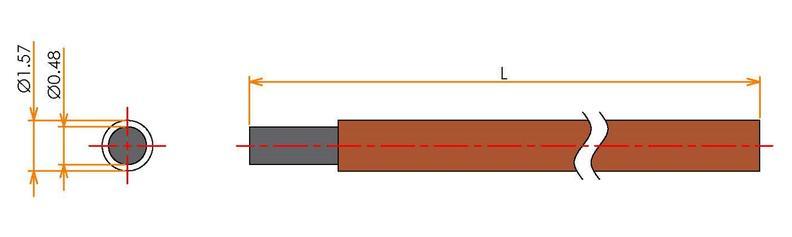

▼Vacuum side cable
Can be used in ultra-high vacuum environments
Available in three types: polyimide, Kapton®, and PEEK® coated
Lengths: 1000, 2500, 5000
Polyimide coating: Dipped directly onto the conductor, no adhesive is used to reduce outgassing. Also, no gap between conductor and insulation prevents virtual leakage, making this cable suitable for UHV environments.
PEEK: Often used in radiation-resistant environments
Silver wire: Pure silver, which is more conductive and softer than copper, is used for flexible wiring in a vacuum environment.
Copper wire: Stronger than silver wire

Options
ASSY products with connecting parts (socket contacts, inserts, etc.) are also available.
We can also change the length of the cable. Please contact us from the "Inquiry" button on the right side of the page.

Click here to request precision cleaning.

see next
Basic Information
Vacuum and Air For vacuum
RoHS2 corresponding ○
Inquiry for this subcategory

We have 24 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
 L AWG # Electric current / 1 pc. Cable sheathing conductor Bending radius Conductor resistance (20 ° C. · Withstand voltage: DC Maximum temperature terminal processing
Stock & Delivery
front.product.price
front.product.tax_included2
18979
VK3AL1000/XXA
1000 32 Milli polyimide Alumel - - 2.8 kV 250℃ None
When out of stock
6 Business Days
2,700JPY (with tax 2,970JPY)
18980
VK3AL2500/XXA
2500 32 Milli polyimide Alumel - - 2.8 kV 250℃ None
When out of stock
6 Business Days
6,750JPY (with tax 7,425JPY)
18981
VK3AL5000/XXA
5000 32 Milli polyimide Alumel - - 2.8 kV 250℃ None
When out of stock
6 Business Days
13,500JPY (with tax 14,850JPY)
14486
VMK1000/XX
1000 20 11 A Kapton ® Ag-plated copper wire - - 2 kV 250℃ -
stock
65 1-2 Business Days
2,200JPY (with tax 2,420JPY)
17840
VMK1000/XXA
1000 22 10 A polyimide Silver wire - 49.8Ω/km 10 kV 250℃ -
stock
1871 1-2 Business Days
When out of stock
6 Business Days
2,700JPY (with tax 2,970JPY)
18473
VMK1000X/SA
1000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 150℃ One side: socket contact
stock
41 1-2 Business Days
When out of stock
11 Business Days
7,500JPY (with tax 8,250JPY)
18850
VCK1000X/RT2
1000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 250℃ One side: M2 crimp terminal On
When out of stock
11 Business Days
14,700JPY (with tax 16,170JPY)
18851
VCK1000X/RT3
1000 22 10 A polyimide Silver wire - 49.8Ω/km 13 kV 250℃ One side: M3 crimp terminal On
When out of stock
11 Business Days
14,800JPY (with tax 16,280JPY)
18852
VCK1000X/RT4
1000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 250℃ 片側：M4圧着端子　片側：なし
stock
1 1-2 Business Days
When out of stock
11 Business Days
14,900JPY (with tax 16,390JPY)
19036
VMK2500/XX
2500 20 11 A Kapton ® Ag-plated copper wire - - 2 kV 250℃ -
stock
1 1-2 Business Days
5,400JPY (with tax 5,940JPY)
18428
VMK2500/XXA
2500 22 10 A polyimide Silver wire - 49.8Ω/km 10 kV 250℃ -
stock
27 1-2 Business Days
When out of stock
11 Business Days
6,800JPY (with tax 7,480JPY)
18474
VMK2500X/SA
2500 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 150℃ One side: socket contact
stock
9 1-2 Business Days
When out of stock
11 Business Days
9,700JPY (with tax 10,670JPY)
15434
VMK5000/XX
5000 20 11 A Kapton ® Ag-plated copper wire - - 2 kV 250℃ -
stock
1 1-2 Business Days
10,700JPY (with tax 11,770JPY)
18429
VMK5000/XXA
5000 22 10 A polyimide Silver wire - 49.8Ω/km 10 kV 250℃ -
stock
5 1-2 Business Days
When out of stock
6 Business Days
13,500JPY (with tax 14,850JPY)
18475
VMK5000X/SA
5000 22 10 A polyimide Silver wire - 49.8Ω/km 2 kV 150℃ One side: socket contact
When out of stock
11 Business Days
13,500JPY (with tax 14,850JPY)
16595
V10K3AK1000/XX
1000 26 3 A Kapton ® Ag-plated copper wire 14mm - 10 kV 250℃ -
stock
14 1-2 Business Days
When out of stock
10 Business Days
8,200JPY (with tax 9,020JPY)
17724
V10K3AK2500/XX
2500 26 3 A Kapton ® Ag-plated copper wire 14mm - 10 kV 250℃ -
stock
6 1-2 Business Days
When out of stock
19 Business Days
18,100JPY (with tax 19,910JPY)
17803
V10K3AK5000/XX
5000 26 3 A Kapton ® Ag-plated copper wire 14mm - 10 kV 250℃ -
stock
1 1-2 Business Days
When out of stock
11 Business Days
28,000JPY (with tax 30,800JPY)
60221
V30K11AK1000/XX
1000 20 11 A Kapton ® Ag-plated copper wire 0.66 - 30 kV 250℃ -
stock
14 1-2 Business Days
When out of stock
10 Business Days
9,700JPY (with tax 10,670JPY)
14487
VMP1000/XX
1000 20 14.7 A PEEK® Ni plating annealed copper wir 9.6mm 37.2Ω/km～500MΩ/km 700 V 250℃ -
stock
417 1-2 Business Days
When out of stock
Answered later
2,200JPY (with tax 2,420JPY)
17723
VMP2500/XX
2500 20 14.7 A PEEK® Ni plating annealed copper wir 9.6mm 37.2Ω/km～500MΩ/km 700 V 250℃ -
When out of stock
11 Business Days
5,500JPY (with tax 6,050JPY)
15438
VMP5000/XX
5000 20 14.7 A PEEK® Ni plating annealed copper wir 9.6mm 37.2Ω/km～500MΩ/km 700 V 250℃ -
stock
6 1-2 Business Days
When out of stock
11 Business Days
11,000JPY (with tax 12,100JPY)
12628

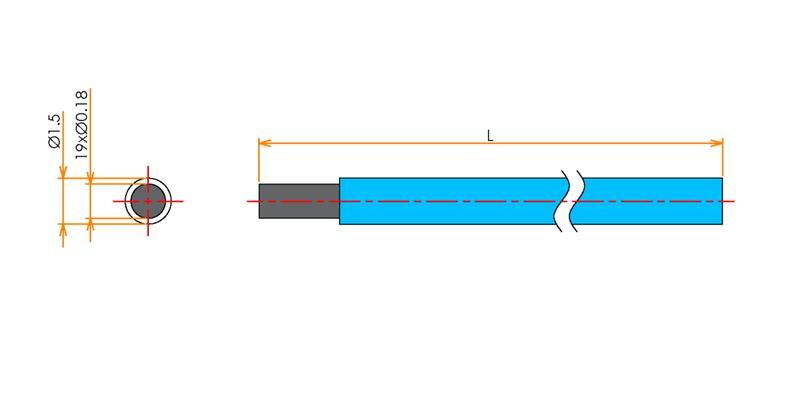

V2K8AT1000/XX
1000 20 8 A PTFE Ag-plated copper wire 7.1mm - 2 kV 200℃ -
stock
26 1-2 Business Days
When out of stock
10 Business Days
2,500JPY (with tax 2,750JPY)
60227

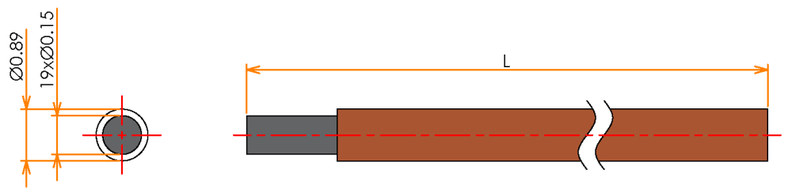

V2K6AT1000/XX
1000 22 11 A Kapton ® Ag-plated copper wire 6.35mm 58.6 Ω/km 2 kV 250℃ -
stock
19 1-2 Business Days
When out of stock
10 Business Days
2,400JPY (with tax 2,640JPY)
L AWG # Electric current / 1 pc. Cable sheathing conductor Bending radius Conductor resistance (20 ° C. · Withstand voltage: DC Maximum temperature terminal processing
To detail page Contact Us

Filter by model

stock status

L

Electric current / 1 pc.

Withstand voltage: DC

AWG #

Cable sheathing

terminal processing

接続部品 真空側ケーブル admin.label.item.catalog_image
Connection parts
Connection parts crimp type 10 pieces for socket contact φ1.6
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147
Model:SVC16
7,100JPY (with tax 7,810JPY)
