▼ Feedthrough Coaxial BNC Floating Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
BNC connector connections on both vacuum and atmospheric sides
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
Ground shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)
▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | BNC |
| Connection type | Double-Ended |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
| Classification | Flanged terminal |
| type | Floating shield |
| Impedance | 50 Ω |
| frequency | 4000 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 1 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | Compliant |
| Total current/1 terminal | 9.9 A |
※ Please click on the product code or model for more information.
front.product.product_code Model |

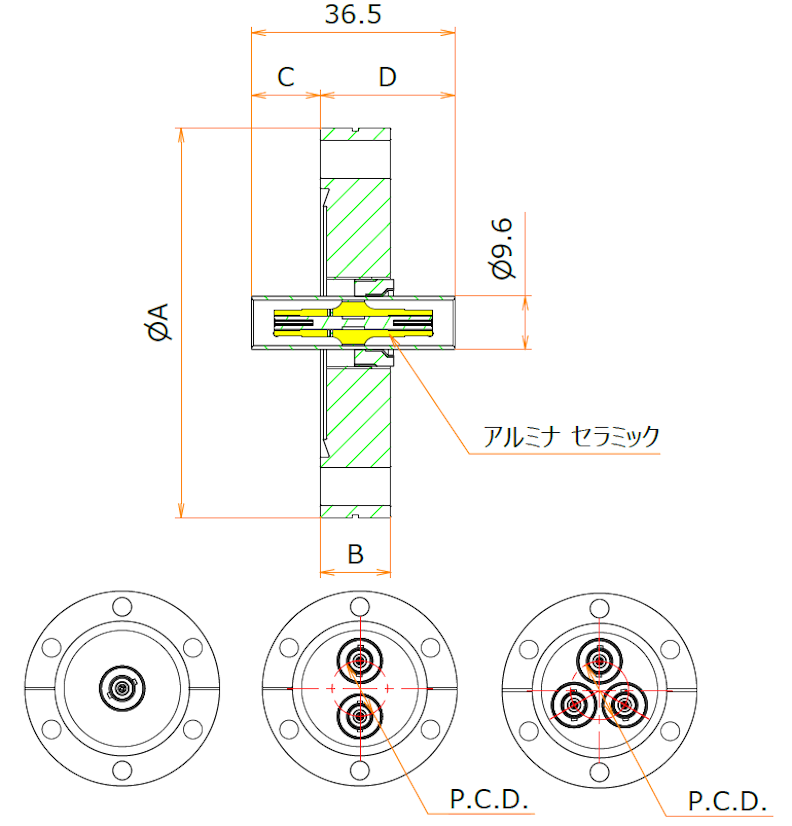

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 4.8 | 3.5 | 33 | - | 1 |
stock
4
1-2 Business Days
waiting for completion
2
Arrival on Apr 23,2027
When out of stock
Answered later
|
70,200JPY
(with tax 77,220JPY)
|
|
| 25 | - | - | - | 40 | 6 | 11 | 25.5 | - | 1 |
stock
13
1-2 Business Days
When out of stock
Answered later
|
77,500JPY
(with tax 85,250JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | - | 1 |
stock
10
1-2 Business Days
When out of stock
15 Business Days
|
70,700JPY
(with tax 77,770JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | 20 | 2 |
When out of stock
15 Business Days
|
146,900JPY
(with tax 161,590JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | 21 | 3 |
When out of stock
Answered later
|
207,200JPY
(with tax 227,920JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | - | 1 |
When out of stock
Answered later
|
78,400JPY
(with tax 86,240JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 20 | 2 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
147,400JPY
(with tax 162,140JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 21 | 3 |
When out of stock
Answered later
|
207,700JPY
(with tax 228,470JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 28 | 4 |
stock
5
1-2 Business Days
When out of stock
Answered later
|
265,800JPY
(with tax 292,380JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 12 | 24.5 | - | 1 |
stock
5
1-2 Business Days
When out of stock
15 Business Days
|
78,400JPY
(with tax 86,240JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | - | 1 |
stock
1
1-2 Business Days
waiting for completion
3
Arrival on Nov 19,2026
When out of stock
Answered later
|
79,700JPY
(with tax 87,670JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | 20 | 2 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
148,800JPY
(with tax 163,680JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | 21 | 3 |
stock
7
1-2 Business Days
When out of stock
Answered later
|
209,000JPY
(with tax 229,900JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 30 | 1 |
When out of stock
15 Business Days
|
79,800JPY
(with tax 87,780JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 30 | 2 |
When out of stock
15 Business Days
|
141,200JPY
(with tax 155,320JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 30 | 3 |
When out of stock
15 Business Days
|
200,800JPY
(with tax 220,880JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 39 | 4 |
stock
4
1-2 Business Days
When out of stock
15 Business Days
|
261,300JPY
(with tax 287,430JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 44 | 5 |
When out of stock
15 Business Days
|
321,800JPY
(with tax 353,980JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 44 | 6 |
When out of stock
15 Business Days
|
382,300JPY
(with tax 420,530JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 44 | 7 |
When out of stock
15 Business Days
|
442,800JPY
(with tax 487,080JPY)
|
|
| - | - | 20 | - | 80 | 8 | 13.5 | 23 | - | 1 |
When out of stock
Answered later
|
79,500JPY
(with tax 87,450JPY)
|
|
| - | - | 25 | - | 90 | 8 | 13.5 | 23 | - | 1 |
When out of stock
Answered later
|
80,300JPY
(with tax 88,330JPY)
|
|
| - | - | 25 | - | 90 | 8 | 13.5 | 23 | 20 | 2 |
When out of stock
Answered later
|
149,400JPY
(with tax 164,340JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | - | 1 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
81,400JPY
(with tax 89,540JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | 20 | 2 |
When out of stock
Answered later
|
150,500JPY
(with tax 165,550JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | 25 | 3 |
When out of stock
Answered later
|
210,800JPY
(with tax 231,880JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | 30 | 4 |
stock
3
1-2 Business Days
waiting for completion
3
Arrival on Jan 06,2027
When out of stock
Answered later
|
268,900JPY
(with tax 295,790JPY)
|
|
| - | - | - | 20 | 80 | 8 | 13.5 | 23 | - | 1 |
When out of stock
Answered later
|
79,500JPY
(with tax 87,450JPY)
|
|
| - | - | - | 25 | 90 | 8 | 13.5 | 23 | - | 1 |
When out of stock
Answered later
|
80,300JPY
(with tax 88,330JPY)
|
|
| - | - | - | 25 | 90 | 8 | 13.5 | 23 | 20 | 2 |
When out of stock
Answered later
|
149,400JPY
(with tax 164,340JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | - | 1 |
When out of stock
Answered later
|
81,400JPY
(with tax 89,540JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 20 | 2 |
When out of stock
Answered later
|
150,500JPY
(with tax 165,550JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 25 | 3 |
When out of stock
Answered later
|
210,800JPY
(with tax 231,880JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 30 | 4 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
268,900JPY
(with tax 295,790JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
