  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-JJ-F with 1 VF25 flange

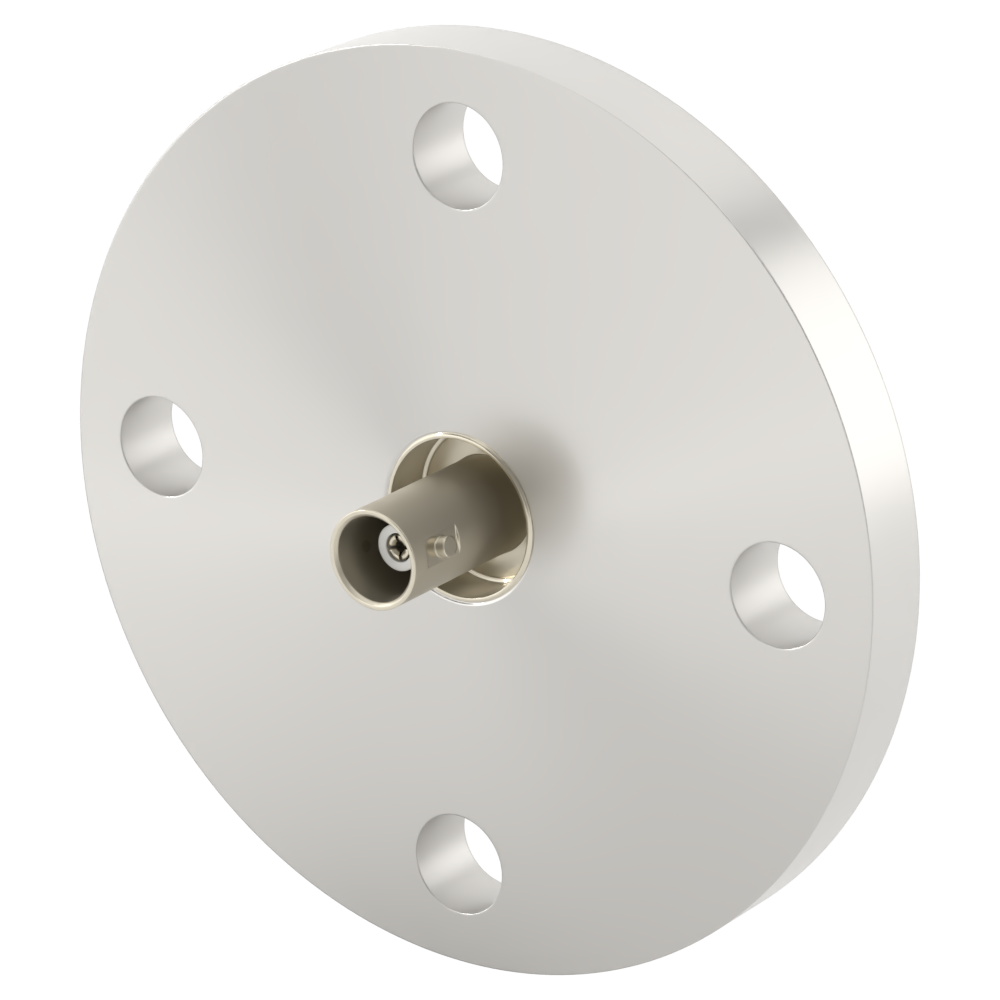

Coaxial BNC-JJ-F with 1 VF25 flange

同軸 BNC-JJ-F 1個付き VF25フランジ

Mouse over the image to enlarge it

同軸 BNC-JJ-F 1個付き VF25フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11603 Model:F25BJF1

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
BNC connector connections on both vacuum and atmospheric sides
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 4000 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Total current/1 terminal 9.9 A
73,000 JPY (with tax 80,300JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11603
F25BJF1
- - 25 - 90 8 13.5 23 - 1
When out of stock
30 Business Days
73,000JPY (with tax 80,300JPY)
同軸 BNC-JJ-F 1個付き VF25フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 25 - 90 8 13.5 23 - 1
Coaxial BNC-JJ-F with 1 VF25 flange
Product code :11603    Model:F25BJF1
73,000JPY (with tax 80,300JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 BNC-JJ-F 1個付き VF25フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection parts Vacuum side Cable with connector on both sides L=1000 for BNC-JJ/BNC-JJ-F
Connection parts Vacuum side Cable with connector on both sides L=1000 for BNC-JJ/BNC-JJ-F
Product code :14432
Model:VCK1000BP/BP
36,000JPY (with tax 39,600JPY)
Connection parts Vacuum side Cable with one side connector for BNC-JJ/BNC-JJ-F L=1000
Connection parts Vacuum side Cable with one side connector for BNC-JJ/BNC-JJ-F L=1000
Product code :14433
Model:VCK1000X/BP
23,000JPY (with tax 25,300JPY)
For connecting parts atmosphere side plug BNC
For connecting parts atmosphere side plug BNC
Product code :10017
Model:ASP-BNC
700JPY (with tax 770JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
For connecting parts air-side cable BNC 3D-2V L = 1000
For connecting parts air-side cable BNC 3D-2V L = 1000
Product code :14447
Model:ACV1000B/XX
300JPY (with tax 330JPY)
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Product code :14456
Model:ACV1000BP/BP
2,600JPY (with tax 2,860JPY)
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Product code :14457
Model:ACV1000X/BP
1,800JPY (with tax 1,980JPY)
Related products
BOLT/NUT/WASHER with hexagon socket for VF/VG10 to 25 25 pairs
BOLT/NUT/WASHER with hexagon socket for VF/VG10 to 25 25 pairs
Product code :25549
Model:BNW-M8X30LB
3,500JPY (with tax 3,850JPY)
V40 O-ring for Viton® VF/VG25
V40 O-ring for Viton® VF/VG25
Product code :20263
Model:V40
900JPY (with tax 990JPY)
VG25 Blank flange
VG25 Blank flange
Product code :20274
Model:VG25BK
3,700JPY (with tax 4,070JPY)
