  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-JJ-F with 3 pcs ICF70 Flange

Coaxial BNC-JJ-F with 3 pcs ICF70 Flange

同軸 BNC-JJ-F 3個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 BNC-JJ-F 3個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10038 Model:C70BJF3

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
BNC connector connections on both vacuum and atmospheric sides
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 4000 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Total current/1 terminal 9.9 A
190,000 JPY (with tax 209,000JPY)
stock
4
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model

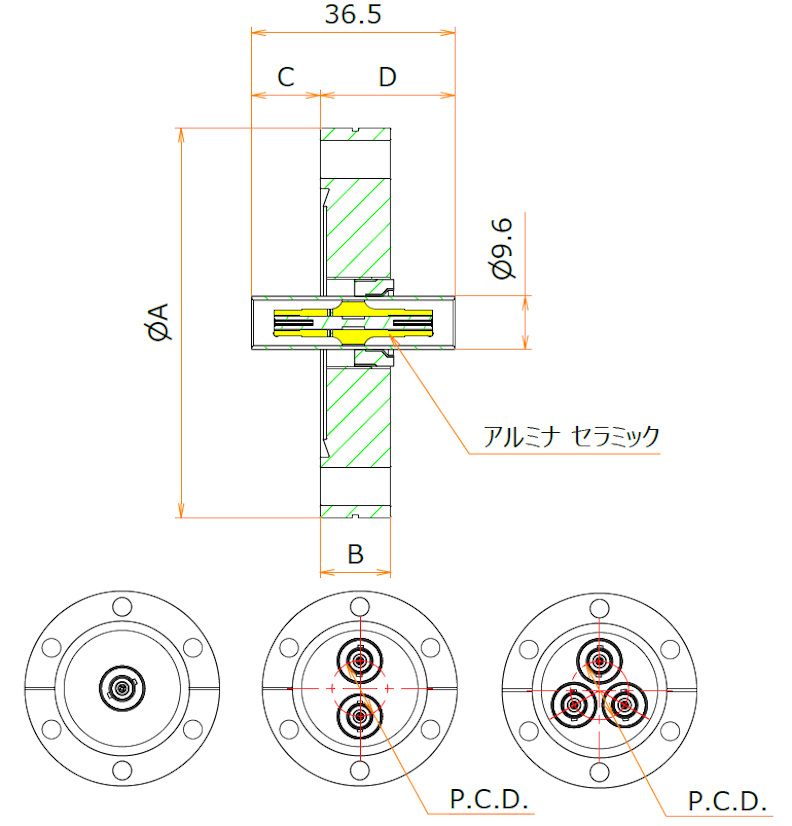

 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10038
C70BJF3
- 70 - - 70 12.7 11.5 25 21 3
stock
4 1-2 Business Days
When out of stock
30 Business Days
190,000JPY (with tax 209,000JPY)
同軸 BNC-JJ-F 3個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 11.5 25 21 3
Coaxial BNC-JJ-F with 3 pcs ICF70 Flange
Product code :10038    Model:C70BJF3
190,000JPY (with tax 209,000JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 BNC-JJ-F 3個付き ICF70 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
