Feedthrough coaxial BNC-JJ ground shield on both s
Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
BNC connector connections on both vacuum and atmospheric sides
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
Floating shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)
▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | BNC |
| Connection type | Vacuum side and the atmosphere |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Classification | Flanged terminal |
| type | Ground shield |
| Impedance | 50 Ω |
| frequency | 4000 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 1 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | ○ |
We have 26 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

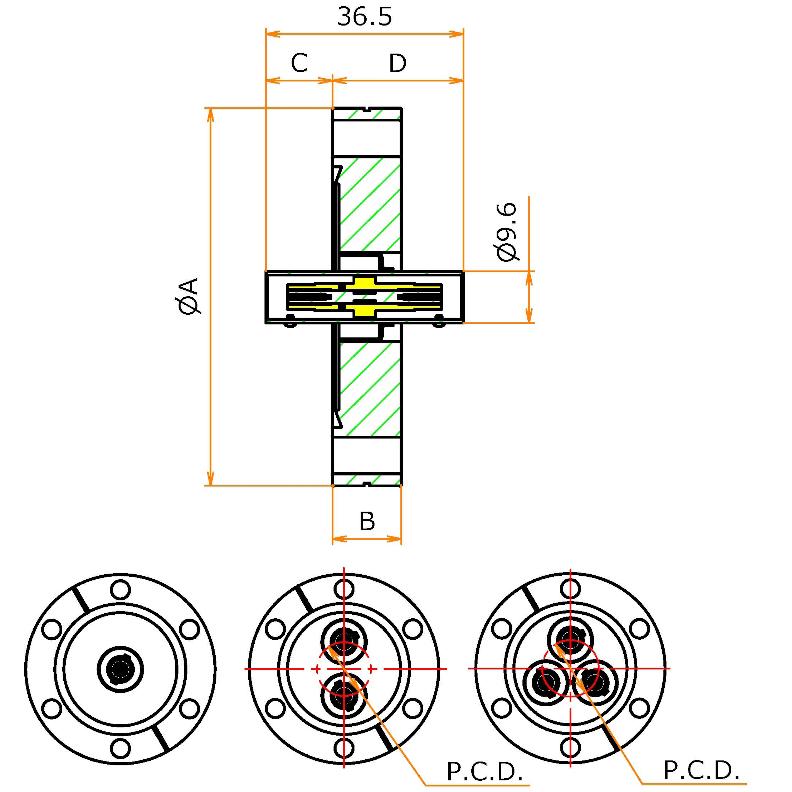

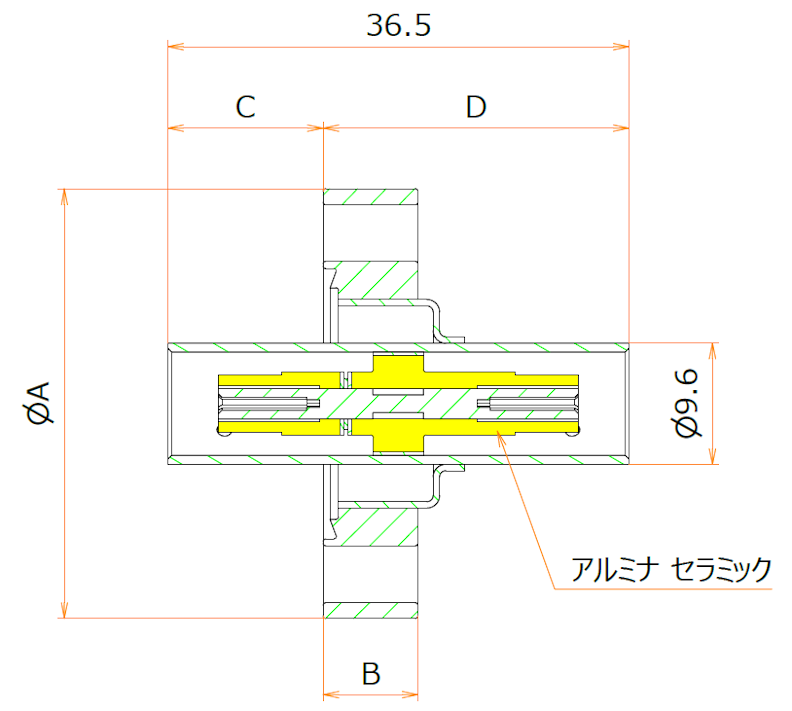

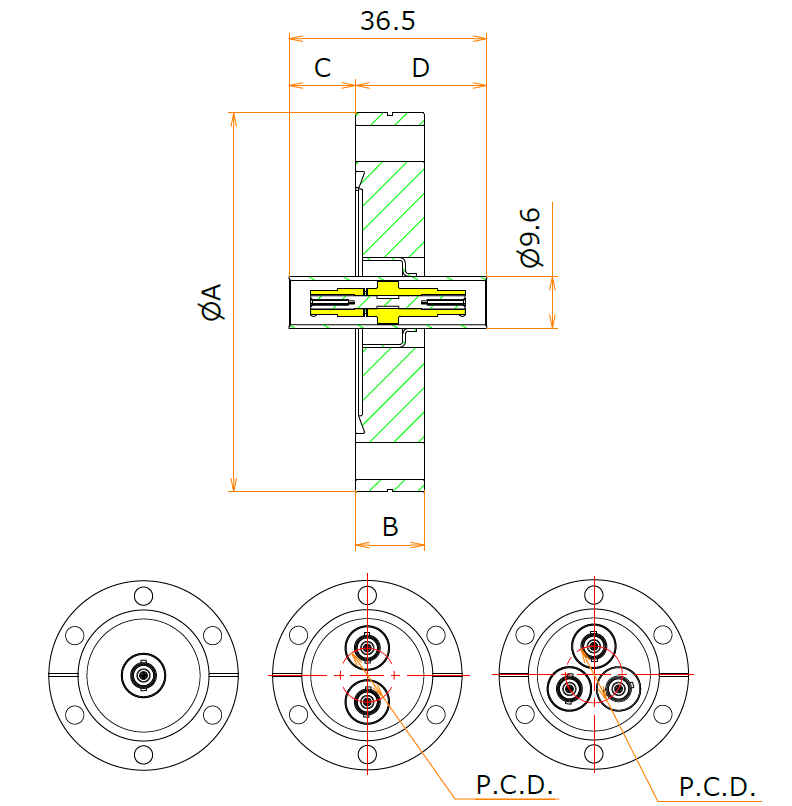

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 4.8 | 3.5 | 33 | - | 1 |
stock
11
1-2 Business Days
When out of stock
21 Business Days
|
61,000JPY
(with tax 67,100JPY)
|
|
| 25 | - | - | - | 40 | 6 | 11 | 25.5 | - | 1 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
61,200JPY
(with tax 67,320JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | - | 1 |
stock
4
1-2 Business Days
When out of stock
30 Business Days
|
61,500JPY
(with tax 67,650JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | 20 | 2 |
stock
5
1-2 Business Days
When out of stock
30 Business Days
|
119,300JPY
(with tax 131,230JPY)
|
|
| 40 | - | - | - | 55 | 6 | 11 | 25.5 | 21 | 3 |
stock
5
1-2 Business Days
When out of stock
30 Business Days
|
169,200JPY
(with tax 186,120JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | - | 1 |
When out of stock
30 Business Days
|
62,000JPY
(with tax 68,200JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 20 | 2 |
When out of stock
30 Business Days
|
119,800JPY
(with tax 131,780JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 21 | 3 |
When out of stock
30 Business Days
|
169,700JPY
(with tax 186,670JPY)
|
|
| 50 | - | - | - | 75 | 6 | 11 | 25.5 | 28 | 4 |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
201,900JPY
(with tax 222,090JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 12 | 24.5 | - | 1 |
stock
6
1-2 Business Days
When out of stock
30 Business Days
|
62,000JPY
(with tax 68,200JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | - | 1 |
stock
29
1-2 Business Days
When out of stock
30 Business Days
|
63,200JPY
(with tax 69,520JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | 20 | 2 |
stock
25
1-2 Business Days
When out of stock
30 Business Days
|
121,000JPY
(with tax 133,100JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 11.5 | 25 | 21 | 3 |
stock
17
1-2 Business Days
waiting for completion
10
Arrival on Apr 03,2025
When out of stock
30 Business Days
|
170,900JPY
(with tax 187,990JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 11.5 | 25 | 30 | 4 |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
214,500JPY
(with tax 235,950JPY)
|
|
| - | - | 20 | - | 80 | 8 | 13.5 | 23 | - | 1 |
When out of stock
30 Business Days
|
63,000JPY
(with tax 69,300JPY)
|
|
| - | - | 25 | - | 90 | 8 | 13.5 | 23 | - | 1 |
When out of stock
30 Business Days
|
63,800JPY
(with tax 70,180JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | - | 1 |
When out of stock
30 Business Days
|
64,800JPY
(with tax 71,280JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | 20 | 2 |
When out of stock
30 Business Days
|
122,600JPY
(with tax 134,860JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 23 | 25 | 3 |
When out of stock
30 Business Days
|
172,500JPY
(with tax 189,750JPY)
|
|
| - | - | 40 | - | 105 | 10 | 13.5 | 13 | 30 | 4 |
When out of stock
21 Business Days
|
206,000JPY
(with tax 226,600JPY)
|
|
| - | - | - | 20 | 80 | 8 | 13.5 | 23 | - | 1 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
63,000JPY
(with tax 69,300JPY)
|
|
| - | - | - | 25 | 90 | 8 | 13.5 | 23 | - | 1 |
When out of stock
30 Business Days
|
63,800JPY
(with tax 70,180JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | - | 1 |
When out of stock
30 Business Days
|
64,800JPY
(with tax 71,280JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 20 | 2 |
When out of stock
30 Business Days
|
122,600JPY
(with tax 134,860JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 25 | 3 |
When out of stock
30 Business Days
|
172,500JPY
(with tax 189,750JPY)
|
|
| - | - | - | 40 | 105 | 10 | 13.5 | 23 | 30 | 4 |
When out of stock
21 Business Days
|
206,000JPY
(with tax 226,600JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
