  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-JJ with 1 ICF34 Flange

Coaxial BNC-JJ with 1 ICF34 Flange

同軸 BNC-JJ 1個付き ICF34 フランジ

Mouse over the image to enlarge it

同軸 BNC-JJ 1個付き ICF34 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10023 Model:C34BJ1

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
BNC connector connections on both vacuum and atmospheric sides
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 4000 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
62,000 JPY (with tax 68,200JPY)
stock
6
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10023
C34BJ1
- 34 - - 34 7.5 12 24.5 - 1
stock
6 1-2 Business Days
When out of stock
30 Business Days
62,000JPY (with tax 68,200JPY)
同軸 BNC-JJ 1個付き ICF34 フランジ admin.label.item.size_image

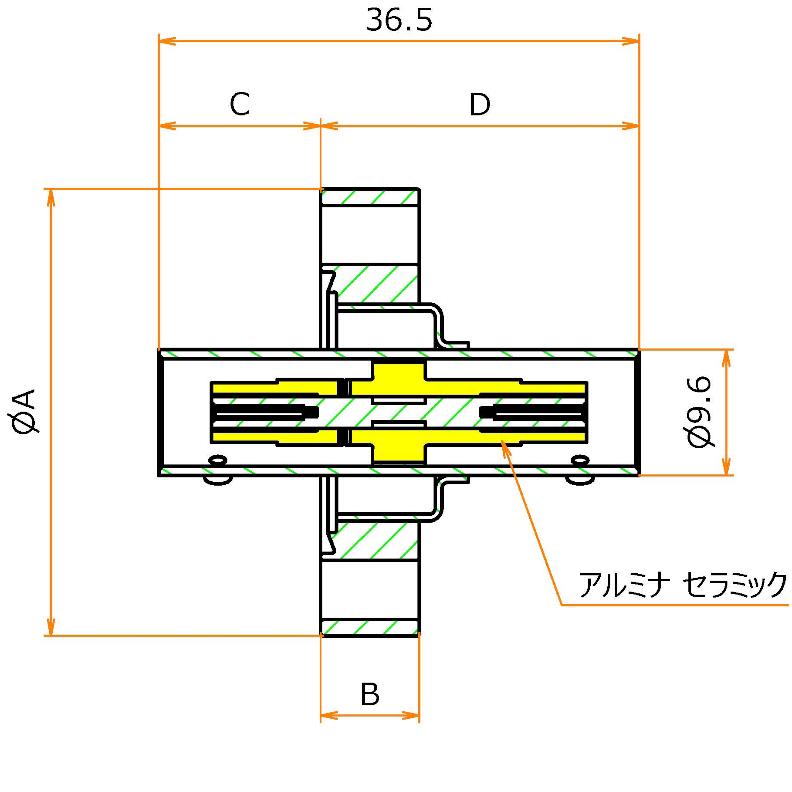

NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 34 - - 34 7.5 12 24.5 - 1
Coaxial BNC-JJ with 1 ICF34 Flange
Product code :10023    Model:C34BJ1
62,000JPY (with tax 68,200JPY)
