  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-JJ with 2 pcs. VF40 Flange

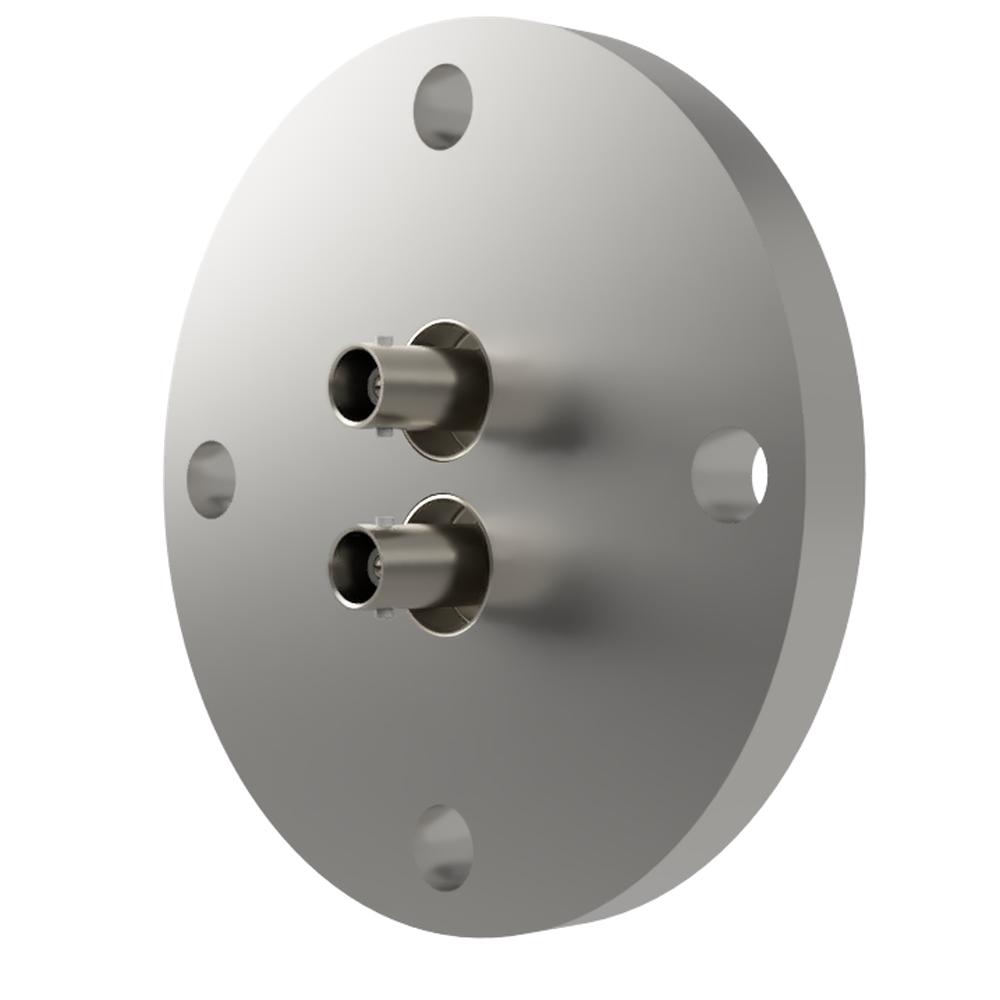

Coaxial BNC-JJ with 2 pcs. VF40 Flange

同軸 BNC-JJ 2個付き VF40 フランジ

Mouse over the image to enlarge it

同軸 BNC-JJ 2個付き VF40 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10832 Model:F40BJ2

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
BNC connector connections on both vacuum and atmospheric sides
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Floating shield
Plug mating on one side
Electrode tip M2 screw (one side plug type)
High voltage 5kV (one side plug type)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 4000 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
122,600 JPY (with tax 134,860JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10832
F40BJ2
- - 40 - 105 10 13.5 23 20 2
When out of stock
30 Business Days
122,600JPY (with tax 134,860JPY)
同軸 BNC-JJ 2個付き VF40 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 40 - 105 10 13.5 23 20 2
Coaxial BNC-JJ with 2 pcs. VF40 Flange
Product code :10832    Model:F40BJ2
122,600JPY (with tax 134,860JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 BNC-JJ 2個付き VF40 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection parts Vacuum side Cable with connector on both sides L=1000 for BNC-JJ/BNC-JJ-F
Connection parts Vacuum side Cable with connector on both sides L=1000 for BNC-JJ/BNC-JJ-F
Product code :14432
Model:VCK1000BP/BP
36,000JPY (with tax 39,600JPY)
Connection parts Vacuum side Cable with one side connector for BNC-JJ/BNC-JJ-F L=1000
Connection parts Vacuum side Cable with one side connector for BNC-JJ/BNC-JJ-F L=1000
Product code :14433
Model:VCK1000X/BP
23,000JPY (with tax 25,300JPY)
For connecting parts atmosphere side plug BNC
For connecting parts atmosphere side plug BNC
Product code :10017
Model:ASP-BNC
700JPY (with tax 770JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
For connecting parts air-side cable BNC 3D-2V L = 1000
For connecting parts air-side cable BNC 3D-2V L = 1000
Product code :14447
Model:ACV1000B/XX
300JPY (with tax 330JPY)
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Connection parts atmosphere side both sides with a plug cable BNC for L = 1000
Product code :14456
Model:ACV1000BP/BP
2,600JPY (with tax 2,860JPY)
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Connection parts atmosphere side one side plug cable with BNC for L = 1000
Product code :14457
Model:ACV1000X/BP
1,800JPY (with tax 1,980JPY)
Related products
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Product code :25550
Model:BNW-M8X35LB
3,700JPY (with tax 4,070JPY)
V55 O-ring for Viton® VF/VG40
V55 O-ring for Viton® VF/VG40
Product code :20264
Model:V55
1,100JPY (with tax 1,210JPY)
VG40 Blank flange
VG40 Blank flange
Product code :20472
Model:VG40BK
4,700JPY (with tax 5,170JPY)
