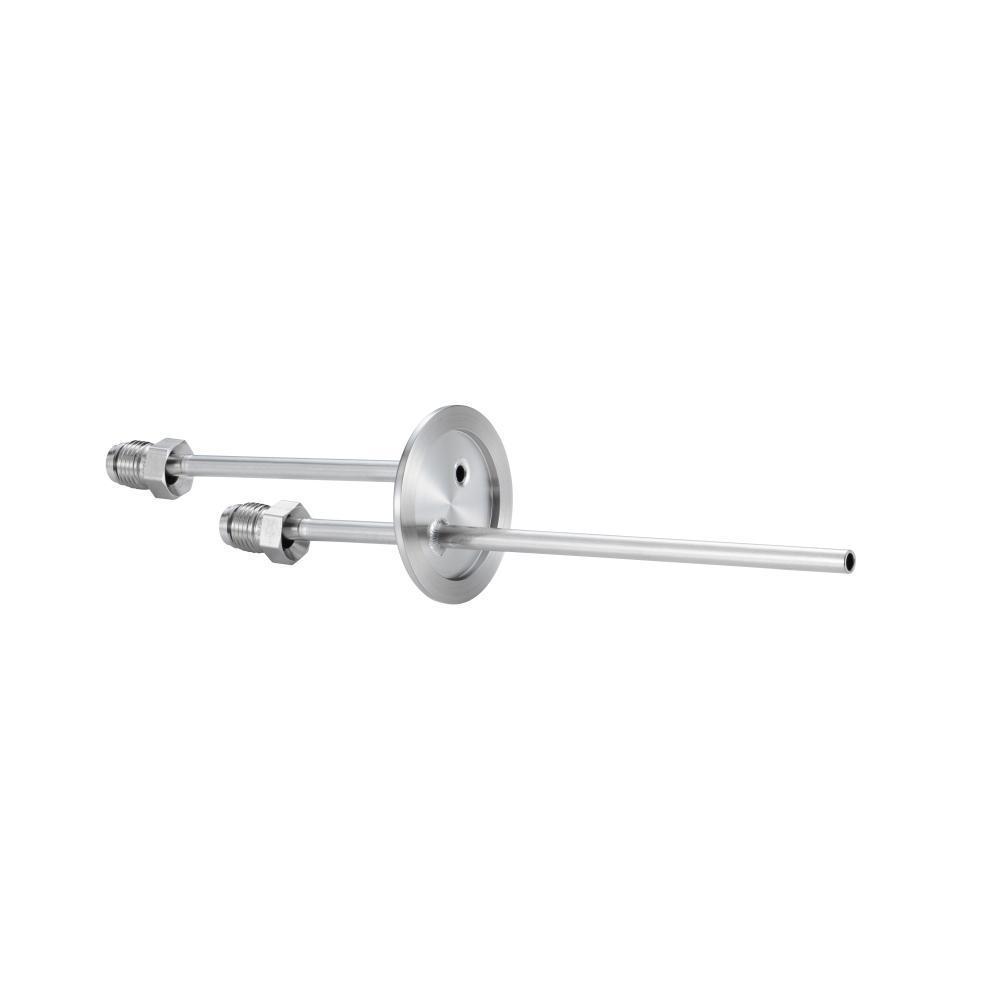

NW50+1/4 Bubbling Osusu VCR® Adapter

NW50+1/4 バブリング おすVCR®アダプタ

Mouse over the image to enlarge it

NW50+1/4 バブリング おすVCR®アダプタ
share the productshare the product
Facebook
LINE
Twitter
Product code :21630 Model:NW50B1/4MT

▼Bubbling Adapter
Flange for material gas generator
Can also be used to introduce cooling water or gas.
Only one of the two tubes penetrates the vacuum side.
Tube diameter (inch): 1/4, 3/8, 1/2

▼The following types are standardized (list)
Fittings: Inch tubing with Swagelok® Tube fittings, VCR® fittings
Flanges: ICF, NW/KF
We also offer water-cooled gas induction units with both vacuum side feedthroughs.
Water-cooled terminals are also available for current induction and water-cooling.

▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Flange material SUS 304
Tubes / Pipes SUS 304
Fittings SUS 316
RoHS2 corresponding ○
35,600 JPY (with tax 39,160JPY)
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF Tube / Fitting Size Joint standard B C D
Stock & Delivery
front.product.price
front.product.tax_included2
21630
NW50B1/4MT
50 - 1/4 inch VCR® M 125 125 75
When out of stock
Answered later
35,600JPY (with tax 39,160JPY)
NW50+1/4 バブリング おすVCR®アダプタ admin.label.item.size_image
NW/KF ICF Tube / Fitting Size Joint standard B C D
50 - 1/4 inch VCR® M 125 125 75
NW50+1/4 Bubbling Osusu VCR® Adapter
Product code :21630    Model:NW50B1/4MT
35,600JPY (with tax 39,160JPY)
