  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. High-voltage
  4. Feedthrough high-voltage water-cooled terminal

Feedthrough high-voltage water-cooled terminal Product List Feedthrough 

Subcategory 1Matter (1 ~1 )

Products 36Matter (1 ~20 )

Displayed results
Display switching
  • Product code :60089
    Model:60089

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    Withstand voltage: DC 8 kV
    sleeve SUS04
    9,900JPY (with tax 10,890JPY)
    Inquiry for this product
  • Product code :60108
    Model:60108

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Tube / Fitting Size 3/8 inch
    electrode Oxygen-free copper
    Withstand voltage: DC 8 kV
    sleeve SUS04
    12,000JPY (with tax 13,200JPY)
    Inquiry for this product
  • Product code :21179
    Model:N25KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 16
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 30
    B 4.8
    C 94.6
    D 89.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    55,200JPY (with tax 60,720JPY)
    Inquiry for this product
  • Product code :21180
    Model:N35KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 25
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 40
    B 6
    C 102.1
    D 82
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    55,400JPY (with tax 60,940JPY)
    Inquiry for this product
  • Product code :21181
    Model:N45KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 40
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 55
    B 6
    C 102.1
    D 82
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    61,300JPY (with tax 67,430JPY)
    Inquiry for this product

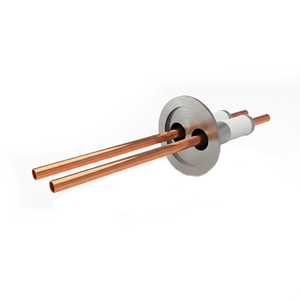

  • Product code :21182
    Model:N45KLF2CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 40
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 55
    B 6
    C 102.1
    D 82
    P.C.D 20
    The number of electrode 2
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    119,600JPY (with tax 131,560JPY)
    Inquiry for this product

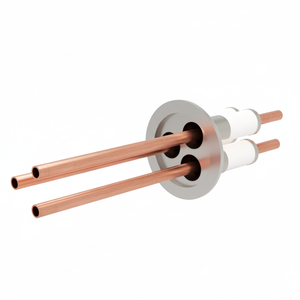

  • Product code :21183
    Model:N45KLF3CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 40
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 55
    B 6
    C 102.1
    D 82
    P.C.D 21
    The number of electrode 3
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    171,500JPY (with tax 188,650JPY)
    Inquiry for this product
  • Product code :41119
    Model:N55KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 50
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 75
    B 6
    C 102.1
    D 82
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    61,900JPY (with tax 68,090JPY)
    Inquiry for this product
  • Product code :41120
    Model:N55KLF2CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 50
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 75
    B 6
    C 102.1
    D 82
    P.C.D 20
    The number of electrode 2
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    120,200JPY (with tax 132,220JPY)
    Inquiry for this product
  • Product code :41121
    Model:N55KLF3CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    NW/KF 50
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 75
    B 6
    C 102.1
    D 82
    P.C.D 21
    The number of electrode 3
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    172,100JPY (with tax 189,310JPY)
    Inquiry for this product
  • Product code :21184
    Model:C15KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    ICF 34
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 34
    B 7.5
    C 91.4
    D 92.7
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    56,200JPY (with tax 61,820JPY)
    Inquiry for this product
  • Product code :21185
    Model:C25KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    ICF 70
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 70
    B 12.7
    C 102.6
    D 81.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    63,200JPY (with tax 69,520JPY)
    Inquiry for this product
  • Product code :21186
    Model:C25KLF2CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    ICF 70
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 70
    B 12.7
    C 102.6
    D 81.5
    P.C.D 20
    The number of electrode 2
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    121,500JPY (with tax 133,650JPY)
    Inquiry for this product

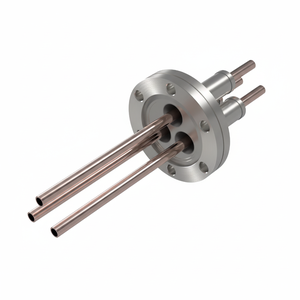

  • Product code :21187
    Model:C25KLF3CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    ICF 70
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 70
    B 12.7
    C 102.6
    D 81.5
    P.C.D 21
    The number of electrode 3
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    173,400JPY (with tax 190,740JPY)
    Inquiry for this product
  • Product code :21188
    Model:F25KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    VF 20
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 80
    B 8
    C 104.6
    D 79.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    63,000JPY (with tax 69,300JPY)
    Inquiry for this product

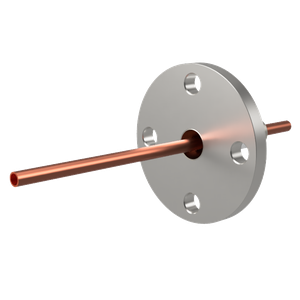

  • Product code :21192
    Model:F35KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    VF 25
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 90
    B 8
    C 104.6
    D 79.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    63,800JPY (with tax 70,180JPY)
    Inquiry for this product
  • Product code :21196
    Model:G25KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    VG 20
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 80
    B 8
    C 104.6
    D 79.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    63,000JPY (with tax 69,300JPY)
    Inquiry for this product

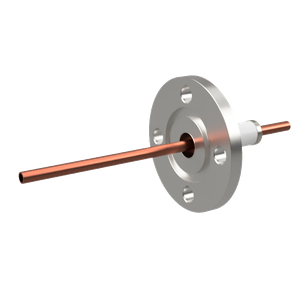

  • Product code :21200
    Model:G35KLF1CU1/4

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    VG 25
    Tube / Fitting Size 1/4 inch
    electrode Oxygen-free copper
    A 90
    B 8
    C 104.6
    D 79.5
    The number of electrode 1
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 33 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    63,800JPY (with tax 70,180JPY)
    Inquiry for this product
  • Product code :13118
    Model:C28KLF1CU3/4WT

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    ICF 70
    electrode Oxygen-free copper
    A 70
    B 12.7
    The number of electrode 1
    Withstand voltage: DC 8 kV
    Electric current / 1 pc. 1000 A
    sleeve Kovar ®
    electrode diameter 6.35mm
    344,600JPY (with tax 379,060JPY)
    Inquiry for this product
  • Product code :60039
    Model:60039

    ▼Water-cooled terminals
    Hermetic feedthroughs with hollow electrodes.
    Power can be introduced while the electrode is being cooled.
    Sometimes used for high-frequency applications.

    ▼The following types are standardized
    Electrode material: Oxygen-free copper, SUS
    Withstand voltage: 5 kV, 8 kV
    Number of electrodes: 1, 2, 3, 4
    Flange: NW/KF, ICF, JIS-VF, JIS-VG

    ▼Custom-made products are also available.
    We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type Water-cooled terminal
    Flange material SUS 304
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Tube / Fitting Size 1/4 inch
    electrode SUS 304
    The number of electrode 1
    Withstand voltage: DC 5 kV
    sleeve SUS04
    9,700JPY (with tax 10,670JPY)
    Inquiry for this product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください!

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
