  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Multi-pin
  4. BURNDY (Bionet locking type)
  5. BURNDY 10A corresponding
  6. Multi-pin BURNDY High Current 48 PIN VG 50 Flange Guided

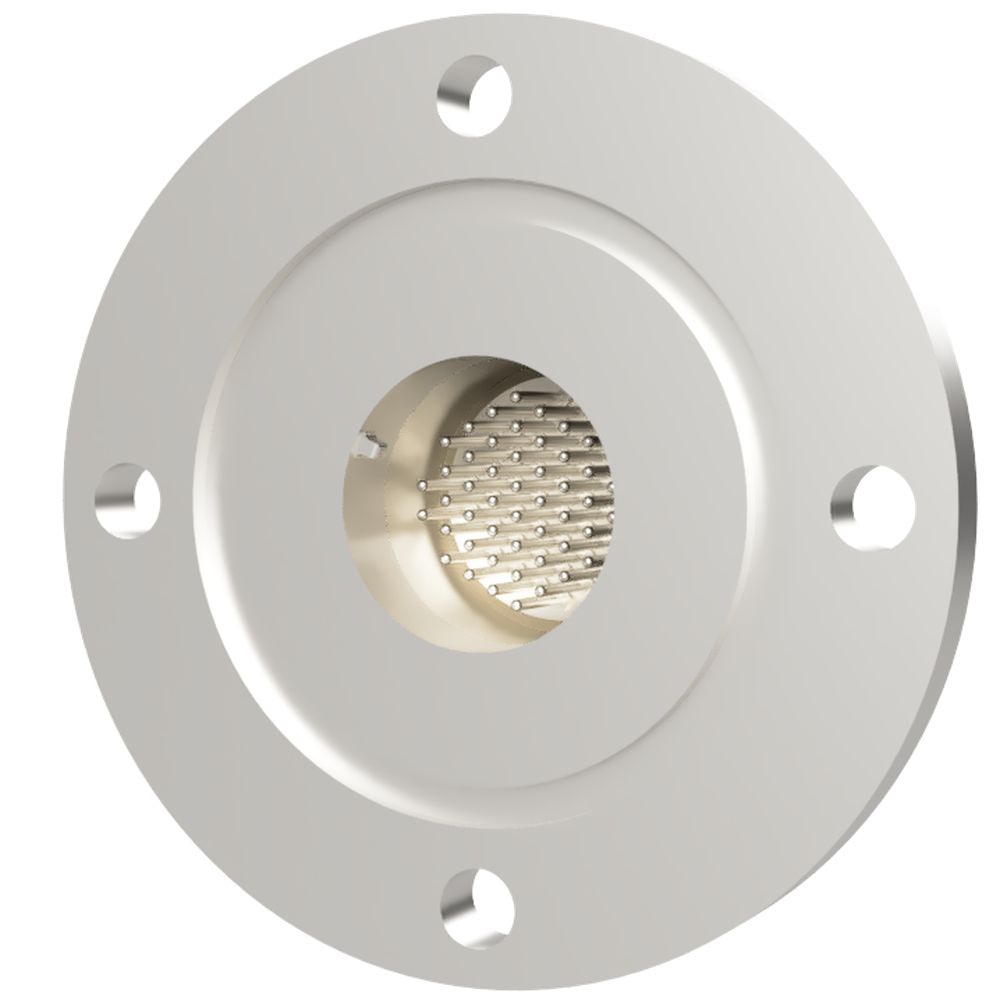

Multi-pin BURNDY High Current 48 PIN VG 50 Flange Guided

多ピン BURNDY 高電流 48 PIN VG 50 フランジ ガイド付き

Mouse over the image to enlarge it

多ピン BURNDY 高電流 48 PIN VG 50 フランジ ガイド付き
share the productshare the product
Facebook
LINE
Twitter
Product code :40513 Model:G50MB481ALGA

▼BURNDY High current type
Mates with bayonet-locking plugs
Single-ended round multi-pin terminals for measurement and control
500V 10A (per PIN)/96A (48PINs as a whole)
Easy connection by simply inserting along the guide groove even in difficult-to-see locations
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services.

▼ The following types are standardized (List)
Number of PINs: 4, 8, 12, 19, 22, 30, 48
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Standard (3A) type is available from here.

▼ Custom-made products are also available.
We also accept multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
The number of electrode 48
type High current
Electric current / 1 pc. 10 A
Total current/1 terminal 96 A
Withstand voltage: DC 500 V
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Alumel ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
40513
G50MB481ALGA
- - - 50 120 10 47 Only flanged terminal
多ピン BURNDY 高電流 48 PIN VG 50 フランジ ガイド付き admin.label.item.size_image
NW/KF ICF VF VG A B D The contents of goods
- - - 50 120 10 47 Only flanged terminal
Multi-pin BURNDY High Current 48 PIN VG 50 Flange Guided
Product code :40513    Model:G50MB481ALGA
Contact Us

Filter by model

フランジ

商品内容

多ピン BURNDY 高電流 48 PIN VG 50 フランジ ガイド付き admin.label.item.catalog_image
製品 製品コード 型式 数量
フランジ付き端子 ○○○○○ ***MB481ALG 1個
真空側PEEKインサート 16325 VSPI48GA 1個
大気側プラグ 10014 ASP48 1個
ソケットコンタクト 10147 SVC16 10本/10組

フランジ付き端子の○○○○○は5桁コード、***はフランジ規格が入ります
NW16 → N16
NW25 → N25
NW40 → N40
ICF34 → C34
ICF70 → C70
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Connection parts crimp type 10 pieces for socket contact φ1.6
Connection parts crimp type 10 pieces for socket contact φ1.6
Product code :10147
Model:SVC16
Connection piece vacuum side PEEK® insulating insert BURNDY® for 48 PIN
Connection piece vacuum side PEEK® insulating insert BURNDY® for 48 PIN
Product code :16325
Model:VSPI48GA
Connection parts atmosphere side plug BURNDY 48 for PIN
Connection parts atmosphere side plug BURNDY 48 for PIN
Product code :10014
Model:ASP48
EXTRACTION TOOL for Φ1.6
EXTRACTION TOOL for Φ1.6
Product code :14914
Model:EXT16
Crimp Tool AWG #12 - #28
Crimp Tool AWG #12 - #28
Product code :10052
Model:CT2313
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Connection parts Vacuum side Polyimide sheathed cable AWG#22 for multi-pin L=1000
Product code :17840
Model:VMK1000/XXA
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Connecting parts Vacuum side PEEK® sheathed cable AWG#20 for multiple pins L=1000
Product code :14487
Model:VMP1000/XX
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Connection part Vacuum side Socket contact with polyimide sheathed cable L=1000
Product code :18473
Model:VMK1000X/SA
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Connection parts Atmosphere side Polyethylene sheathed cable AWG#20 for multi-pin L=1000
Product code :14484
Model:AMV1000/XX
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Connection parts Atmosphere side Socket contact with polyethylene sheathed cable L=1000
Product code :14108
Model:AMV1000X/S
Connecting components Atmosphere side Plug +PE sheathed cable included BURNDY 48PIN L=1000
Connecting components Atmosphere side Plug +PE sheathed cable included BURNDY 48PIN L=1000
Product code :14502
Model:AMBV1000X/48PI
Related products
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Product code :25550
Model:BNW-M8X35LB
V70 O-ring for Viton® VF/VG50
V70 O-ring for Viton® VF/VG50
Product code :20265
Model:V70
VF50 Blank flange
VF50 Blank flange
Product code :20269
Model:VF50BK
