Feedthrough coaxial BNC-M2-F-SCREW floating shield

Feedthrough coaxial BNC-M2-F-SCREW floating shield

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, BNC connector connection on atmospheric side only
M2 thread at electrode end
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
No screw processing
Plug mating on both sides
High voltage 5kV

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

see next
Basic Information
type BNC
Connection type Single-Ended
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa・㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding Compliant
Inquiry for this subcategory

We have 34 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

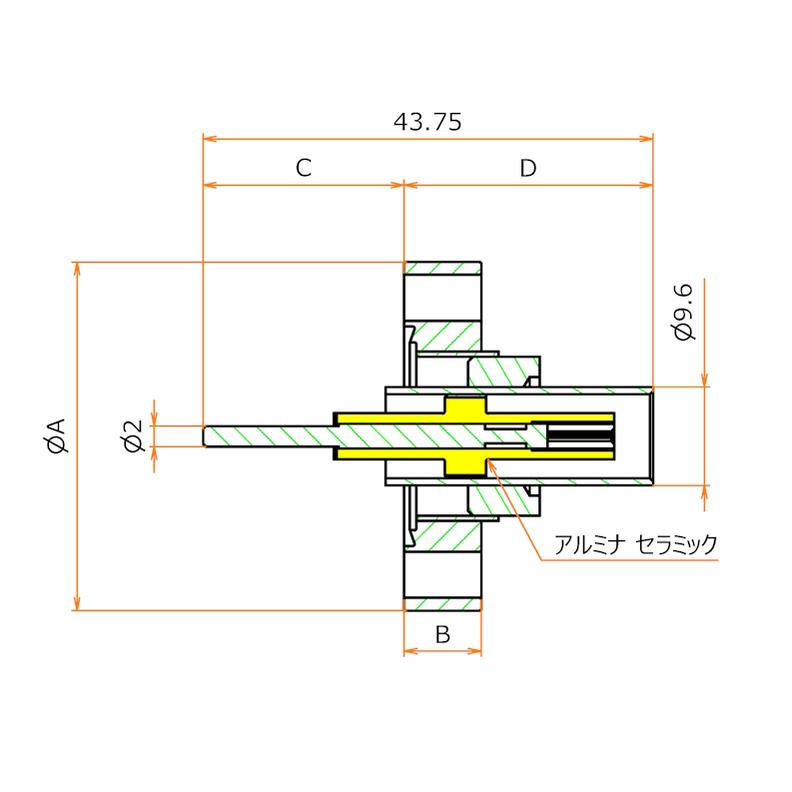

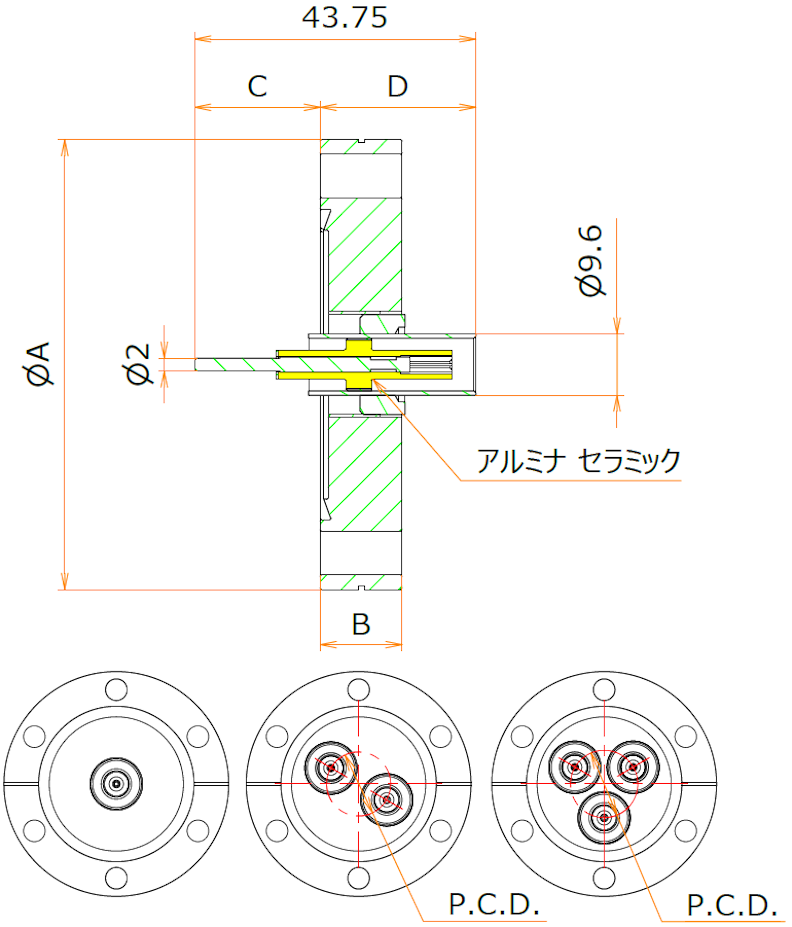

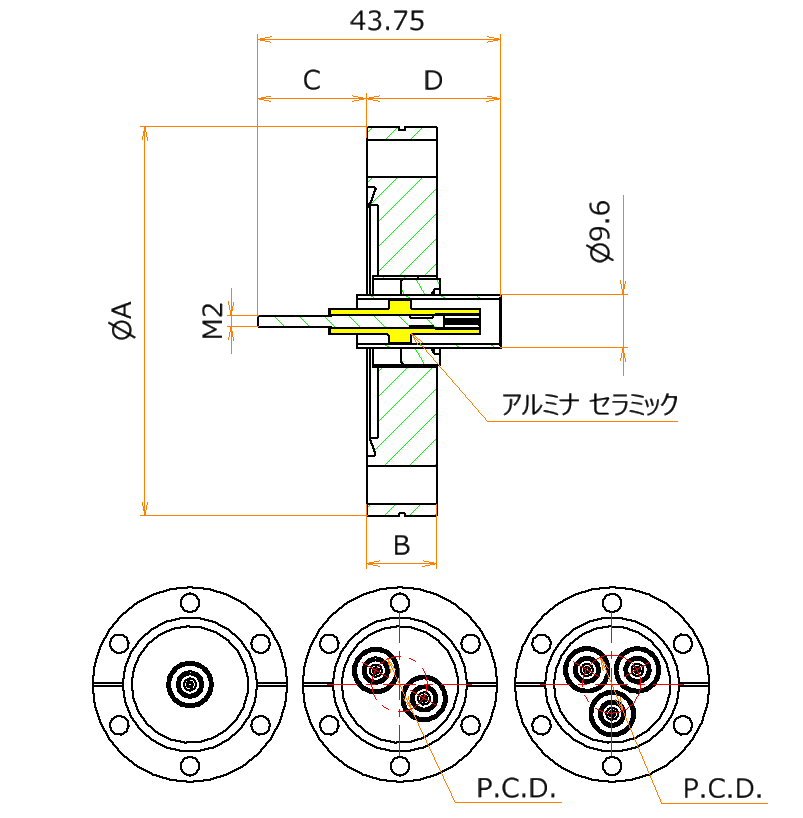

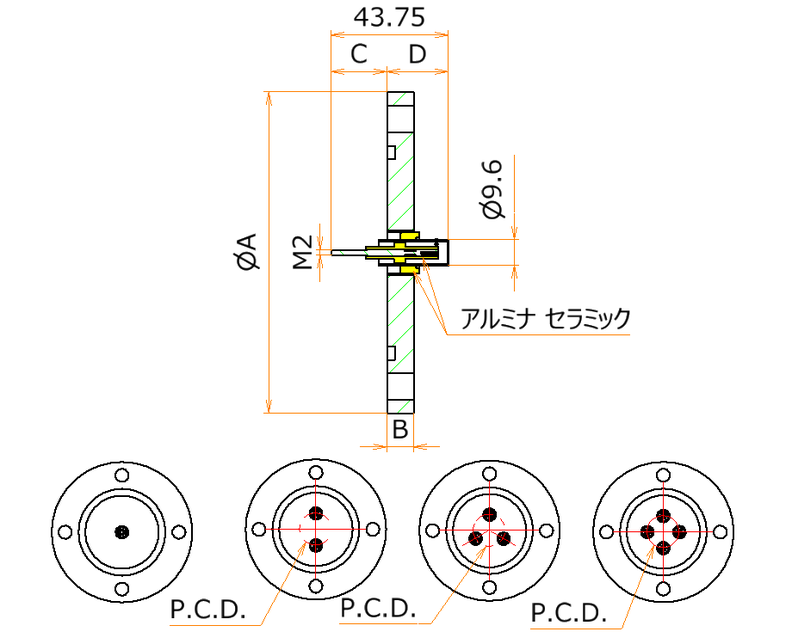

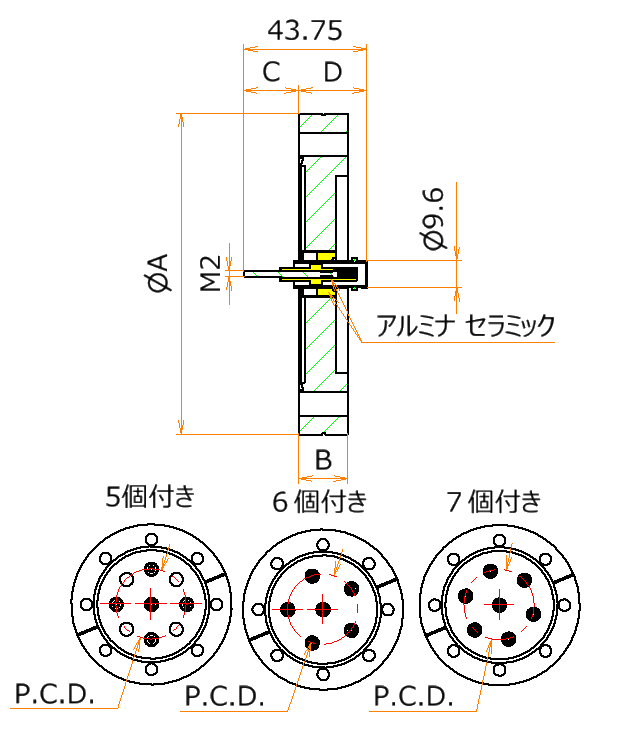

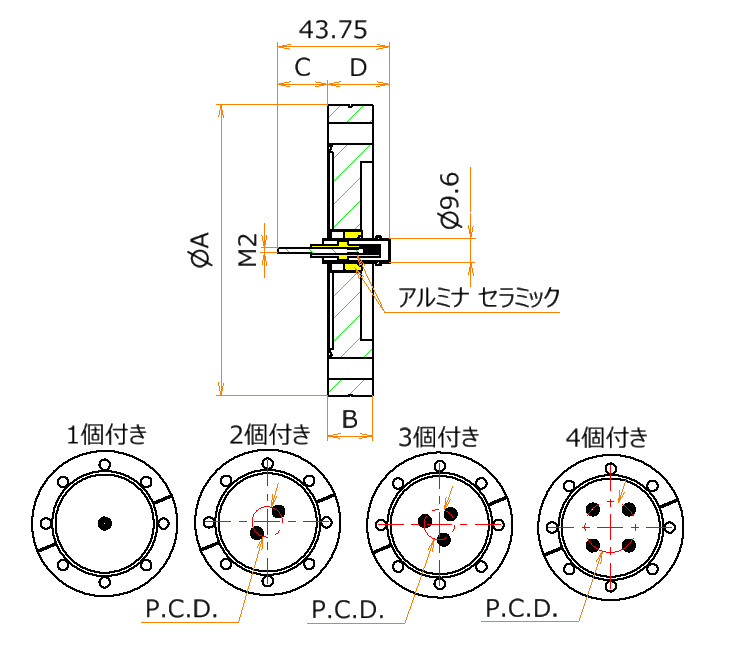

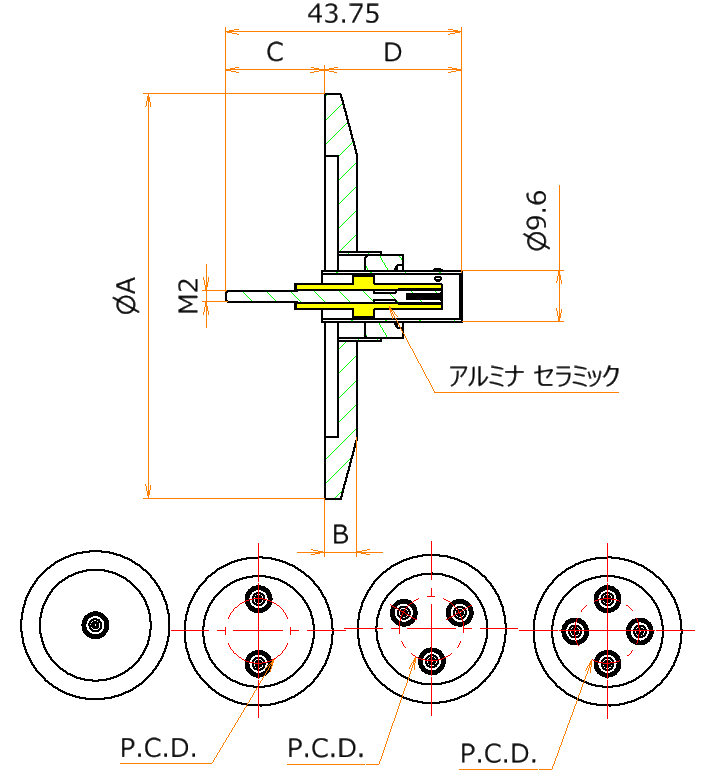

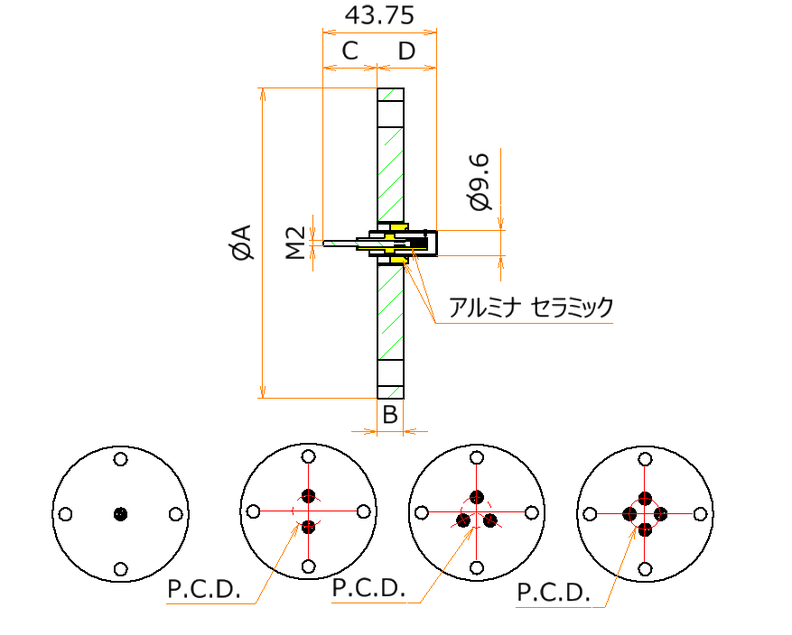

NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
16 - - - 30 4.8 10.8 33 - 1
stock
2 1-2 Business Days
When out of stock
Answered later
50,100JPY (with tax 55,110JPY)
25 - - - 40 6 18.3 25.5 - 1
stock
1 1-2 Business Days
When out of stock
15 Business Days
50,600JPY (with tax 55,660JPY)
40 - - - 55 6 18.3 25.5 - 1
When out of stock
15 Business Days
50,900JPY (with tax 55,990JPY)
40 - - - 55 6 18.3 25.5 20 2
When out of stock
Answered later
106,600JPY (with tax 117,260JPY)
40 - - - 55 6 18.3 25.5 21 3
When out of stock
Answered later
160,300JPY (with tax 176,330JPY)
50 - - - 75 6 18.3 25.5 - 1
When out of stock
15 Business Days
51,100JPY (with tax 56,210JPY)
50 - - - 75 6 18.3 25.5 20 2
When out of stock
Answered later
107,100JPY (with tax 117,810JPY)
50 - - - 75 6 18.3 25.5 21 3
When out of stock
Answered later
160,500JPY (with tax 176,550JPY)
50 - - - 75 6 18.3 25.5 28 4
When out of stock
15 Business Days
215,200JPY (with tax 236,720JPY)
- 34 - - 34 7.5 19.6 24.2 - 1
stock
3 1-2 Business Days
When out of stock
15 Business Days
52,400JPY (with tax 57,640JPY)
- 70 - - 70 12.7 19.6 24.2 - 1
stock
10 1-2 Business Days
When out of stock
15 Business Days
54,400JPY (with tax 59,840JPY)
- 70 - - 70 12.7 19.6 24.2 20 2
When out of stock
Answered later
109,100JPY (with tax 120,010JPY)
- 70 - - 70 12.7 19.6 24.2 21 3
When out of stock
Answered later
163,800JPY (with tax 180,180JPY)
- 114 - - 114 17.5 19.6 24.2 - 1
When out of stock
15 Business Days
59,700JPY (with tax 65,670JPY)
- 114 - - 114 17.5 19.6 24.2 30 2
When out of stock
15 Business Days
115,700JPY (with tax 127,270JPY)
- 114 - - 114 17.5 19.6 24.2 30 3
When out of stock
15 Business Days
169,100JPY (with tax 186,010JPY)
- 114 - - 114 17.5 19.6 24.2 39 4
When out of stock
15 Business Days
223,800JPY (with tax 246,180JPY)
- 114 - - 114 17.5 19.6 24.2 44 5
When out of stock
15 Business Days
278,500JPY (with tax 306,350JPY)
- 114 - - 114 17.5 19.6 24.2 44 6
When out of stock
15 Business Days
333,200JPY (with tax 366,520JPY)
- 114 - - 114 17.5 19.6 24.2 44 7
When out of stock
15 Business Days
387,900JPY (with tax 426,690JPY)
- - 20 - 80 8 20.8 23 - 1
When out of stock
15 Business Days
53,600JPY (with tax 58,960JPY)
- - 25 - 90 8 20.8 23 - 1
When out of stock
15 Business Days
55,100JPY (with tax 60,610JPY)
- - 25 - 90 8 20.8 23 20 2
When out of stock
Answered later
109,800JPY (with tax 120,780JPY)
- - 40 - 105 10 20.8 23 - 1
When out of stock
15 Business Days
57,900JPY (with tax 63,690JPY)
- - 40 - 105 10 20.8 23 20 2
When out of stock
Answered later
112,600JPY (with tax 123,860JPY)
- - 40 - 105 10 20.8 23 25 3
When out of stock
Answered later
167,300JPY (with tax 184,030JPY)
- - 40 - 105 10 20.8 23 30 4
When out of stock
Answered later
222,000JPY (with tax 244,200JPY)
- - - 20 80 8 20.8 23 - 1
When out of stock
15 Business Days
53,600JPY (with tax 58,960JPY)
- - - 25 90 8 20.8 23 - 1
When out of stock
15 Business Days
55,100JPY (with tax 60,610JPY)
- - - 25 90 8 20.8 23 20 2
When out of stock
Answered later
109,800JPY (with tax 120,780JPY)
- - - 40 105 10 20.8 23 - 1
When out of stock
15 Business Days
57,900JPY (with tax 63,690JPY)
- - - 40 105 10 20.8 23 20 2
When out of stock
Answered later
112,600JPY (with tax 123,860JPY)
- - - 40 105 10 20.8 23 25 3
When out of stock
Answered later
167,300JPY (with tax 184,030JPY)
- - - 40 105 10 20.8 23 30 4
When out of stock
Answered later
222,000JPY (with tax 244,200JPY)
NW/KF ICF VF VG A B C D P.C.D The number of electrode
フィードスルー 同軸 BNC-M2-F-SCREW フローティングシールド 片側プラグ嵌合 admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
