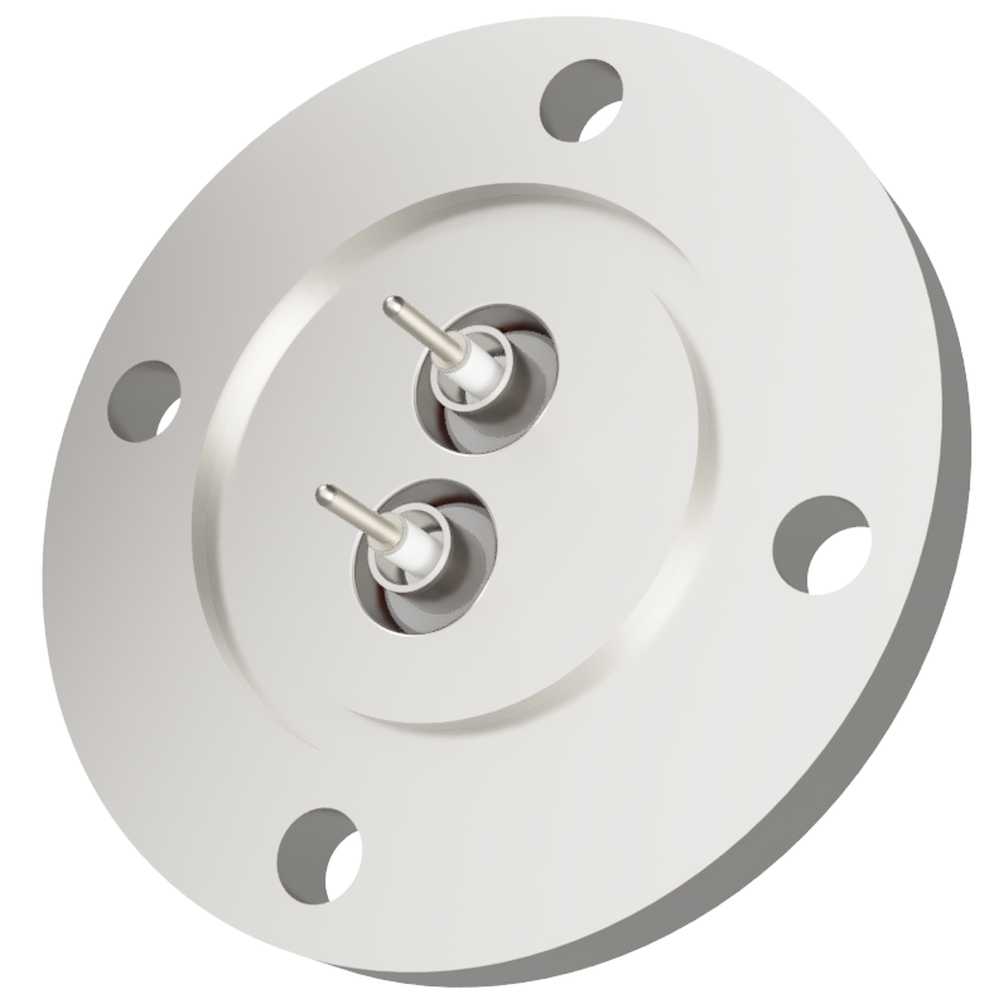

Product code :12970 Model:G25BRFS2

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, BNC connector connection on atmospheric side only
M2 thread at electrode end
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
No screw processing
Plug mating on both sides
High voltage 5kV

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
100,600 JPY (with tax 110,660JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12970
G25BRFS2
- - - 25 90 8 20.8 23 20 2
When out of stock
30 Business Days
100,600JPY (with tax 110,660JPY)
同軸 BNC-R-F-M2 2個付き VG25 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 25 90 8 20.8 23 20 2
Coaxial BNC-R-F-M2 with 2 pcs. VG25 flange
Product code :12970    Model:G25BRFS2
100,600JPY (with tax 110,660JPY)
