  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-R-F-M2 with 4 VF40 flange

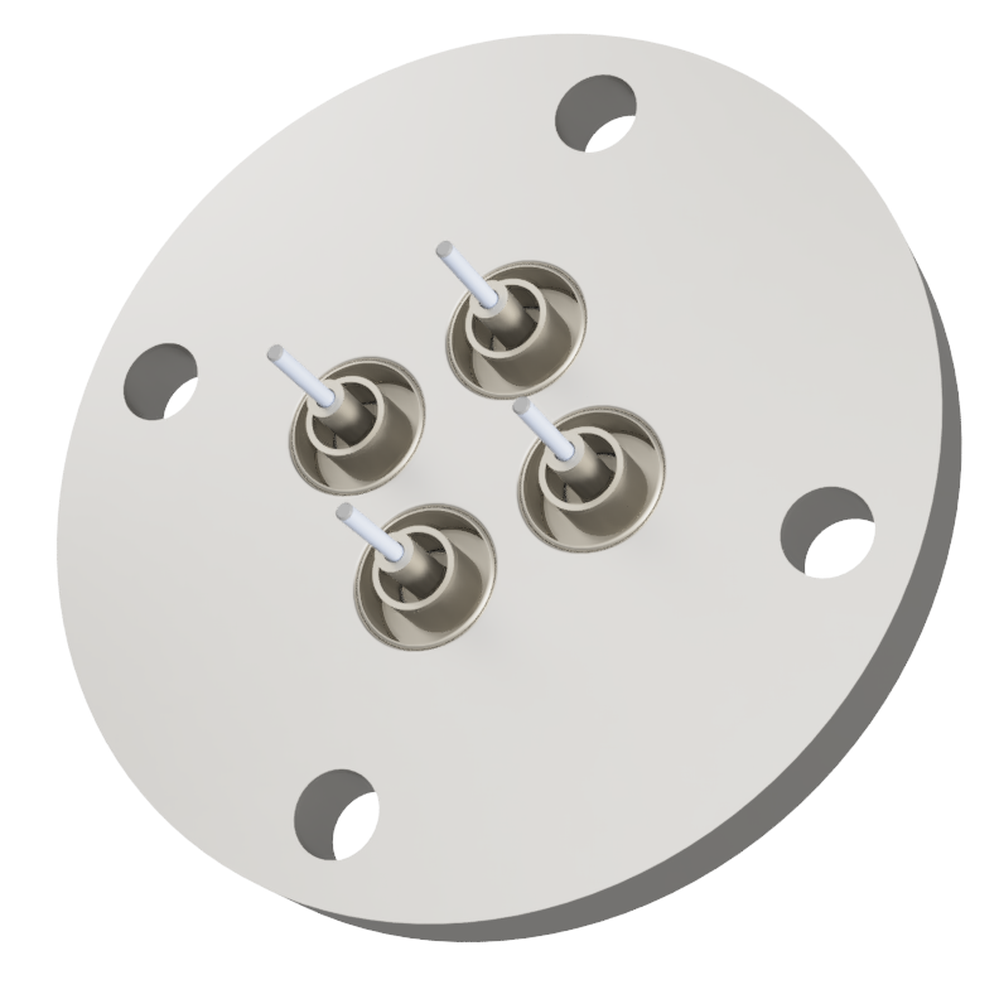

Coaxial BNC-R-F-M2 with 4 VF40 flange

同軸 BNC-R-F-M2 4個付き VF40 フランジ

Mouse over the image to enlarge it

同軸 BNC-R-F-M2 4個付き VF40 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :12969 Model:F40BRFS4

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Floating Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, BNC connector connection on atmospheric side only
M2 thread at electrode end
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield
No screw processing
Plug mating on both sides
High voltage 5kV

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of this page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
179,400 JPY (with tax 197,340JPY)
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12969
F40BRFS4
- - 40 - 105 10 20.8 23 30 4
When out of stock
Answered later
179,400JPY (with tax 197,340JPY)
同軸 BNC-R-F-M2 4個付き VF40 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 40 - 105 10 20.8 23 30 4
Coaxial BNC-R-F-M2 with 4 VF40 flange
Product code :12969    Model:F40BRFS4
179,400JPY (with tax 197,340JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 BNC-R-F-M2 4個付き VF40 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Crimping terminal for vacuum M2 Oxygen-free copper
Crimping terminal for vacuum M2 Oxygen-free copper
Product code :24015
Model:RTV2
2,800JPY (with tax 3,080JPY)
For connecting parts atmosphere side plug BNC
For connecting parts atmosphere side plug BNC
Product code :10017
Model:ASP-BNC
700JPY (with tax 770JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
For connecting parts air-side cable BNC 3D-2V L = 1000
For connecting parts air-side cable BNC 3D-2V L = 1000
Product code :14447
Model:ACV1000B/XX
300JPY (with tax 330JPY)
