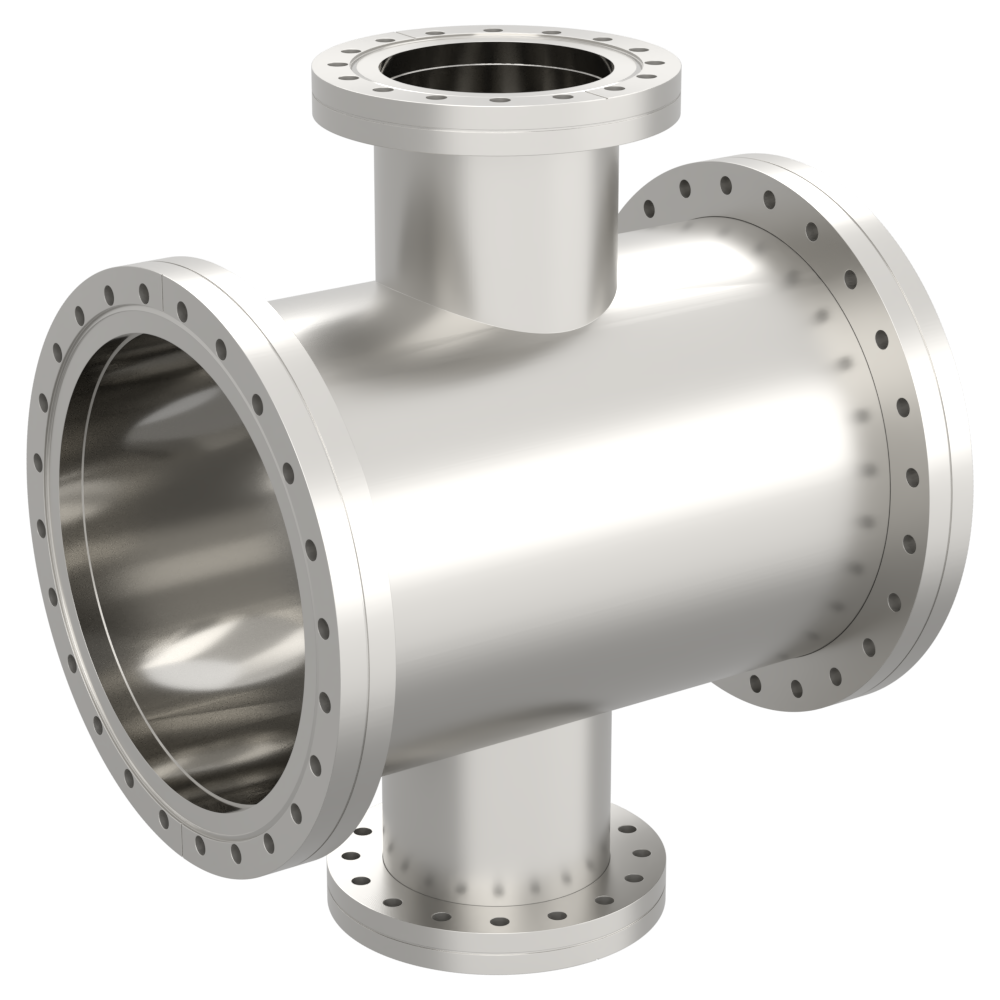

ICF253/152 Conversion cloth 2-sided turn
▼ICF Conversion Cross
Used for gauge mounting ports, exhaust connections, etc.
Connects flanges of different sizes
Flange sizes (ICF): 34, 70, 114, 152, 203, 253
▼The following types of cross piping are standardized (List)
Flange: ICF, NW/KF, JIS-VF, JIS-VG, ISO®-K
Material: SUS304
In addition to 4-way, 5-way, and 6-way crosses, we also offer crosses with different diameter conversion and standard conversion crosses (SUS only)
In addition to cross, radial port flange and hexagonal cubes are also available as mini-chambers.
▼Others
Various conversion adapters for tubes and fittings are also available.
Short and long flanges for welding (list), tees and elbows various types of piping are also available in a wide variety of sizes.
Please contact us for flange size, length change, and material change products. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, click here.
| Basic Information | |
|---|---|
| Main materials | SUS 304 |
| The inner surface processing | Buff 400 (equivalent to Ra 1.0 |
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ICF | A | B | C | D | C1 | D1 | L1 | L2 | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 253 / 152 | 253 | 152 | 203 | 197 | 101.6 | 95.6 | 160 | 190 | |||
| ICF | A | B | C | D | C1 | D1 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|
| 253 | 253 | 152 | 203 | 197 | 101.6 | 95.6 | 160 | 190 |
