Vacuum Components standard conversion cross Product List Vacuum Component
Subcategory 1Matter (1 ~1 )
-
Main materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○
Products 6Matter (1 ~6 )
- Displayed results
- Display switching
-
Product code :21965
Model:ICF34/NW16EXX▼ICF-NW/KF Standard Conversion Cross

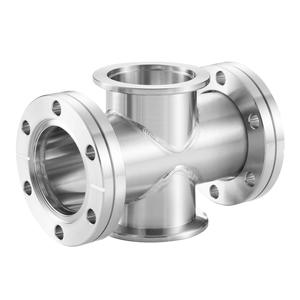

Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 34 NW/KF 16 A 34 B 30 C 19 C1 19 D 16 D1 16 L1 25 L2 38 -
Product code :21966
Model:ICF34/NW25EXX▼ICF-NW/KF Standard Conversion Cross
Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 34 NW/KF 25 A 34 B 40 C 19 C1 19 D 16 D1 16 L1 25 L2 38 -
Product code :21967
Model:ICF70/NW16EXX▼ICF-NW/KF Standard Conversion Cross
Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 70 NW/KF 16 A 70 B 30 C 42.7 C1 20 D 39.4 D1 16 L1 36.8 L2 54 -
Product code :21968
Model:ICF70/NW25EXX▼ICF-NW/KF Standard Conversion Cross
Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 70 NW/KF 25 A 70 B 40 C 42.7 D 39.4 C1 27.2 D1 24 L1 36.8 L2 54
-
Product code :28075
Model:ICF70/NW40EXXA▼ICF-NW/KF Standard Conversion Cross
Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 70 NW/KF 40 A 70 B 55 C 42.7 D 39.4 C1 42.7 D1 39 L1 47 L2 64 -
Product code :28113
Model:ZICF70/NW40EXX▼ICF-NW/KF Standard Conversion Cross
Standard conversion cross where ICF and NW/KF intersect perpendicularly
ICF flange fastening method: Bolted
Bolt holes: Drilled type (through holes)
For NW flange connections, also select centering or clamps
▼Cross piping is standardized in the following types (List)
Flange size (ICF): 34, 70
Flange size (NW): 16, 25, 40
Material: SUS304
▼Other
Various pipe fittings such as elbows, crosses, and adapters are available in a wide range of sizes Various Pipe Fittings
We can accommodate requests for changes in material or flange size. Please contact us via the "Contact Us" button on the right side of the page.
Request precision cleaning hereMain materials SUS 304 The inner surface processing Buff 400 (equivalent to Ra 1.0 Flange material SUS 304 RoHS2 corresponding ○ ICF 70 NW/KF 40 A 70 B 55 C 42.7 D 39.4 C1 42.7 D1 39 L1 36.8 L2 54
