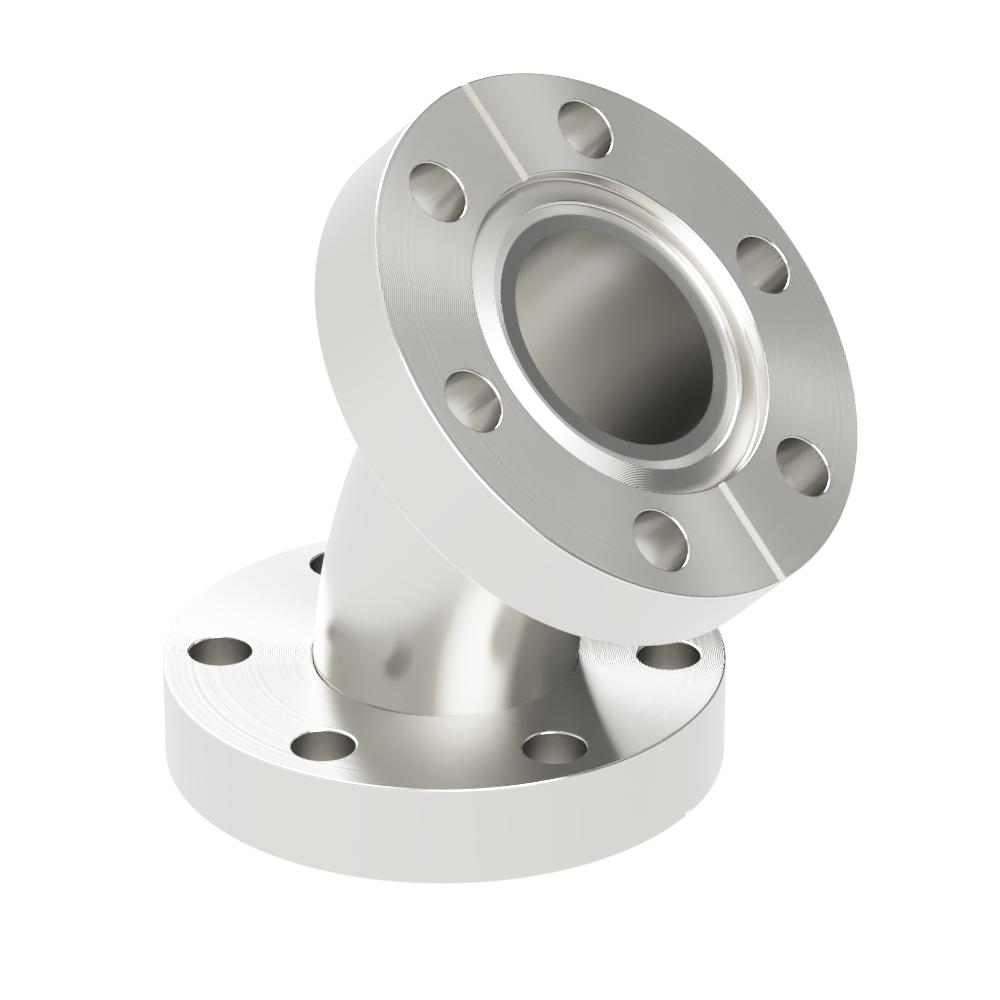

ICF54 45° elbow

ICF54 45°エルボ

Mouse over the image to enlarge it

ICF54 45°エルボ
share the productshare the product
Facebook
LINE
Twitter
Product code :25147 Model:ICF54EL45

Has been used to angle changes and the like of the piping section.
Up to ICF 34 ~ ICF 253 will have been standardized.
It changes and the like of various dimensions, quickly can also be accommodated with respect to special order.

Basic Information
Flange material SUS 304
The inner surface processing Buff 400 (equivalent to Ra 1.0
RoHS2 corresponding ○
47,100 JPY (with tax 51,810JPY)
When out of stock
Answered later
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 ICF A C D L shape
Stock & Delivery
front.product.price
front.product.tax_included2
25147
ICF54EL45
54 54 25.4 22.1 29 45°
When out of stock
Answered later
47,100JPY (with tax 51,810JPY)
ICF54 45°エルボ admin.label.item.size_image
ICF A C D L shape
54 54 25.4 22.1 29 45°
ICF54 45° elbow
Product code :25147    Model:ICF54EL45
47,100JPY (with tax 51,810JPY)
