ICF Elbow 90° / 45
Has been used to angle changes and the like of the piping section.
Up to ICF 34 ~ ICF 253 will have been standardized.
It changes and the like of various dimensions, quickly can also be accommodated with respect to special order.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| The inner surface processing | Buff 400 (equivalent to Ra 1.0 |
| RoHS2 corresponding | Compliant |
We have 14 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

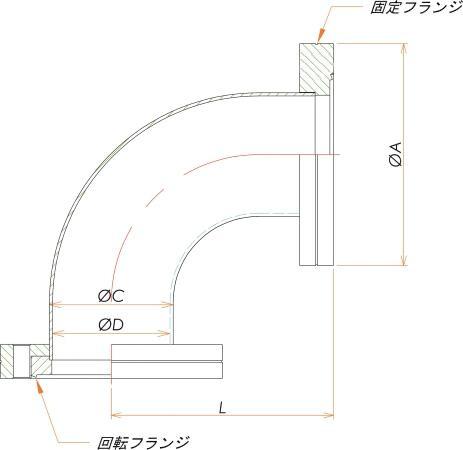

ICF | A | C | D | L | shape | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|
| 34 | 34 | 19.1 | 15.7 | 47.7 | 90° |
stock
20
1-2 Business Days
When out of stock
Answered later
|
19,100JPY
(with tax 21,010JPY)
|
|
| 34 | 34 | 19.1 | 15.8 | 24 | 45° |
stock
4
1-2 Business Days
When out of stock
Answered later
|
17,700JPY
(with tax 19,470JPY)
|
|
| 54 | 54 | 25.4 | 22.1 | 47.7 | 90° |
When out of stock
Answered later
|
54,100JPY
(with tax 59,510JPY)
|
|
| 54 | 54 | 25.4 | 22.1 | 29 | 45° |
When out of stock
Answered later
|
53,300JPY
(with tax 58,630JPY)
|
|
| 70 | 70 | 38 | 35 | 54.2 | 90° |
stock
35
1-2 Business Days
waiting for completion
10
Arrival on Dec 23,2026
When out of stock
Answered later
|
34,100JPY
(with tax 37,510JPY)
|
|
| 70 | 70 | 39 | 35 | 45 | 45° |
stock
5
1-2 Business Days
When out of stock
Answered later
|
21,100JPY
(with tax 23,210JPY)
|
|
| 114 | 114 | 63.5 | 60.2 | 93 | 90° |
stock
5
1-2 Business Days
waiting for completion
3
Arrival on Dec 24,2026
When out of stock
30 Business Days
|
64,100JPY
(with tax 70,510JPY)
|
|
| 114 | 114 | 64 | 61 | 86 | 45° |
stock
1
1-2 Business Days
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| 117 | 117 | 76.2 | 72.9 | 101 | 45° |
When out of stock
Answered later
|
77,100JPY
(with tax 84,810JPY)
|
|
| 152 | 152 | 101.6 | 95.6 | 144 | 90° |
waiting for completion
3
Arrival on Nov 25,2026
When out of stock
Answered later
|
147,600JPY
(with tax 162,360JPY)
|
|
| 152 | 152 | 101.6 | 98.3 | 132 | 45° |
stock
2
1-2 Business Days
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| 203 | 203 | 153 | 147 | 167 | 90° |
stock
9
1-2 Business Days
waiting for completion
2
Arrival on Nov 26,2026
When out of stock
30 Business Days
|
247,100JPY
(with tax 271,810JPY)
|
|
| 253 | 253 | 203 | 197 | 203 | 90° |
stock
3
1-2 Business Days
When out of stock
Answered later
|
271,100JPY
(with tax 298,210JPY)
|
|
| 203 | 203 | 153 | 147 | 111 | 45° |
When out of stock
Answered later
|
191,100JPY
(with tax 210,210JPY)
|
| ICF | A | C | D | L | shape |
|---|---|---|---|---|---|
