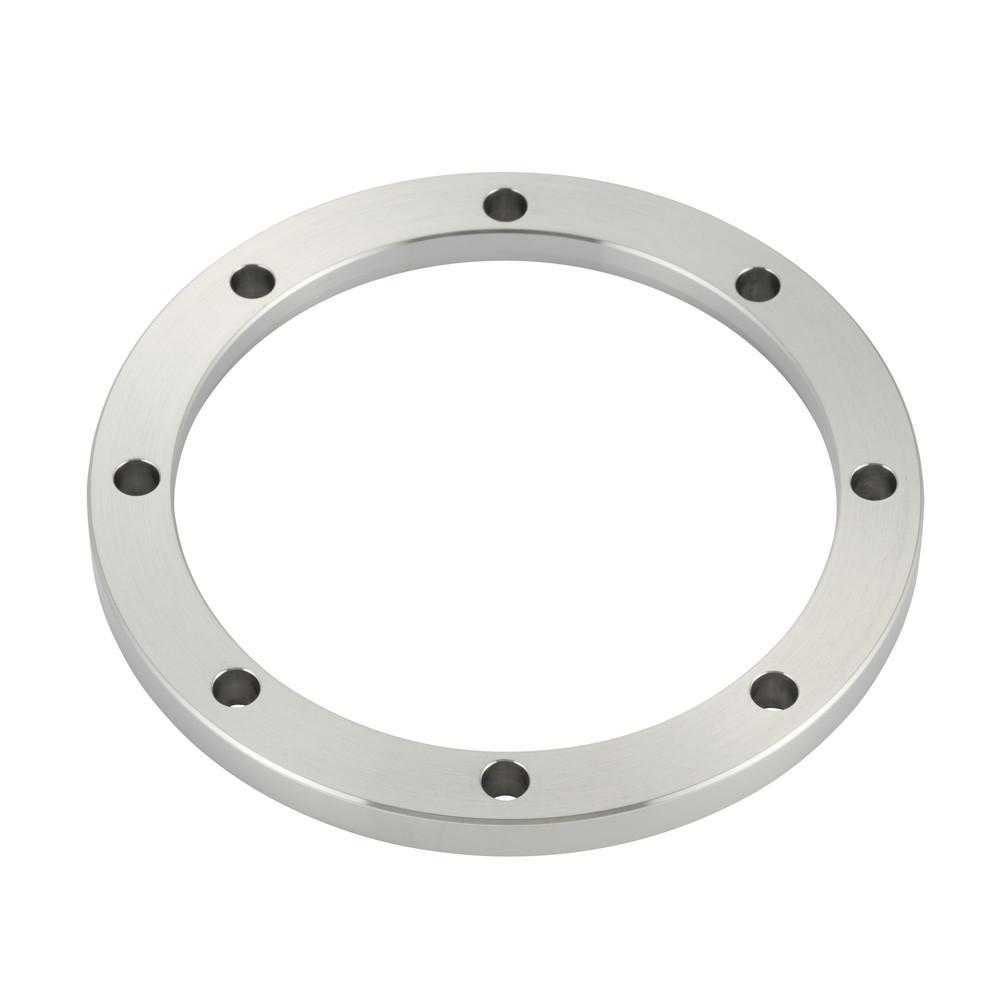

Rotating flange for ISO-K100/ISO-F100 conversion
▼Rotating flange for ISO-K/ISO-F conversion
By attaching it to the ISO-K flange, it can be used as an ISO-F flange.
After installation, it becomes a rotary flange for smooth phase alignment.
Flange size (ISO®): 63, 80, 100, 160, 200, 250, 320, 400
▼How to use
If there is a pipe, pass the rotating flange through the pipe section
Insert the supplied metal ring into the side groove of your ISO-K flange.
Hook the rotating flange onto the ring.
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
- waiting for completion
- 2
- Arrival on Apr 08,2025
- When out of stock
- Answered later
front.product.product_code Model |
ISO-K | ISO-F | A | T | Hole diameter(depth) | Number of holes | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|
| 100 | 100 | 165 | 12 | φ9 | 8 |
waiting for completion
2
Arrival on Apr 08,2025
When out of stock
Answered later
|
24,100JPY
(with tax 26,510JPY)
|
| ISO-K | ISO-F | A | T | Hole diameter(depth) | Number of holes |
|---|---|---|---|---|---|
| 100 | 100 | 165 | 12 | φ9 | 8 |
