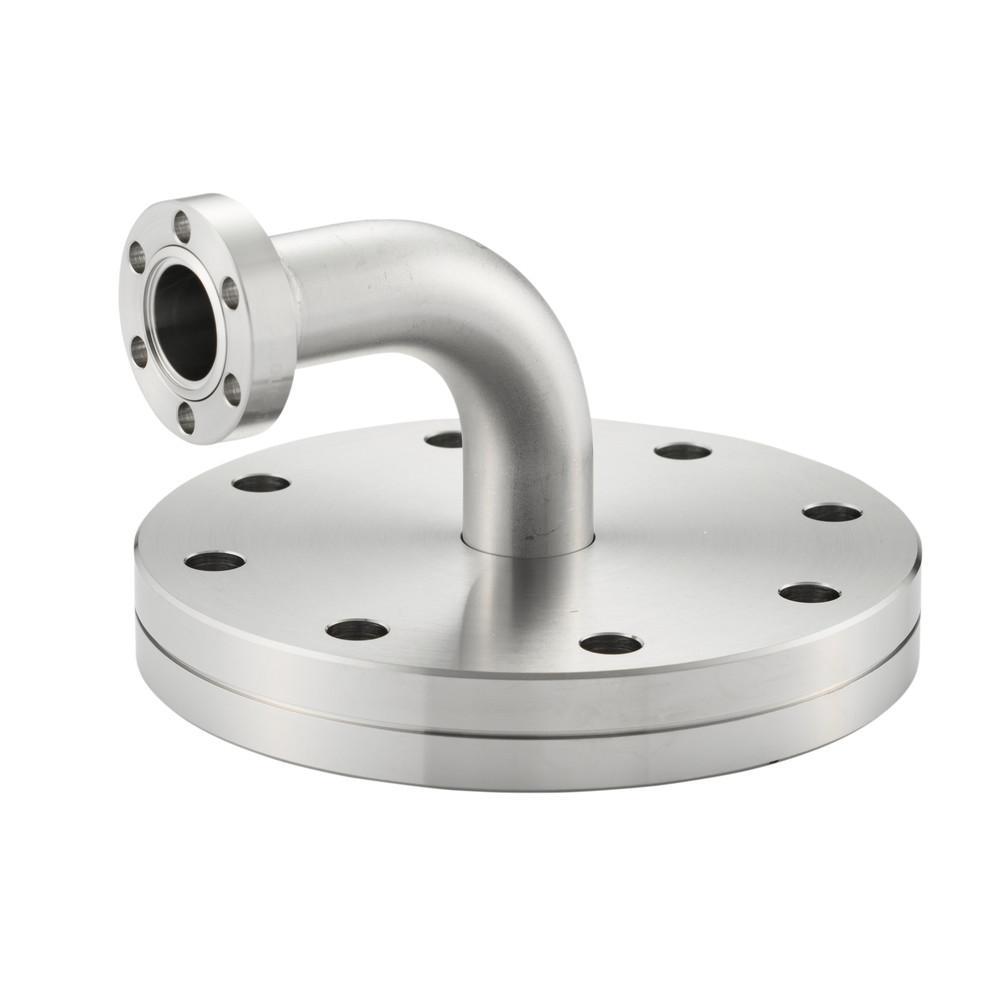

ICF114/34 Conversion elbow

ICF114/34 変換エルボ

Mouse over the image to enlarge it

ICF114/34 変換エルボ
share the productshare the product
Facebook
LINE
Twitter
Product code :25959 Model:ICF114/34EL

▼ICF Conversion elbow 90
Conversion of piping diameter and angle adjustment can be done at once.

The following types are standardized
Flange size (ICF): 34, 70, 114, 152
Material: SUS304
Various standardized conversion nipples are also available.
NW conversion elbows are here.

Others
Short and long flanges for welding (list), tees and crosses various types of piping are also available in various sizes.
We can also provide products with different flange sizes, lengths, and materials. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, click here.

Basic Information
Flange material SUS 304
The inner surface processing Buff 400 (equivalent to Ra 1.0
RoHS2 corresponding ○
51,700 JPY (with tax 56,870JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 ICF A B C D L
Stock & Delivery
front.product.price
front.product.tax_included2
25959
ICF114/34EL
34 / 114 34 70 19.1 15.8 60
When out of stock
30 Business Days
51,700JPY (with tax 56,870JPY)
ICF114/34 変換エルボ admin.label.item.size_image
ICF A B C D L
34 34 70 19.1 15.8 60
ICF114/34 Conversion elbow
Product code :25959    Model:ICF114/34EL
51,700JPY (with tax 56,870JPY)
