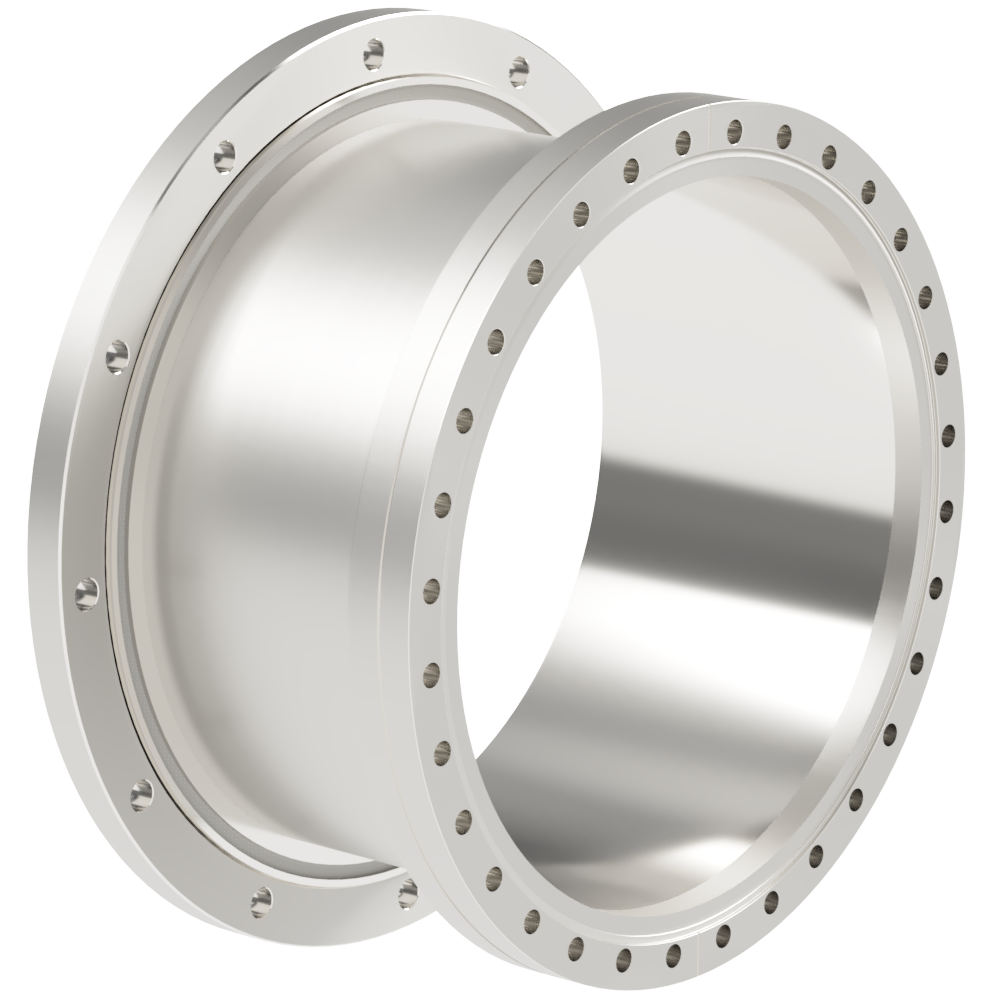

ISO-F250/ICF305 Conversion Nipple
▼ICF-ISO-K/F Conversion nipple
Conversion from ICF flange to ISO-K flange or ISO-F flange
ICF flange fastening method: Bolt tightening
ISO-K flange fastening method: clamping.
ISO-F flange fastening method: bolt fastening
ISO flange center ring is common for K and F flanges.
Both ICF and ISO-F are Drilled hole type (through hole)
ISO-F type comes with a conversion ring; use it with the ISO-K flange.
▼The following types are standardized (list)
Flange size (ICF): 34, 70, 114, 152, 203
Flange size (ISO): 63, 80, 100
Material: SUS304
Various nipples and zero length conversion flanges are also available.
▼Others
Various pipes, including cross pipes and adapters, are available in a wide range of sizes.
We can also be consulted for changes in face-to face length, material, and flange size.Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| The inner surface processing | Buff 400 (equivalent to Ra 1.0 |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ICF | ISO-K | ISO-F | C | D | L | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|
| 305 | - | 250 | 260 | 254 | 150 |
When out of stock
Answered later
|
Separate estimate
|
| ICF | ISO-K | ISO-F | C | D | L |
|---|---|---|---|---|---|
| 305 | - | 250 | 260 | 254 | 150 |
