VF / VG nipple

VF / VG nipple

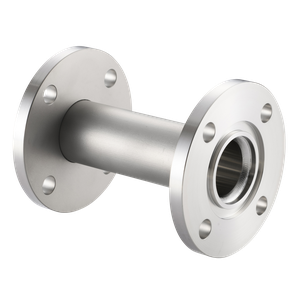

▼JIS-VF/VG Nipple
Can be used for length adjustment of piping.
Elastomer O-ring seal
Fastening method: Bolt tightening
Bolt holes: Drilled hole type (through hole)

▼Rotating Flange type
One side is a rotating flange, so it fits the phase of the mating flange.
Combination: VF at both ends, VG at both ends, VF/VG on each side
In different diameter combination, the small diameter side is a rotating flange.
In VF/VG combination with the same diameter, the VF flange side is a rotating flange.

▼The following types are standardized (List)
Flange size (JIS): 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250
Material: SUS304
Various standard conversion nipples and zero length conversion flanges are also available.

▼Others
We also offer various types of piping such as adapters, tees and crosses in a wide variety of sizes.
We can also provide additional processing to our products and products made of different materials. Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning services are available here.

see next
Basic Information
Material SUS 304
The inner surface processing GBB Processing
RoHS2 corresponding ○
Inquiry for this subcategory

We have 104 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
 VF VG A C D L Fixed/rotating Classification
Stock & Delivery
front.product.price
front.product.tax_included2
22240
VFVG20NI
20 20 80 27.2 23 100 Double-sided fixation one side VF/VG
When out of stock
30 Business Days
17,700JPY (with tax 19,470JPY)
22241
VFVG25NI
25 25 90 34 28.4 110 Double-sided fixation one side VF/VG
stock
2 1-2 Business Days
When out of stock
30 Business Days
19,100JPY (with tax 21,010JPY)
22242
VFVG40NI
40 40 105 48.6 43 120 Double-sided fixation one side VF/VG
stock
1 1-2 Business Days
waiting for completion
1 Arrival on Dec 26,2024
When out of stock
30 Business Days
24,700JPY (with tax 27,170JPY)
22243
VFVG50NI
50 50 120 60.5 54.9 120 Double-sided fixation one side VF/VG
stock
2 1-2 Business Days
waiting for completion
2 Arrival on Jan 25,2025
When out of stock
30 Business Days
27,100JPY (with tax 29,810JPY)
24208
VFVG65NI
65 65 145 76.3 67.9 120 Double-sided fixation one side VF/VG
stock
15 1-2 Business Days
When out of stock
30 Business Days
42,700JPY (with tax 46,970JPY)
22244
VFVG80NI
80 80 160 89.1 83.1 220 Double-sided fixation one side VF/VG
stock
1 1-2 Business Days
waiting for completion
1 Arrival on Dec 26,2024
When out of stock
30 Business Days
44,100JPY (with tax 48,510JPY)
22245
VFVG100NI
100 100 185 114.3 108.3 240 Double-sided fixation one side VF/VG
stock
3 1-2 Business Days
When out of stock
30 Business Days
45,700JPY (with tax 50,270JPY)
22246
VFVG125NI
125 125 210 139.8 133 300 Double-sided fixation one side VF/VG
When out of stock
30 Business Days
79,100JPY (with tax 87,010JPY)
22247
VFVG150NI
150 150 235 165.2 158.4 300 Double-sided fixation one side VF/VG
When out of stock
30 Business Days
107,100JPY (with tax 117,810JPY)
22248
VFVG200NI
200 200 300 216.3 208.3 300 Double-sided fixation one side VF/VG
When out of stock
30 Business Days
141,100JPY (with tax 155,210JPY)
22249
VFVG250NI
250 250 350 267.4 259.4 300 Double-sided fixation one side VF/VG
When out of stock
30 Business Days
251,100JPY (with tax 276,210JPY)
26579
VF20NIR
20 - 80 27.2 23 100 one-sided rotation both side VF
When out of stock
20 Business Days
34,100JPY (with tax 37,510JPY)
26580
VF25NIR
25 - 90 34 28.4 110 one-sided rotation both side VF
When out of stock
20 Business Days
39,100JPY (with tax 43,010JPY)
26581
VF40NIR
40 - 105 48.6 43 120 one-sided rotation both side VF
When out of stock
20 Business Days
44,700JPY (with tax 49,170JPY)
26582
VF50NIR
50 - 120 60.5 54.9 120 one-sided rotation both side VF
When out of stock
20 Business Days
49,100JPY (with tax 54,010JPY)
26583
VF65NIR
65 - 145 76.3 67.9 120 one-sided rotation both side VF
When out of stock
20 Business Days
67,100JPY (with tax 73,810JPY)
26584
VF80NIR
80 - 160 89.1 83.1 220 one-sided rotation both side VF
When out of stock
20 Business Days
77,100JPY (with tax 84,810JPY)
26585
VF100NIR
100 - 185 114.3 108.3 240 one-sided rotation both side VF
When out of stock
20 Business Days
97,100JPY (with tax 106,810JPY)
26586
VF125NIR
125 - 210 139.8 133 300 one-sided rotation both side VF
When out of stock
Answered later
141,100JPY (with tax 155,210JPY)
26587
VF150NIR
150 - 235 165.2 158.4 300 one-sided rotation both side VF
When out of stock
20 Business Days
171,100JPY (with tax 188,210JPY)
26588
VG20NIR
- 20 80 27.2 23 100 one-sided rotation both side VG
When out of stock
20 Business Days
40,100JPY (with tax 44,110JPY)
26589
VG25NIR
- 25 90 34 28.4 110 one-sided rotation both side VG
When out of stock
20 Business Days
41,700JPY (with tax 45,870JPY)
26590
VG40NIR
- 40 105 48.6 43 120 one-sided rotation both side VG
When out of stock
20 Business Days
51,100JPY (with tax 56,210JPY)
26591
VG50NIR
- 50 120 60.5 54.9 120 one-sided rotation both side VG
When out of stock
20 Business Days
57,100JPY (with tax 62,810JPY)
26592
VG65NIR
- 65 145 76.3 67.9 120 one-sided rotation both side VG
When out of stock
20 Business Days
67,100JPY (with tax 73,810JPY)
26593
VG80NIR
- 80 160 89.1 83.1 220 one-sided rotation both side VG
When out of stock
20 Business Days
79,100JPY (with tax 87,010JPY)
26594
VG100NIR
- 100 185 114.3 108.3 240 one-sided rotation both side VG
When out of stock
20 Business Days
97,100JPY (with tax 106,810JPY)
26595
VG125NIR
- 125 210 139.8 133 300 one-sided rotation both side VG
When out of stock
20 Business Days
141,100JPY (with tax 155,210JPY)
26596
VG150NIR
- 150 235 165.2 158.4 300 one-sided rotation both side VG
When out of stock
20 Business Days
171,100JPY (with tax 188,210JPY)
26597
VFVG20NIR
20 20 80 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
34,100JPY (with tax 37,510JPY)
26598
VFVG25NIR
25 25 90 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
40,100JPY (with tax 44,110JPY)
26599
VFVG40NIR
40 40 105 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
44,700JPY (with tax 49,170JPY)
26600
VFVG50NIR
50 50 120 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
49,100JPY (with tax 54,010JPY)
26601
VFVG65NIR
65 65 145 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
67,100JPY (with tax 73,810JPY)
26602
VFVG80NIR
80 80 160 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
77,100JPY (with tax 84,810JPY)
26603
VFVG100NIR
100 100 185 114.3 108.3 240 one-sided rotation one side VF/VG
When out of stock
20 Business Days
97,100JPY (with tax 106,810JPY)
26604
VFVG125NIR
125 125 210 139.8 133 300 one-sided rotation one side VF/VG
When out of stock
Answered later
141,100JPY (with tax 155,210JPY)
26605
VFVG150NIR
150 150 235 165.2 158.4 300 one-sided rotation one side VF/VG
When out of stock
20 Business Days
171,100JPY (with tax 188,210JPY)
27173
VG25/VF20RNI
20 25 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
44,100JPY (with tax 48,510JPY)
27174
VG40/VF20RNI
20 40 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
47,100JPY (with tax 51,810JPY)
27176
VG50/VF20RNI
20 50 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
47,100JPY (with tax 51,810JPY)
27179
VG65/VF20RNI
20 65 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
57,100JPY (with tax 62,810JPY)
27183
VG80/VF20RNI
20 80 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
57,100JPY (with tax 62,810JPY)
26753
VF25/VG20RNI
25 20 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
44,100JPY (with tax 48,510JPY)
27175
VG40/VF25RNI
25 40 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
51,100JPY (with tax 56,210JPY)
27177
VG50/VF25RNI
25 50 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
51,700JPY (with tax 56,870JPY)
27180
VG65/VF25RNI
25 65 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
61,100JPY (with tax 67,210JPY)
27184
VG80/VF25RNI
25 80 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
61,100JPY (with tax 67,210JPY)
27188
VG100/VF25RNI
25 100 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
71,100JPY (with tax 78,210JPY)
27193
VG125/VF25RNI
25 125 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
71,700JPY (with tax 78,870JPY)
27199
VG150/VF25RNI
25 150 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
81,700JPY (with tax 89,870JPY)
26754
VF40/VG20RNI
40 20 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
47,100JPY (with tax 51,810JPY)
26755
VF40/VG25RNI
40 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
51,100JPY (with tax 56,210JPY)
27178
VG50/VF40RNI
40 50 - 48.6 43 120 one-sided rotation one side VF/VG
stock
1 1-2 Business Days
When out of stock
20 Business Days
57,700JPY (with tax 63,470JPY)
27181
VG65/VF40RNI
40 65 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
67,700JPY (with tax 74,470JPY)
27185
VG80/VF40RNI
40 80 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
67,700JPY (with tax 74,470JPY)
27189
VG100/VF40RNI
40 100 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
77,700JPY (with tax 85,470JPY)
27194
VG125/VF40RNI
40 125 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
79,100JPY (with tax 87,010JPY)
27200
VG150/VF40RNI
40 150 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
90,100JPY (with tax 99,110JPY)
26756
VF50/VG20RNI
50 20 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
47,100JPY (with tax 51,810JPY)
26757
VF50/VG25RNI
50 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
51,700JPY (with tax 56,870JPY)
26758
VF50/VG40RNI
50 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
57,700JPY (with tax 63,470JPY)
27182
VG65/VF50RNI
50 65 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
74,100JPY (with tax 81,510JPY)
27186
VG80/VF50RNI
50 80 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
74,100JPY (with tax 81,510JPY)
27190
VG100/VF50RNI
50 100 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
84,100JPY (with tax 92,510JPY)
27195
VG125/VF50RNI
50 125 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
87,100JPY (with tax 95,810JPY)
27201
VG150/VF50RNI
50 150 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
94,100JPY (with tax 103,510JPY)
26759
VF65/VG20RNI
65 20 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
57,100JPY (with tax 62,810JPY)
26760
VF65/VG25RNI
65 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
61,100JPY (with tax 67,210JPY)
26761
VF65/VG40RNI
65 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
67,700JPY (with tax 74,470JPY)
26762
VF65/VG50RNI
65 50 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
74,100JPY (with tax 81,510JPY)
27187
VG80/VF65RNI
65 80 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
79,100JPY (with tax 87,010JPY)
27191
VG100/VF65RNI
65 100 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
90,700JPY (with tax 99,770JPY)
27196
VG125/VF65RNI
65 125 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
91,100JPY (with tax 100,210JPY)
27202
VG150/VF65RNI
65 150 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
99,700JPY (with tax 109,670JPY)
26763
VF80/VG20RNI
80 20 - 27.2 23 100 one-sided rotation one side VF/VG
When out of stock
20 Business Days
57,100JPY (with tax 62,810JPY)
26764
VF80/VG25RNI
80 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
61,100JPY (with tax 67,210JPY)
26765
VF80/VG40RNI
80 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
67,700JPY (with tax 74,470JPY)
26766
VF80/VG50RNI
80 50 - 60.5 54.9 120 one-sided rotation one side VF/VG
stock
1 1-2 Business Days
When out of stock
20 Business Days
74,100JPY (with tax 81,510JPY)
26767
VF80/VG65RNI
80 65 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
79,100JPY (with tax 87,010JPY)
27192
VG100/VF80RNI
80 100 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
11,700JPY (with tax 12,870JPY)
27197
VG125/VF80RNI
80 125 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
104,100JPY (with tax 114,510JPY)
27203
VG150/VF80RNI
80 150 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
114,100JPY (with tax 125,510JPY)
26768
VF100/VG25RNI
100 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
71,100JPY (with tax 78,210JPY)
26769
VF100/VG40RNI
100 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
77,700JPY (with tax 85,470JPY)
26770
VF100/VG50RNI
100 50 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
84,100JPY (with tax 92,510JPY)
26771
VF100/VG65RNI
100 65 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
90,700JPY (with tax 99,770JPY)
26772
VF100/VG80RNI
100 80 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
11,700JPY (with tax 12,870JPY)
27198
VG125/VF100RNI
100 125 - 114.3 108.3 240 one-sided rotation one side VF/VG
When out of stock
20 Business Days
114,100JPY (with tax 125,510JPY)
27204
VG150/VF100RNI
100 150 - 114.3 108.3 240 one-sided rotation one side VF/VG
When out of stock
20 Business Days
127,100JPY (with tax 139,810JPY)
26773
VF125/VG25RNI
125 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
71,700JPY (with tax 78,870JPY)
26774
VF125/VG40RNI
125 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
79,100JPY (with tax 87,010JPY)
26775
VF125/VG50RNI
125 50 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
87,100JPY (with tax 95,810JPY)
26776
VF125/VG65RNI
125 65 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
91,100JPY (with tax 100,210JPY)
26777
VF125/VG80RNI
125 80 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
104,100JPY (with tax 114,510JPY)
26778
VF125/VG100RNI
125 100 - 114.3 108.3 240 one-sided rotation one side VF/VG
When out of stock
20 Business Days
114,100JPY (with tax 125,510JPY)
27205
VG150/VF125RNI
125 150 - 139.8 133 300 one-sided rotation one side VF/VG
When out of stock
Answered later
167,100JPY (with tax 183,810JPY)
26779
VF150/VG25RNI
150 25 - 34 28.4 110 one-sided rotation one side VF/VG
When out of stock
20 Business Days
81,700JPY (with tax 89,870JPY)
26780
VF150/VG40RNI
150 40 - 48.6 43 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
90,100JPY (with tax 99,110JPY)
26781
VF150/VG50RNI
150 50 - 60.5 54.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
94,100JPY (with tax 103,510JPY)
26782
VF150/VG65RNI
150 65 - 76.3 67.9 120 one-sided rotation one side VF/VG
When out of stock
20 Business Days
99,700JPY (with tax 109,670JPY)
26783
VF150/VG80RNI
150 80 - 89.1 83.1 220 one-sided rotation one side VF/VG
When out of stock
20 Business Days
114,100JPY (with tax 125,510JPY)
26784
VF150/VG100RNI
150 100 - 114.3 108.3 240 one-sided rotation one side VF/VG
When out of stock
20 Business Days
127,100JPY (with tax 139,810JPY)
26785
VF150/VG125RNI
150 125 - 139.8 133 300 one-sided rotation one side VF/VG
When out of stock
20 Business Days
167,100JPY (with tax 183,810JPY)
VF VG A C D L Fixed/rotating Classification
To detail page Contact Us

Filter by model

stock status

Flange

Classification

Fixed/rotating

VF/VG ニップル admin.label.item.catalog_image
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください！

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
