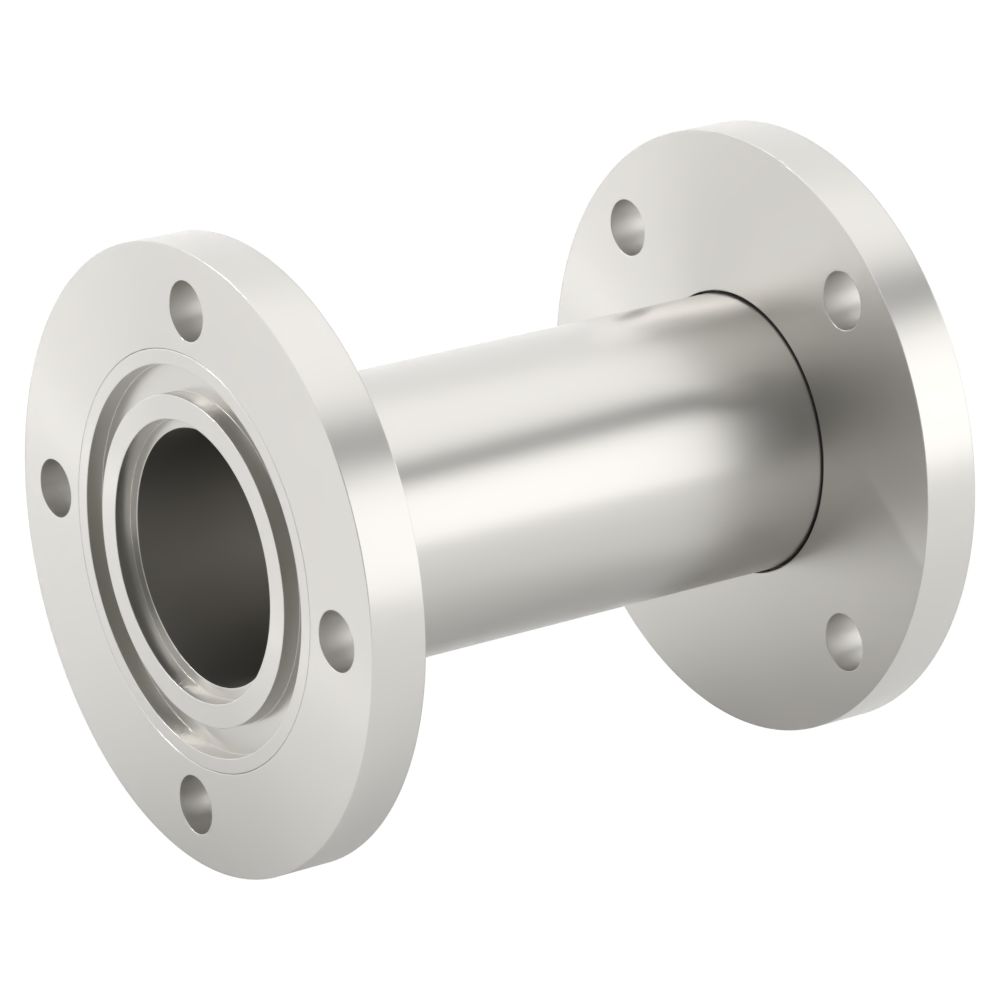

VG40 Nipple One side rotation
▼JIS-VF/VG Nipple
Can be used for length adjustment of piping.
Elastomer O-ring seal
Fastening method: Bolt tightening
Bolt holes: Drilled hole type (through hole)
▼Rotating Flange type
One side is a rotating flange, so it fits the phase of the mating flange.
Combination: VF at both ends, VG at both ends, VF/VG on each side
In different diameter combination, the small diameter side is a rotating flange.
In VF/VG combination with the same diameter, the VF flange side is a rotating flange.
▼The following types are standardized (List)
Flange size (JIS): 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250
Material: SUS304
Various standard conversion nipples and zero length conversion flanges are also available.
▼Others
We also offer various types of piping such as adapters, tees and crosses in a wide variety of sizes.
We can also provide additional processing to our products and products made of different materials. Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning services are available here.
| Basic Information | |
|---|---|
| Material | SUS 304 |
| The inner surface processing | GBB Processing |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
VF | VG | A | C | D | L | Fixed/rotating | Classification | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|
| - | 40 | 105 | 48.6 | 43 | 120 | one-sided rotation | both side VG | |||
| VF | VG | A | C | D | L | Fixed/rotating | Classification |
|---|---|---|---|---|---|---|---|
| - | 40 | 105 | 48.6 | 43 | 120 | one-sided rotation | both side VG |
