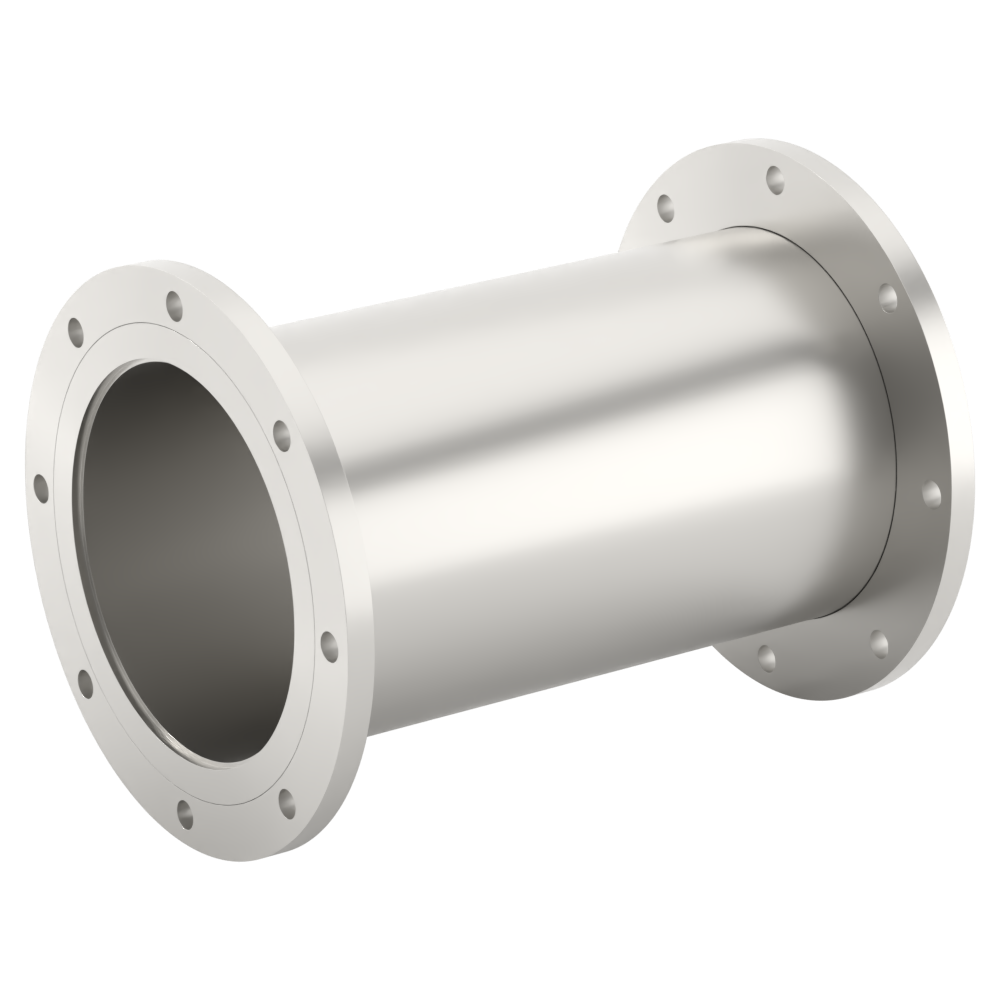

VF150 Nipple One side rotation

VF150 ニップル 片側回転

Mouse over the image to enlarge it

VF150 ニップル 片側回転
share the productshare the product
Product code :26587 Model:VF150NIR

▼JIS-VF/VG Nipple
Can be used for length adjustment of piping.
Elastomer O-ring seal
Fastening method: Bolt tightening
Bolt holes: Drilled hole type (through hole)

▼Rotating Flange type
One side is a rotating flange, so it fits the phase of the mating flange.
Combination: VF at both ends, VG at both ends, VF/VG on each side
In different diameter combination, the small diameter side is a rotating flange.
In VF/VG combination with the same diameter, the VF flange side is a rotating flange.

▼The following types are standardized (List)
Flange size (JIS): 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250
Material: SUS304
Various standard conversion nipples and zero length conversion flanges are also available.

▼Others
We also offer various types of piping such as adapters, tees and crosses in a wide variety of sizes.
We can also provide additional processing to our products and products made of different materials. Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning services are available here.

Basic Information
Material SUS 304
The inner surface processing GBB Processing
RoHS2 corresponding
171,100 JPY (with tax 188,210JPY)
When out of stock
20 Business Days
Inquiry for this product
share the productshare the product
front.product.product_code
Model
VF VG A C D L Fixed/rotating Classification
Stock & Delivery
front.product.price
front.product.tax_included2
150 - 235 165.2 158.4 300 one-sided rotation both side VF
When out of stock
20 Business Days
171,100JPY (with tax 188,210JPY)
VF150 ニップル 片側回転 admin.label.item.size_image
VF VG A C D L Fixed/rotating Classification
150 - 235 165.2 158.4 300 one-sided rotation both side VF
Product code :26587    Model:VF150NIR
171,100JPY (with tax 188,210JPY)
