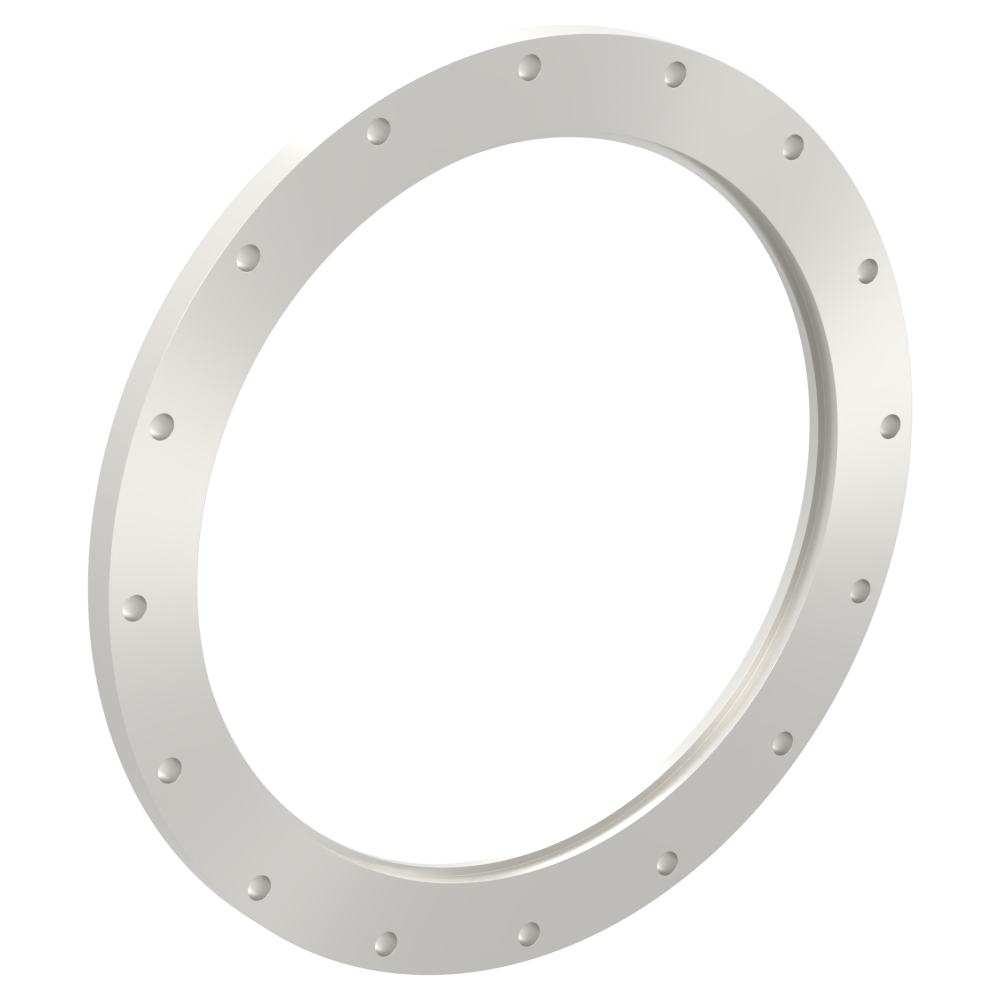

ISO-F400 406.9 flange with hole
Product code :22918
Model:ISOF400F406.9B
ISO-K standard flange. Fastened with a claw clamp. Additional processing is also available.
| Basic Information | |
|---|---|
| Flange material | SUS 304L |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ISO-K | ISO-F | A | B | C | E | T | T1 | T2 | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 400 | 510 | 396.8 | 406.9 | 400 | 20.1 | 10.7 | 4.8 | 480.1 | φ14 | 16 | 254 | |||
| ISO-K | ISO-F | A | B | C | E | T | T1 | T2 | P.C.D | Hole diameter(depth) | Number of holes | Apply pipe outer diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 400 | 510 | 396.8 | 406.9 | 400 | 20.1 | 10.7 | 4.8 | 480.1 | φ14 | 16 | 254 |
Product code :22918
Model:ISOF400F406.9B
You need to sign in to show price and stock
Sign in
Filter by model
フランジ
Related products
Show price and stock after sign in
RoHS2 Download
Download the RoHS2 compliance report for the following products.
ISO-F400 406.9 flange with hole
Model:ISOF400F406.9B
Product code:22918
