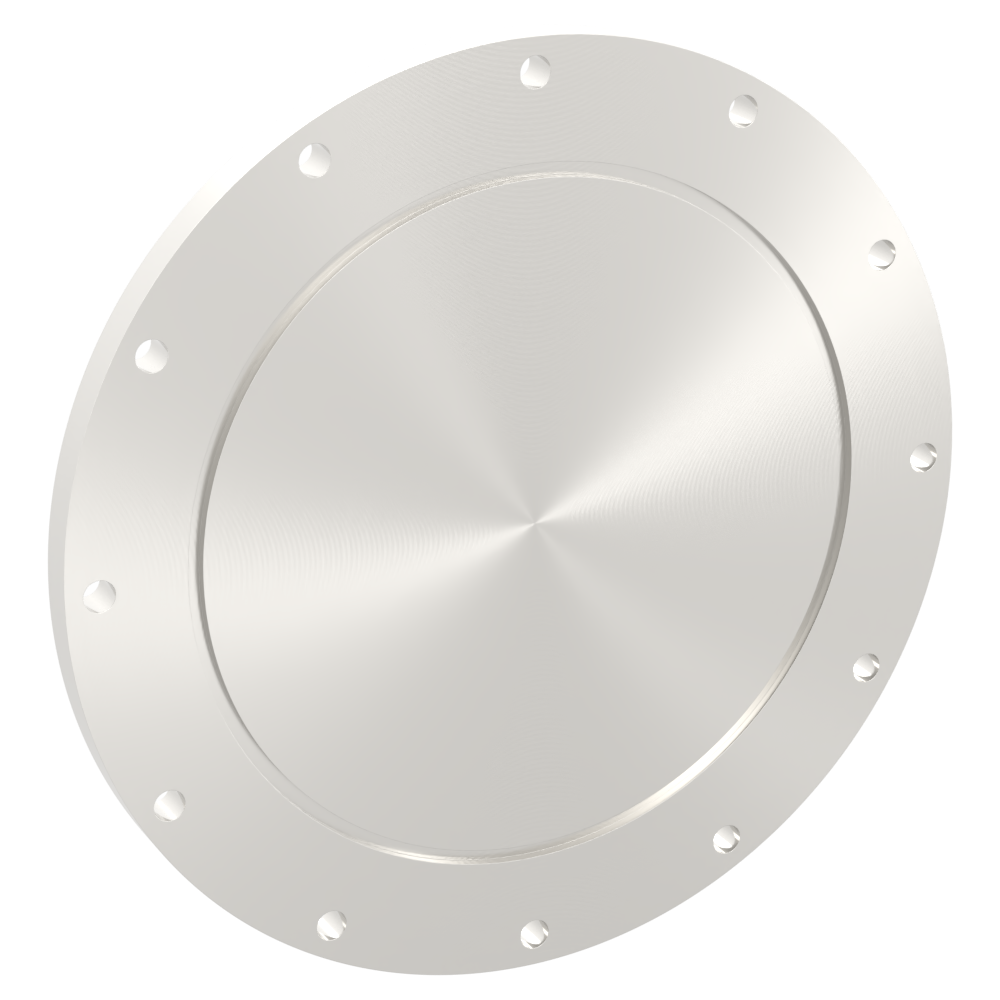

ISO-F320 Blank flange
▼ISO-K Flange
ISO-K (ISO-MF)
Blank flanges for sealing and processing.
The number of clamps and screw diameter varies depending on the flange diameter.
Use center ring between the clamps.
▼ISO-F Flange
ISO-F (ISO-BT)
ISO-F (ISO-BT) Blank flange for sealing and processing
Bolts fastening type
Use with center ring.
The following types are standardized (List)
Flange size (ISO): 63, 80, 100, 160, 200, 250
Material: SUS304
Blank flanges and flanges with holes are standardized.
ISO-F flange with bolt fastening type is also available.
ISO-K flange with clamp type is also available.
Others
Standard conversion nipples (list) are also available in a variety of sizes.
Please feel free to contact us for any additional processing or material changes to our products. Please contact us by clicking the "Inquiry" button on the right side of this page.
Precision Cleaning Request.
| Basic Information | |
|---|---|
| Flange material | SUS 304L |
| RoHS2 corresponding | ○ |
front.product.product_code Model |
ISO-K | ISO-F | A | G1 | G2 | T | P.C.D | Hole diameter(depth) | Number of holes | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 320 | 425 | 318 | 305 | 20 | 395 | φ14 | 12 | |||
| ISO-K | ISO-F | A | G1 | G2 | T | P.C.D | Hole diameter(depth) | Number of holes |
|---|---|---|---|---|---|---|---|---|
| - | 320 | 425 | 318 | 305 | 20 | 395 | φ14 | 12 |
