Miniature High Voltage
▼ Feedthrough Coaxial MHV Ground Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
Vacuum side is electrode, atmospheric side only MHV connector connection
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
Floating shield single-sided plug mating
Gland shield plugging on both sides
Floating shield plugging on both sides
▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | MHV |
| Connection type | Single-Ended |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
| Classification | Flanged terminal |
| type | Ground shield |
| Impedance | 50 Ω |
| frequency | 100 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 5 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |

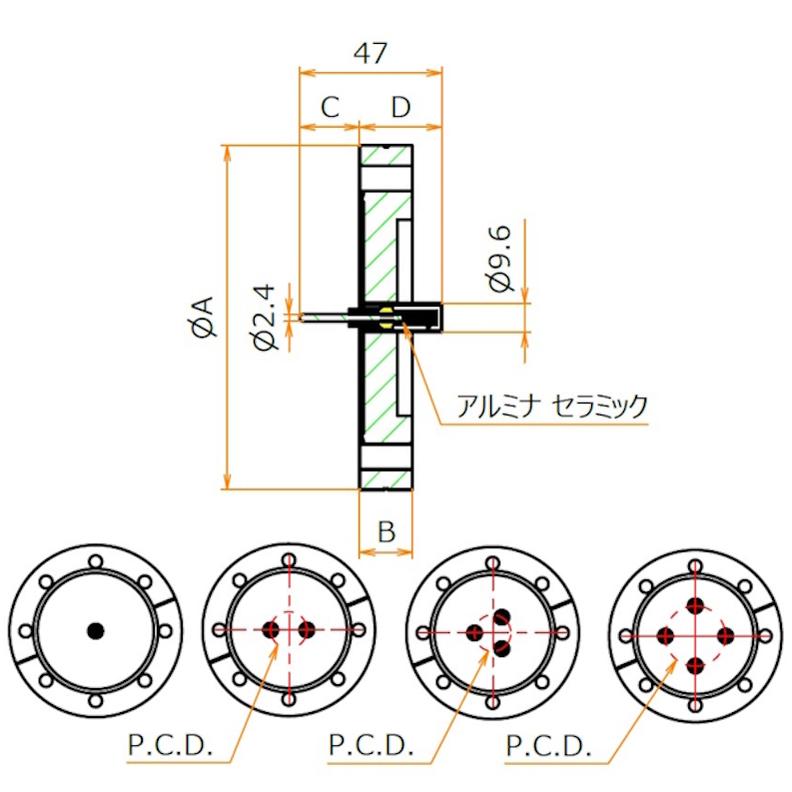

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 6 | 18.5 | 28.5 | - | 1 |
stock
8
1-2 Business Days
When out of stock
15 Business Days
|
33,700JPY
(with tax 37,070JPY)
|
|
| 25 | - | - | - | 40 | 6 | 18.5 | 28.5 | - | 1 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
33,900JPY
(with tax 37,290JPY)
|
|
| 40 | - | - | - | 55 | 6 | 18.5 | 28.5 | - | 1 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
34,200JPY
(with tax 37,620JPY)
|
|
| 40 | - | - | - | 55 | 6 | 18.5 | 28.5 | 24 | 2 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
76,000JPY
(with tax 83,600JPY)
|
|
| 40 | - | - | - | 55 | 6 | 18.5 | 28.5 | 24 | 3 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
119,200JPY
(with tax 131,120JPY)
|
|
| 40 | - | - | - | 55 | 6 | 18.5 | 28.5 | 24 | 4 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
162,400JPY
(with tax 178,640JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | - | 1 |
When out of stock
15 Business Days
|
34,700JPY
(with tax 38,170JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 24 | 2 |
When out of stock
Answered later
|
76,500JPY
(with tax 84,150JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 24 | 3 |
When out of stock
Answered later
|
119,700JPY
(with tax 131,670JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 24 | 4 |
When out of stock
Answered later
|
162,900JPY
(with tax 179,190JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 36 | 1 |
When out of stock
15 Business Days
|
206,100JPY
(with tax 226,710JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 36 | 6 |
When out of stock
15 Business Days
|
249,300JPY
(with tax 274,230JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 36 | 7 |
When out of stock
15 Business Days
|
292,500JPY
(with tax 321,750JPY)
|
|
| 50 | - | - | - | 75 | 6 | 18.5 | 28.5 | 40 | 8 |
When out of stock
15 Business Days
|
335,700JPY
(with tax 369,270JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 19 | 28 | - | 1 |
stock
15
1-2 Business Days
When out of stock
15 Business Days
|
34,700JPY
(with tax 38,170JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 19 | 28 | - | 1 |
stock
5
1-2 Business Days
When out of stock
15 Business Days
|
35,900JPY
(with tax 39,490JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 19 | 28 | 24 | 2 |
stock
6
1-2 Business Days
waiting for completion
1
Arrival on Dec 03,2026
When out of stock
Answered later
|
78,200JPY
(with tax 86,020JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 19 | 28 | 24 | 3 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
121,400JPY
(with tax 133,540JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 19 | 28 | 24 | 4 |
stock
7
1-2 Business Days
When out of stock
Answered later
|
164,600JPY
(with tax 181,060JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | - | - |
When out of stock
15 Business Days
|
41,900JPY
(with tax 46,090JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 24 | 2 |
When out of stock
15 Business Days
|
85,100JPY
(with tax 93,610JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 24 | 3 |
When out of stock
15 Business Days
|
128,300JPY
(with tax 141,130JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 24 | 4 |
When out of stock
15 Business Days
|
171,500JPY
(with tax 188,650JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 5 |
When out of stock
15 Business Days
|
214,700JPY
(with tax 236,170JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 6 |
When out of stock
15 Business Days
|
257,900JPY
(with tax 283,690JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 7 |
When out of stock
15 Business Days
|
301,100JPY
(with tax 331,210JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 8 |
When out of stock
15 Business Days
|
344,300JPY
(with tax 378,730JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 9 |
When out of stock
15 Business Days
|
387,500JPY
(with tax 426,250JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 10 |
When out of stock
15 Business Days
|
430,700JPY
(with tax 473,770JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 19 | 28 | 50 | 11 |
When out of stock
15 Business Days
|
473,900JPY
(with tax 521,290JPY)
|
|
| - | - | 20 | - | 80 | 8 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
35,700JPY
(with tax 39,270JPY)
|
|
| - | - | 25 | - | 90 | 8 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
36,500JPY
(with tax 40,150JPY)
|
|
| - | - | 25 | - | 90 | 8 | 21 | 26 | 24 | 2 |
When out of stock
Answered later
|
78,300JPY
(with tax 86,130JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
37,500JPY
(with tax 41,250JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | 24 | 2 |
When out of stock
Answered later
|
80,300JPY
(with tax 88,330JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | 24 | 3 |
When out of stock
Answered later
|
123,500JPY
(with tax 135,850JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | 24 | 4 |
When out of stock
Answered later
|
166,700JPY
(with tax 183,370JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | 33 | 5 |
When out of stock
15 Business Days
|
209,900JPY
(with tax 230,890JPY)
|
|
| - | - | 40 | - | 105 | 10 | 21 | 26 | 33 | 6 |
When out of stock
15 Business Days
|
253,100JPY
(with tax 278,410JPY)
|
|
| - | - | - | 20 | 80 | 8 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
35,700JPY
(with tax 39,270JPY)
|
|
| - | - | - | 25 | 90 | 8 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
36,500JPY
(with tax 40,150JPY)
|
|
| - | - | - | 25 | 90 | 8 | 21 | 26 | 24 | 2 |
When out of stock
Answered later
|
78,300JPY
(with tax 86,130JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | - | 1 |
When out of stock
15 Business Days
|
37,500JPY
(with tax 41,250JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | 24 | 2 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
80,300JPY
(with tax 88,330JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | 24 | 3 |
When out of stock
Answered later
|
123,500JPY
(with tax 135,850JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | 24 | 4 |
When out of stock
Answered later
|
166,700JPY
(with tax 183,370JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | 33 | 5 |
When out of stock
15 Business Days
|
209,900JPY
(with tax 230,890JPY)
|
|
| - | - | - | 40 | 105 | 10 | 21 | 26 | 33 | 6 |
When out of stock
15 Business Days
|
253,100JPY
(with tax 278,410JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
