- Water cooling terminal SUS304 5 kV with 1 piece NW/KF25 flange

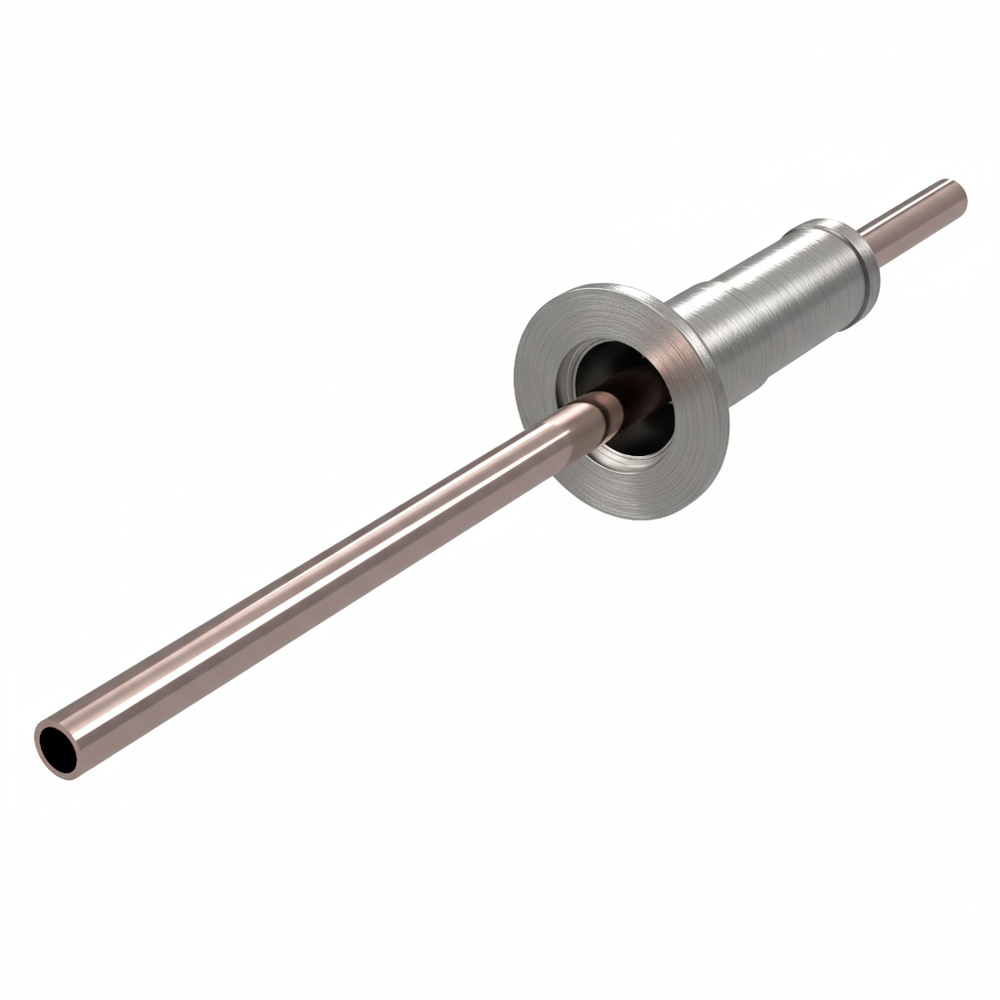

Water cooling terminal SUS304 5 kV with 1 piece NW/KF25 flange
▼Water-cooled terminals
Hermetic feedthroughs with hollow electrodes.
Power can be introduced while the electrode is being cooled.
Sometimes used for high-frequency applications.
▼The following types are standardized
Electrode material: Oxygen-free copper, SUS
Withstand voltage: 5 kV, 8 kV
Number of electrodes: 1, 2, 3, 4
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| type | Water-cooled terminal |
| Flange material | SUS 304 |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Insulation resistance value | 10⁹ ohm |
front.product.product_code Model |
NW/KF | ICF | VF | VG | Tube / Fitting Size | electrode | A | B | C | D | P.C.D | The number of electrode | Withstand voltage: DC | Electric current / 1 pc. | sleeve | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | - | - | - | 1/4 inch | SUS 304 | 40 | 6 | 102.1 | 82 | - | 1 | 5 kV | - | Kovar ® | |||
| NW/KF | ICF | VF | VG | Tube / Fitting Size | electrode | A | B | C | D | P.C.D | The number of electrode | Withstand voltage: DC | Electric current / 1 pc. | sleeve |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | - | - | - | 1/4 inch | SUS 304 | 40 | 6 | 102.1 | 82 | - | 1 | 5 kV | - | Kovar ® |
