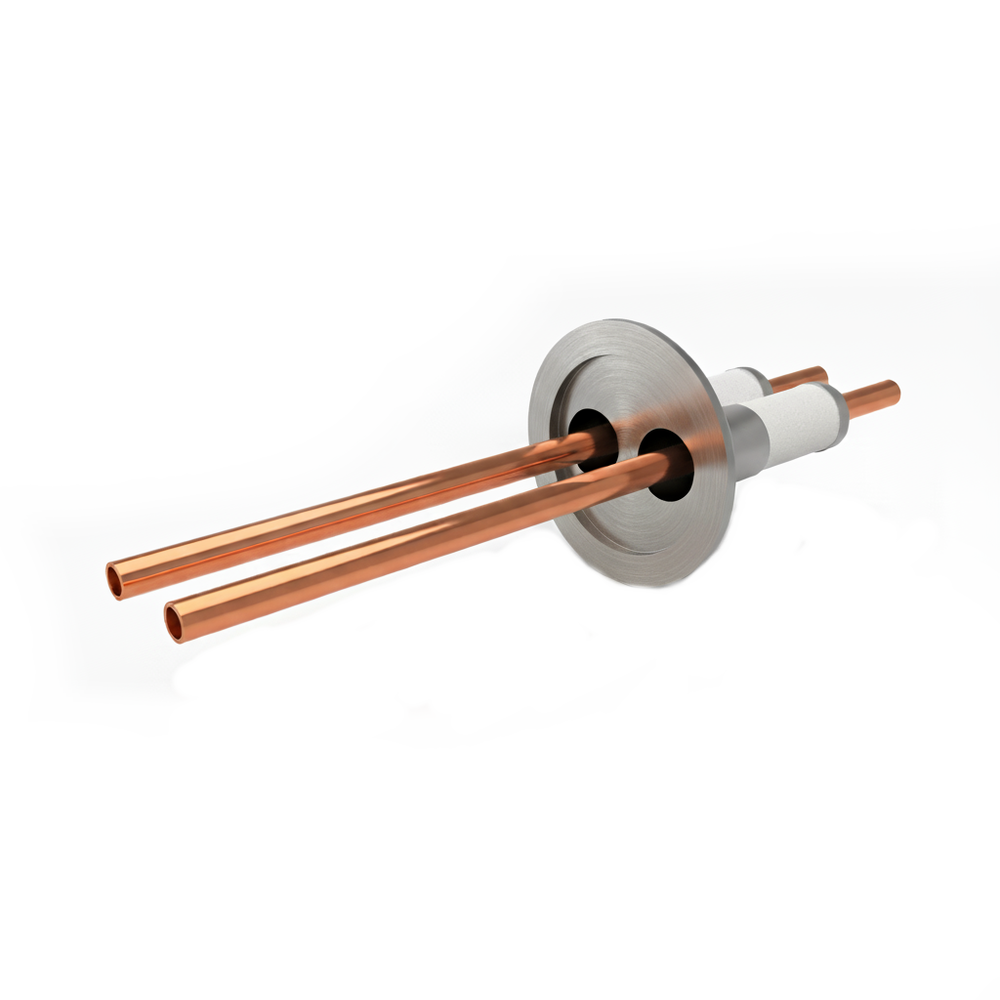

Water cooling terminal Oxygen-free copper 5 kV with 2 pcs NW/KF40 flange

Mouse over the image to enlarge it

share the productshare the product

Product code :21182 Model:N45KLF2CU1/4

▼Water-cooled terminals
Hermetic feedthroughs with hollow electrodes.
Power can be introduced while the electrode is being cooled.
Sometimes used for high-frequency applications.

▼The following types are standardized
Electrode material: Oxygen-free copper, SUS
Withstand voltage: 5 kV, 8 kV
Number of electrodes: 1, 2, 3, 4
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼Custom-made products are also available.
We can promptly respond to custom-ordered products, such as terminal arrangement changes, quantity changes, flange standard/size changes, welding of multiple products, and changes in the dimensions of each part, etc. Please contact us by clicking the "Inquiry" button on the right side of this page.

For precision cleaning requests, please click here.

Basic Information
type	Water-cooled terminal
Flange material	SUS 304
Insulator	Alumina ceramic
Maximum temperature	450℃
The lowest temperature	-196℃
Leak rate	<1.3x10^-10Pa･㎥/sec
Insulation resistance value	10⁹ ohm

108,700 JPY (with tax 119,570JPY)

When out of stock: 30 Business Days

Quantity

Inquiry for this product

share the productshare the product

front.product.product_code Model	NW/KF	ICF	VF	VG	Tube / Fitting Size	electrode	A	B	C	D	P.C.D	The number of electrode	Withstand voltage: DC	Electric current / 1 pc.	sleeve	Stock & Delivery	front.product.price front.product.tax_included2
21182 N45KLF2CU1/4	40	-	-	-	1/4 inch	Oxygen-free copper	55	6	102.1	82	20	2	5 kV	33 A	Kovar ®	When out of stock 30 Business Days	108,700JPY (with tax 119,570JPY)

NW/KF	ICF	VF	VG	Tube / Fitting Size	electrode	A	B	C	D	P.C.D	The number of electrode	Withstand voltage: DC	Electric current / 1 pc.	sleeve
40	-	-	-	1/4 inch	Oxygen-free copper	55	6	102.1	82	20	2	5 kV	33 A	Kovar ®
