Feedthrough coaxial SHV-JJ-F floating shield both

Feedthrough coaxial SHV-JJ-F floating shield both

Safe High Voltage
▼ Feedthrough Coaxial SHV Floating Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
SHV connector connection on both vacuum and atmospheric side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shielded single-sided plug mating (5kV, 10kV, 20kV)
Floating shield plug mating on one side (5kV)
Ground shield plug mating on both sides (5kV)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

see next
Basic Information
type SHV
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this subcategory

We have 25 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

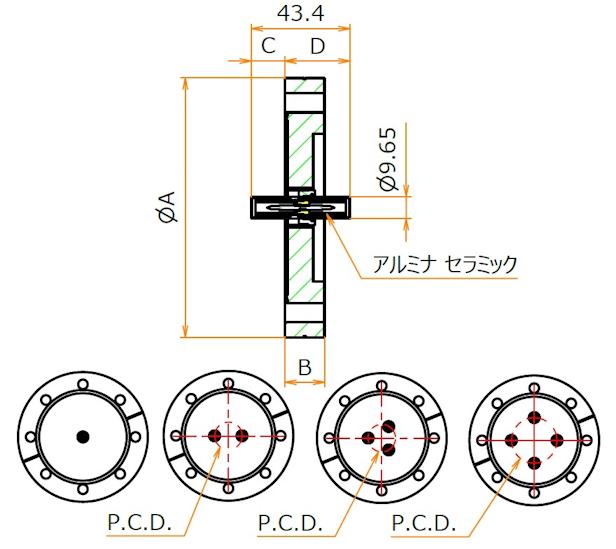

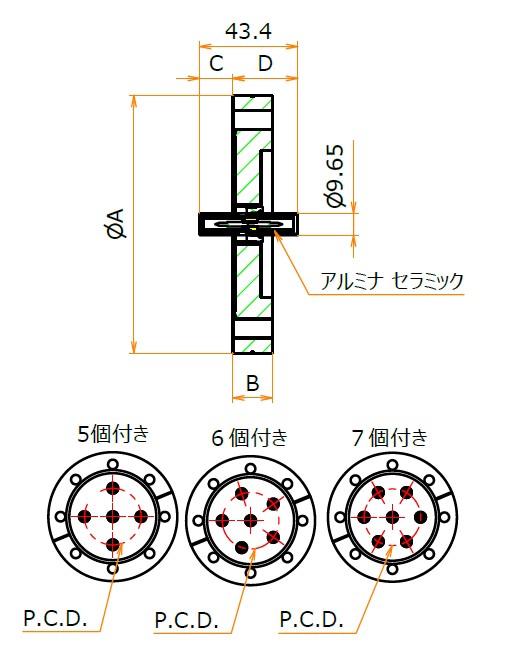

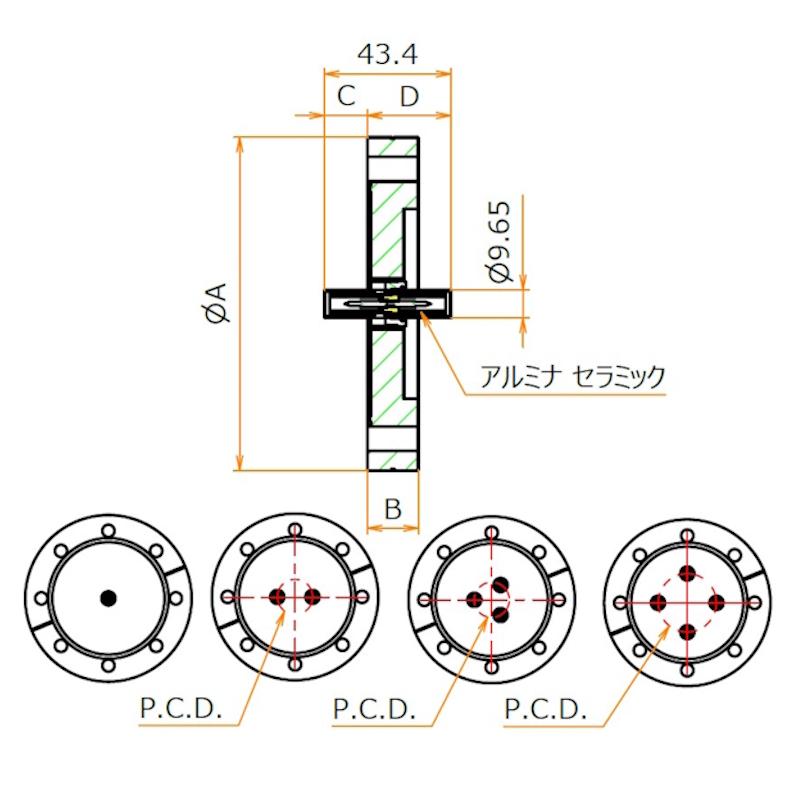

 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11666
N16SHJF1
16 - - - 30 6 5.9 37.5 - 1
11092
N25SHJF1
25 - - - 40 6 13.4 30 - 1
11175
N40SHJF1
40 - - - 55 6 13.4 30 - 1
11176
N40SHJF2
40 - - - 55 6 13.4 30 20 2
18593
N50SHJF3
50 - - - 75 6 13.4 30 28 3
11221
N50SHJF4
50 - - - 75 6 13.4 30 28 4
10439
C34SHJF1
- 34 - - 34 7.5 2.7 40.7 - 1
10721
C70SHJF1
- 70 - - 70 12.7 13.9 29.5 - 1
10723
C70SHJF2
- 70 - - 70 12.7 13.9 29.5 20 2
18594
C114SHJF3
- 114 - - 114 17.5 13.9 29.5 30 3
18595
C114SHJF4
- 114 - - 114 17.5 13.9 29.5 30 4
10802
F20SHJF1
- - 20 - 80 8 15.9 27.5 - 1
11667
F25SHJF1
- - 25 - 90 8 15.9 27.5 - 1
12849
F25SHJF2
- - 25 - 90 8 15.9 27.5 20 2
11668
F40SHJF1
- - 40 - 105 10 15.9 27.5 - 1
11669
F40SHJF2
- - 40 - 105 10 15.9 27.5 20 2
12850
F40SHJF3
- - 40 - 105 10 15.9 27.5 25 3
12851
F40SHJF4
- - 40 - 105 10 15.9 27.5 30 4
11670
G20SHJF1
- - - 20 80 8 15.9 27.5 - 1
11671
G25SHJF1
- - - 25 90 8 15.9 27.5 - 1
12852
G25SHJF2
- - - 25 90 8 15.9 27.5 20 2
11672
G40SHJF1
- - - 40 105 10 15.9 27.5 - 1
11673
G40SHJF2
- - - 40 105 10 15.9 27.5 20 2
12853
G40SHJF3
- - - 40 105 10 15.9 27.5 25 3
12854
G40SHJF4
- - - 40 105 10 15.9 27.5 30 4
NW/KF ICF VF VG A B C D P.C.D The number of electrode
To detail page Contact Us

Filter by model

stock status

Flange

The number of electrode

フィードスルー 同軸 SHV-JJ-F フローティングシールド 両側プラグ嵌合 admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-JJ/SHV-JJ-F
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-JJ/SHV-JJ-F
Product code :15772
Model:VCK1000X/SHP
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
For connecting parts atmosphere side plug SHV
For connecting parts atmosphere side plug SHV
Product code :10002
Model:ASP-SHV
Connection parts air-side cable SHV for RG-59/U L = 1000
Connection parts air-side cable SHV for RG-59/U L = 1000
Product code :14449
Model:ACV1000SH/XX
