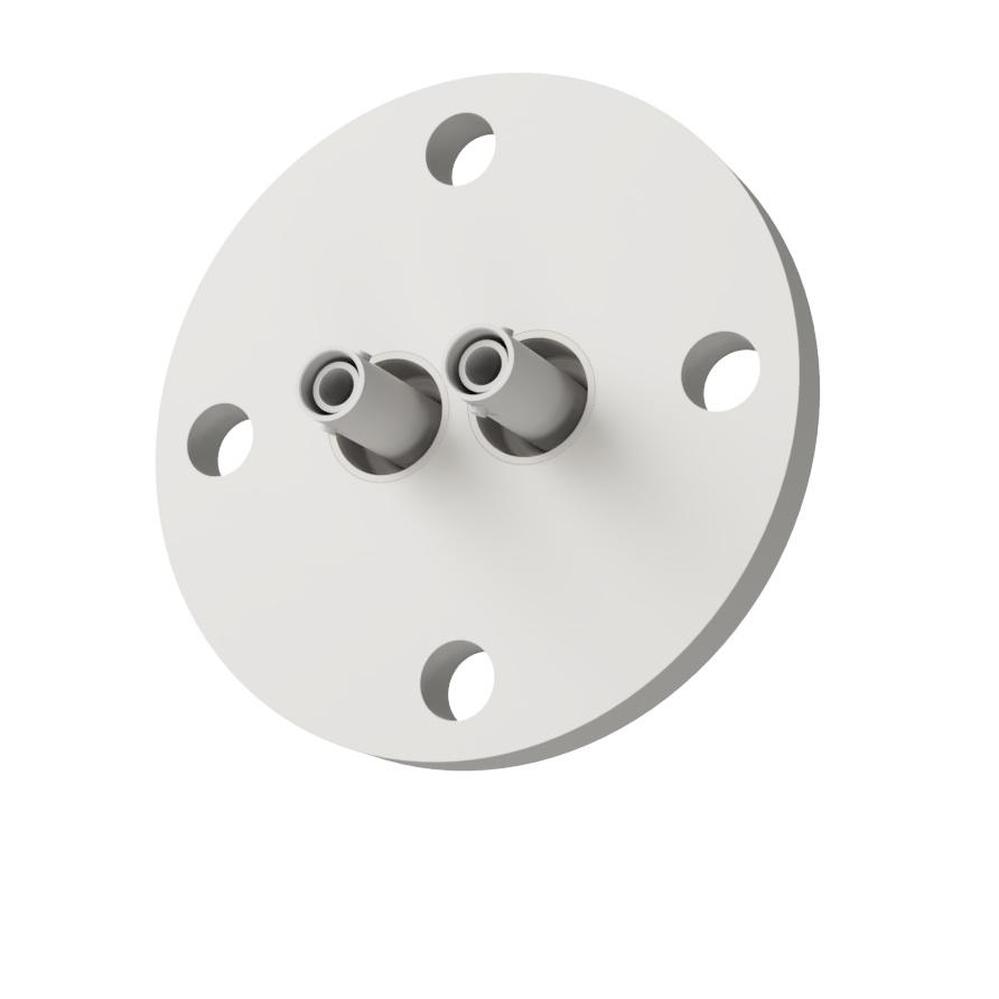

Coaxial SHV-JJ-F with 2 pcs VF25 flange

同軸 SHV-JJ-F 2個付き VF25 フランジ

Mouse over the image to enlarge it

同軸 SHV-JJ-F 2個付き VF25 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :12849 Model:F25SHJF2

Safe High Voltage
▼ Feedthrough Coaxial SHV Floating Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
SHV connector connection on both vacuum and atmospheric side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shielded single-sided plug mating (5kV, 10kV, 20kV)
Floating shield plug mating on one side (5kV)
Ground shield plug mating on both sides (5kV)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

Basic Information
type SHV
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
139,000 JPY (with tax 152,900JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12849
F25SHJF2
- - 25 - 90 8 15.9 27.5 20 2
When out of stock
30 Business Days
139,000JPY (with tax 152,900JPY)
同軸 SHV-JJ-F 2個付き VF25 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 25 - 90 8 15.9 27.5 20 2
Coaxial SHV-JJ-F with 2 pcs VF25 flange
Product code :12849    Model:F25SHJF2
139,000JPY (with tax 152,900JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 SHV-JJ-F 2個付き VF25 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-JJ/SHV-JJ-F
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-JJ/SHV-JJ-F
Product code :15772
Model:VCK1000X/SHP
42,400JPY (with tax 46,640JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
For connecting parts atmosphere side plug SHV
For connecting parts atmosphere side plug SHV
Product code :10002
Model:ASP-SHV
3,900JPY (with tax 4,290JPY)
Connection parts air-side cable SHV for RG-59/U L = 1000
Connection parts air-side cable SHV for RG-59/U L = 1000
Product code :14449
Model:ACV1000SH/XX
500JPY (with tax 550JPY)
