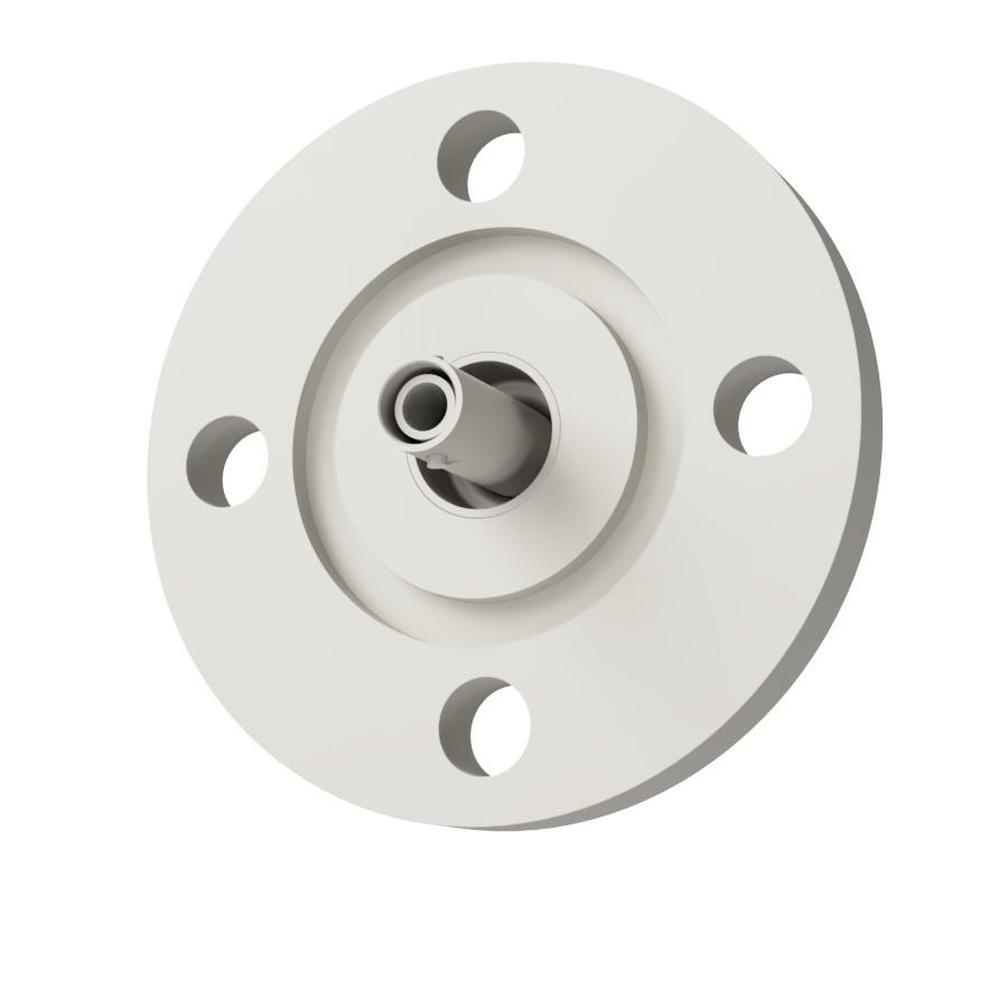

Coaxial SHV-JJ-F with 1 piece VG20 flange

同軸 SHV-JJ-F 1個付き VG20 フランジ

Mouse over the image to enlarge it

同軸 SHV-JJ-F 1個付き VG20 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11670 Model:G20SHJF1

Safe High Voltage
▼ Feedthrough Coaxial SHV Floating Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
SHV connector connection on both vacuum and atmospheric side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shielded single-sided plug mating (5kV, 10kV, 20kV)
Floating shield plug mating on one side (5kV)
Ground shield plug mating on both sides (5kV)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of various types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

Basic Information
type SHV
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
71,800 JPY (with tax 78,980JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11670
G20SHJF1
- - - 20 80 8 15.9 27.5 - 1
When out of stock
30 Business Days
71,800JPY (with tax 78,980JPY)
同軸 SHV-JJ-F 1個付き VG20 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 20 80 8 15.9 27.5 - 1
Coaxial SHV-JJ-F with 1 piece VG20 flange
Product code :11670    Model:G20SHJF1
71,800JPY (with tax 78,980JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 SHV-JJ-F 1個付き VG20 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
