Vacuum Components center ring Product List Vacuum Component
Products 30Matter (21 ~30 )
- Displayed results
- Display switching
-
Product code :27034
Model:ISO63CRSVM70▼ISO Center Ring with Mesh
For ISO-K and ISO-F flanges
One-touch connection with inner ring guide
Mesh type to prevent foreign material contamination
Mesh size: #70
▼The following types are standardized (List)
Compatible flanges (ISO): 63, 80, 100, 160
Guide material: SUS
O-ring material: Viton
▼ISO flange fitting
ISO-K: Claw clamping (Products list)
ISO-F: Bolt fastening (Products List)
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
For precision cleaning requests, please click here.The inner ring SUS 304 Seal / gasket material Viton ® Maximum temperature 150℃ The lowest temperature -20℃ RoHS2 corresponding ○ D 3.9 C 8 B 62 A 70 Mesh size #70(Wire diameter:0.14, Cleara ISO-K 63 -
Product code :27035

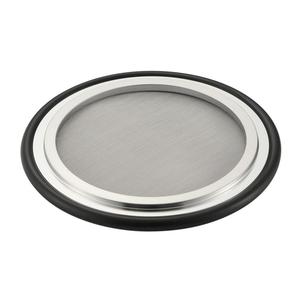

Model:ISO80CRSVM70▼ISO Center Ring with Mesh
For ISO-K and ISO-F flanges
One-touch connection with inner ring guide
Mesh type to prevent foreign material contamination
Mesh size: #70
▼The following types are standardized (List)
Compatible flanges (ISO): 63, 80, 100, 160
Guide material: SUS
O-ring material: Viton
▼ISO flange fitting
ISO-K: Claw clamping (Products list)
ISO-F: Bolt fastening (Products List)
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
For precision cleaning requests, please click here.The inner ring SUS 304 Seal / gasket material Viton ® Maximum temperature 150℃ The lowest temperature -20℃ RoHS2 corresponding ○ ISO-K 80 D 3.9 C 8 B 74 A 83 Mesh size #70(Wire diameter:0.14, Cleara -
Product code :27036
Model:ISO100CRSVM70▼ISO Center Ring with Mesh
For ISO-K and ISO-F flanges
One-touch connection with inner ring guide
Mesh type to prevent foreign material contamination
Mesh size: #70
▼The following types are standardized (List)
Compatible flanges (ISO): 63, 80, 100, 160
Guide material: SUS
O-ring material: Viton
▼ISO flange fitting
ISO-K: Claw clamping (Products list)
ISO-F: Bolt fastening (Products List)
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
For precision cleaning requests, please click here.The inner ring SUS 304 Seal / gasket material Viton ® Maximum temperature 150℃ The lowest temperature -20℃ RoHS2 corresponding ○ ISO-K 100 D 3.9 C 8.3 B 92 A 102 Mesh size #70(Wire diameter:0.14, Cleara -
Product code :27037
Model:ISO160CRSVM70▼ISO Center Ring with Mesh
For ISO-K and ISO-F flanges
One-touch connection with inner ring guide
Mesh type to prevent foreign material contamination
Mesh size: #70
▼The following types are standardized (List)
Compatible flanges (ISO): 63, 80, 100, 160
Guide material: SUS
O-ring material: Viton
▼ISO flange fitting
ISO-K: Claw clamping (Products list)
ISO-F: Bolt fastening (Products List)
▼Others
If you have any questions about our products, please feel free to contact us by clicking the "Inquiry" button.
For precision cleaning requests, please click here.The inner ring SUS 304 Seal / gasket material Viton ® Maximum temperature 150℃ The lowest temperature -20℃ RoHS2 corresponding ○ ISO-K 160 D 3.9 C 8.5 B 139.5 A 153 Mesh size #70(Wire diameter:0.14, Cleara
-
Product code :27087
Model:ISO63RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ T 5.3 B 72.4 ISO-F 63 ISO-K 63 -
Product code :27088
Model:ISO80RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ B 85.1 T 5.3 ISO-F 80 ISO-K 80 -
Product code :27089
Model:ISO100RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ T 5.3 B 104.1 ISO-F 100 ISO-K 100 -
Product code :27090
Model:ISO160RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ ISO-K 160 T 5.3 B 151.8 ISO-F 160
-
Product code :27091
Model:ISO200RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ B 215.3 T 5.3 ISO-F 200 ISO-K 200 -
Product code :27092
Model:ISO250RV▼O-ring Viton® for ISO-K and ISO-F flanges
For ISO-K and ISO-F flanges
Replacement O-ring for Center Ring for ISO Flange.
Compatible flanges (ISO): 63, 80, 100, 160, 200, 250
Others
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.O-ring Viton ® RoHS2 corresponding ○ T 5.3 B 266.1 ISO-F 250 ISO-K 250
