- K thermocouple OMEGA ™ type
- K thermocouple OMEGA™ 1 pair VG20 flange

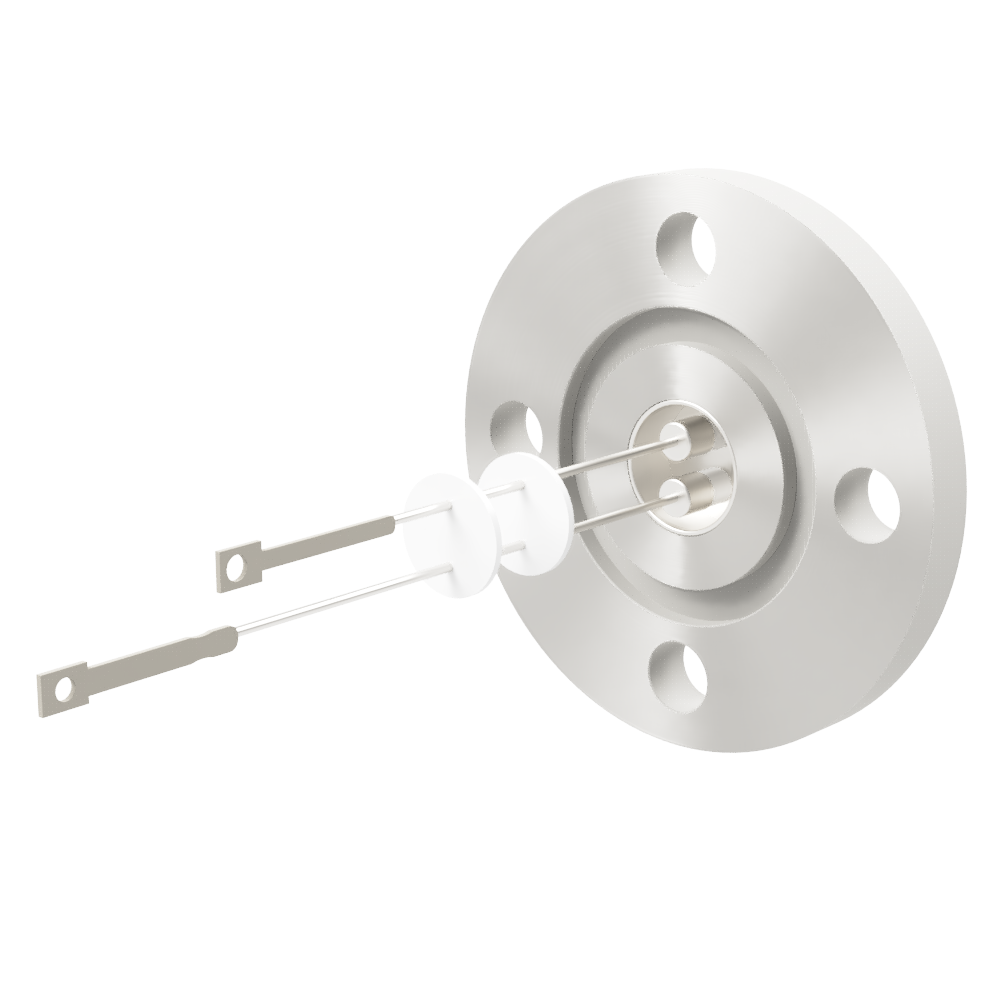

K thermocouple OMEGA™ 1 pair VG20 flange
▼Thermocouple K type OMEGA™ (Atmospheric side is connected to OMEGA's small connector)
Atmospheric side connected with OMEGA™ small connector
K type for temperature measurement (Chromel®Almel®)
▼The following types are standardized (List)
Pairs: 1, 2, 3, 4, 5
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Wide lineup of thermocouples with OMEGA™ connectors
C type/E Type/J Type/N Type/R/S Type
We also offer vacuum/atmosphere side connection parts and assembly services
※This product comes with a bolt and nut for connecting the thermocouple wire to the electrode on the vacuum side.
▼ Custom-made products are also available.
We can also provide multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| type | OMEGA ™ thermocouple type K |
| Total current/1 terminal | Milli |
| Withstand voltage: DC | Milli |
| Connection type | OMEGA™ |
| electrode | Chromel ® / alumel ® |
| Flange material | SUS 304 |
| sleeve | SUS 304 |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -100℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
front.product.product_code Model |
NW/KF | ICF | VF | VG | A | B | C | D | E | Pairs of Thermocouple | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | - | 20 | 80 | 8 | 86 | 35 | 111 | 1 | |||
| NW/KF | ICF | VF | VG | A | B | C | D | E | Pairs of Thermocouple |
|---|---|---|---|---|---|---|---|---|---|
| - | - | - | 20 | 80 | 8 | 86 | 35 | 111 | 1 |
